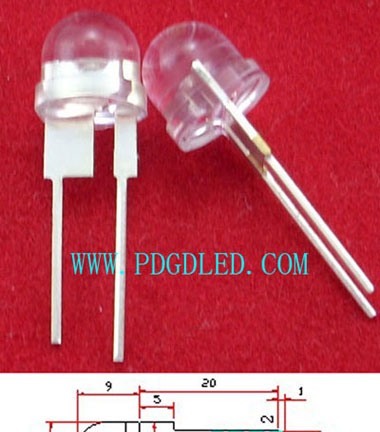

供应0.5W超大功率发射管,波长940,角度45,直径5mm
| 价 格： | 面议 | |
| 型号/规格： | EL582445 | |
| 品牌/商标： | PDGD | |
| 封装形式： | DIP | |
| 环保类别： | 无铅环保型 | |
| 安装方式： | 直插式 | |
| 包装方式： | 静电袋包装 | |
| 功率特性： | 超大功率 | |
| 频率特性： | | |
| 整流电流： | 200mA | |
| 反向击穿电流： | |
|
Model No：EL582445 | ||||||
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Test Condition |
|
Radiant Intensity |
Ee |
1200 |
1500 |
----- |
mw/sr |
IF=150mA |
|
Viewing Angle |
2θ1/2 |
---- |
45 |
----- |
Deg |
|
|
Peak Emission Wavelength |
λp |
---- |
940 |
---- |
nm |
IF=150mA |
|
Spectral Line Half-Width |
Δλ |
---- |
50 |
---- |
nm |
IF=150mA |
|
Forward Voltage |
VF |
1.2 |
--- |
1.5 |
V |
IF=150mA |
|
Reverse Current |
IR |
---- |
---- |
10 |
μA |
VR=5V |
|
Power Dissipation at(or below) 25℃ free air temperature |
PD |
|
|
0.5 |
W |
|
|
Peak Forward Current |
IFP |
|
|
200 |
mA |
|
|
Continuous Forward Current |
IF |
|
|
150 |
mA |
|
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 肖萍
- 电话：0755-36934623
- 传真：0755-2870701551
- 手机：15920072960
- QQ ：
供应0.5W超大功率发射管,波长940,角度90,直径8mm
信息内容：Model No：EL892490 Parameter Symbol Min. Typ. Max. Unit Test Condition Radiant Intensity Ee 1200 1500 ----- mw/sr IF=150mA Viewing Angle 2θ1/2 ---- 90 ----- Deg Peak Emission Wavelength λp ---- 940 ---- nm IF=150mA Spectral Line Half-Width Δλ ---- 50 ---- nm IF=150mA Forward Voltage VF 1.2 --- 1.5 V IF=150mA Reverse Current IR ---- ---- 10 μA VR=5V Power Dissipation at(or below) 25℃ free air temperature PD 0.5 W Peak Forward Current IFP 200 mA Continuous Forward Current IF 150 mA
供应0.5W超大功率发射管,波长850,角度60,直径5mm
信息内容：Model No：IR582460 Parameter Symbol Min. Typ. Max. Unit Test Condition Radiant Intensity Ee 1100 1200 ----- Mw/sr IF=200mA Viewing Angle 2θ1/2 ---- 60 ----- Deg Peak Emission Wavelength λp ---- 850 ---- nm IF=200mA Spectral Line Half-Width Δλ ---- 50 ---- nm IF=200mA Forward Voltage VF 1.5 --- 1.7 V IF=200mA Reverse Current IR ---- ---- 10 μA VR=5V Power Dissipation at(or below) 25℃ free air temperature PD 0.5 W Peak Forward Current IFP 250 mA Continuous Forward Current IF 150 mA
