氧气分析用单模激光二极管MLD-760-10S
| 价 格： | 42.00 |
品牌:MCSENSORS 型号:MLD-760-10S 种类:激光头 波段范围:近红外 运转方式:调式 激励方式:电激励式 工作物质:固体 光路径:反射型外光路 输出形式:功率型 传输信号:单电源型 速度:高速 通道:单通道 输出波长:760（nm） 线宽:1（mm）
Single mode laser diode, 10mW @ 760nm, MLD-760-10S
- Single transverse mode Fabry Perot (FP) laser.
- CW or pulsed operation, 0.5ns rise time.
- Low threshold current and high slope efficiency
- Operating temperature range -40oC to +40oC.
- Wavelength/temperature coefficient 0.2nm/oC
- Built-in monitor photodiode
| SPECIFICATIONS |
| dzsc/18/2032/18203263.jpg |
| SPECTRUM |
| dzsc/18/2032/18203263.jpg |
- 所属城市：江苏 南京
- [联系时请说明来自维库仪器仪表网]
- 联系人： 张德权
- 电话：25-68551045
- 传真：25-68551045
- 手机：
- QQ ：
俄罗斯中红外光电探测器PD24-03-PR
信息内容：品牌:LED MICROSENSOR 型号:PD24-03-PR 种类:光学 材料:金属 材料物理性质:半导体 材料晶体结构:单晶 制作工艺:集成 输出信号:模拟型 防护等级:1 线性度:1（%F.S.） 迟滞:1（%F.S.） 重复性:1（%F.S.） 灵敏度:1 漂移:1 分辨率:1超级中红外光电探测器PD24系列按芯片尺寸大小有以下型号PD24-03PD24-05PD24-10PD24-20PD24-03-PRPD24-05-PRPD24-10-PRPD24-03-TECPD24-05-TECPD24-20-TECPD24-03-TEC-PRPD24-05-TEC-PR dzsc/18/2060/18206008.jpg•Photodiodes PD24-03 are designed for detecting the radiation in the MiddleInfrared spectral range from 800 to 2400 nm. Heterostructures with the InGaAsSbactive layer and the AlGaAsSb "window" are grown on GaSb substrates.•Photodiodes PD24-03 are mounted in standard 5.4 mm package TO-18. They havethe photosensitive area with diameter of 300 mm. Fast response makes possibletheir use for the detection of high frequency modulated laser or LED emission.•Related products: PD24-03 can be used in optical pair with our LED16÷LED23and LD200÷LD230. We...
海曼CO2红外气体传感器HMS J21 F4.26

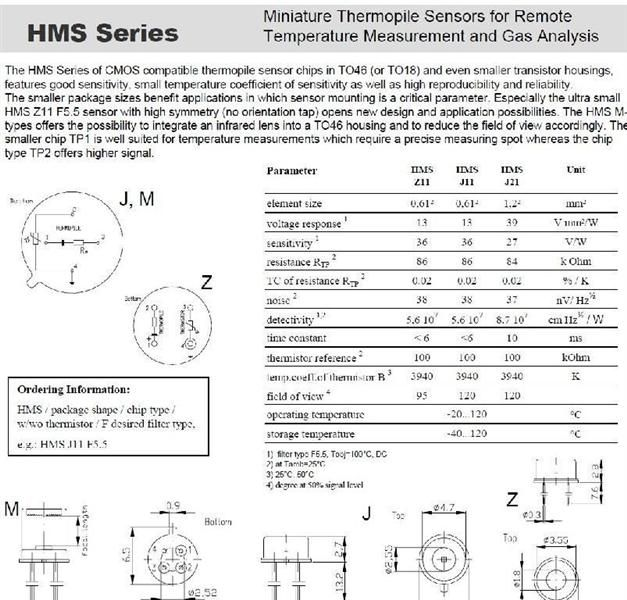

信息内容：德国HEIMANN热电堆单通道，气体探测器HMS J21系列单通道气体分析热电堆探测器，可测量CO2，CO，HC，CH4等气体。主要技术参数:探测率:8.7*107cmHz1/2/W时间常数:10ms尺寸：TO18 或者TO46 dzsc/18/9340/18934006.jpgThe HMS Series of CMOS compatible thermopile sensor chips in TO46 (or TO18) and even smaller transistor housings,features good sensitivity, small temperature coefficient of sensitivity as well as high reproducibility and reliability.The smaller package sizes benefit applications in which sensor mounting is a critical parameter. Especially the ultra smallHMS Z11 F5.5 sensor with high symmetry (no orientation tap) opens new design and application possibilities. The HMS Mtypesoffers the possibility to integrate an infrared lens into a TO46 housing and to reduce the field of view accordingly. Thesmaller chip TP1 is well suited for temperature measurements which require a precise measuring spot whereas the chiptype TP2 offers higher signal. The HMS Series of CMOS compatible thermopile sensor ...
