供应功得CONQUER SET 2.6mmx6.1mm 贴片保险丝
| 价 格： | 面议 | |
| 型号/规格： | SET | |
| 品牌/商标： | 功得CONQUER |
CONQUER Surface Mount Fuse 表面接著保險絲
dzsc/18/1998/18199854.jpg
|
產品說明資訊(Product Description Information) | |
| 產品特色 | 超精密中空陶瓷積體的設計 體積小，額定電流 62mA~15A 額定電壓 125Vac/dc 高突波承受能力 對熱衝擊和機械衝擊有很強的承受能力 高可靠性和穩定的焊錫性,兩端銅帽可以選擇鍍金或鍍銀. 元件符合RoHS要求 -55℃至+125℃工作溫度範圍 本司之SET、SEF等系列產品，使用於此產品之材料中， 使用高溫熔化型之焊錫，此焊錫成份中鉛含量大於85％， 故此產品符合RoHS指令(2002/95/EC)要求之焊錫含鉛量超過85%之排除條款規範。 |
| Features | A hollow precise ceramic tube design Small volume ,current rating from 62mA to 15A. Voltage rating 125Vac/dc. Excellent inrush current withstanding capability Excellent withstand capacity for thermal and mechanic shock High reliability and stable solderability, 2 terminal caps can choice plating gold or silver. Meet RoHS Requirement Operating temperature range: -55oC to +125oC Our SET、SEF series products, because the materials used in these fuses include high melting temperature type solder and this solder contains more than 85% lead (Pb), so these products can conform to the exempts of the requirements of RoHS Directive (2002/95/EC) |
| 安裝方式 | 貼片 |
| Installation | SMD |
- 所属城市：广东 东莞
- [联系时请说明来自维库仪器仪表网]
- 联系人： una
- 电话：0769-85302189
- 传真：-
- 手机：15999744209
- QQ ：
供应力特LITTELFUSE1206L0.5A13.2V自恢复贴片保险丝
信息内容：1206L Series - Lead-Free Surface Mount Resettable PPTC The 1206L series device provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.Features RoHS compliant and lead-free Fast response to fault currents Compact design saves board space Low resistance Low-profile Compatible with high temperature solders

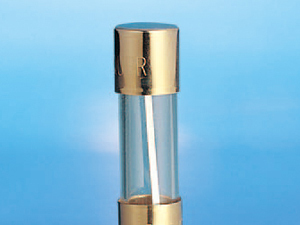

供应功得CONQUER AUE 管状电流保险丝
信息内容：dzsc/18/2012/18201203.jpg CONQUER Electronic Fuse 電流保險絲 產品說明資訊(Product Description Information) 產品特色 汽車用保險絲產品規格豐富: 有插片固定式，螺栓固定式 、卡銷固定式、魚雷型固定式等。額定電流 : 10mA ~ 60A 額定電壓 32Vdc高突波承受能力對熱衝擊和機械衝擊有很強的承受能力工作溫度範圍 -55℃~125℃ Features Automotive FuseMany kinds of automotive fuse. Current rating:10mA~60A. Voltage rating:32VdcExcellent inrush current withstanding capabilityExcellent withstand capacity for thermal and mechanic shockOperating temperature range: -55℃ to +125℃ 安裝方式 插件 Installation DIP
