供应500耐高温端子台(图)
| 价 格： | 面议 |
品牌:openwise 型号:500 应用范围:电源 种类:端子台/接线柱(头) 接口类型:DC/DC 形状:条形 制作工艺:注塑 特性:防火 接触件材质:铜 绝缘体材质:PA 芯数:12 针数:12 线长:4（mm）
| 品牌：OPENWISE型号：230,500,830,900 |
| Connectors | with/without wire protector high-temperature resistant* | dzsc/18/1960/18196051.jpg |
| dzsc/18/1960/18196051.jpg |
|
| Type number | 230/230WP 230TH 230WPTH | 500/500WP 500TH 500WPTH | 830/830WP | 900 | |
| TechnicalData | |||||
| Housing | fire retardant high temp. | fire retardant high temp. | fire retardant high temp. | fire retardant high temp. | |
| thermoplastic 94V-2 grade | thermoplastic 94V-2 grade | thermoplastic 94V-2 grade | thermoplastic 94V-2 grade | ||
| Insert | brass, nickel plated | brass, nickel plated | brass, nickel plated | brass, nickel plated | |
| zinc plated steel | zinc plated steel | zinc plated steel | zinc plated steel | ||
| Screw | blue chromated | blue chromated | blue chromated | blue chromated | |
| Temperature | |||||
| working | -40°C to 100°C | -40°C to 100°C | -40°C to 100°C | -40°C to 100°C | |
| short time | 140°C | 140°C | 140°C | 140°C | |
| Voltage (V) | 450 | 450 | 500 | 500 | |
| Ampere (A) | 17.5 | 24 | 41 | 57 | |
| Cross Section(mm2) | 2.5 | 4 | 6 | 10 | |
| AWG | 14 | 12 | 10 | 8 | |
| Dimension (mm) | |||||
| a) Length | 93.5 | 116.5 | 139.5 | 158 | |
| b) Height | 15.5 | 16.5 | 19.5 | 25.3 | |
| c) Width | 17.7 | 20.0 | 23.8 | 25.5 | |
| d) Fixing hole | 2.9 | 3.5 | 3.6 | 4.3 | |
| e) Wiring hole | 2.9 | 3.45 | 4.2 | 5.0 | |
| f) Pitch | 8 | 10 | 12 | 13.5 | |
| g) Screw | M2.6x5.4 | M3x6 | M3.5x7.2 | M4x9 | |
Remarks * for high-temperature resistant types : models 230TH, 500TH, 230WPTH & 500WPTH. Packing | |||||
| Per ctn | 50x10 | 50x10 | 40x10 | 25x10 | |
| dzsc/18/1960/18196051.jpg | dzsc/18/1960/18196051.jpg |
| dzsc/18/1960/18196051.jpg | dzsc/18/1960/18196051.jpg | dzsc/18/1960/18196051.jpg | dzsc/18/1960/18196051.jpg | dzsc/18/1960/18196051.jpg | dzsc/18/1960/18196051.jpg | dzsc/18/1960/18196051.jpg | |
| dzsc/18/1960/18196051.jpg | dzsc/18/1960/18196051.jpg | dzsc/18/1960/18196051.jpg | dzsc/18/1960/18196051.jpg | dzsc/18/1960/18196051.jpg | dzsc/18/1960/18196051.jpg | dzsc/18/1960/18196051.jpg |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈曼玲
- 电话：0755-82186743
- 传真：0755-82186743
- 手机：
- QQ ：
带保险丝端子台/保险丝接线端子/电器照明端子台
信息内容：品牌:OPENWISE 型号:540 应用范围:电器照明 种类:端子台/接线柱(头) 接口类型:AC/DC 支持卡数:单卡 读卡类型:IC 形状:矩形 制作工艺:注塑 特性:阻火/阻燃 接触件材质:PA 绝缘体材质:PA 芯数:1/2/3/4/5 针数:1/2/3/4/5 线长:2.5（mm）品牌：OPENWISE型号：540 Fused Terminal - Euro-standard540 seriesdzsc/18/2437/18243723.jpgdzsc/18/2437/18243723.jpgTerminal strip with fuse-carrierDovetail for different terminal combinationsFor 5x20 mm fuseEarth-screw optionIP 20 finger protection1,2,3,4 and 5 poles availableColor -housing in grey, fuse carrier in blackTechnicalDataHousingPolyamide 6/6 94V-2 gradeInsertbrass, nickel platedWire protectorstainless steelScrewM3x6, blue chromatedEarth screwM3x14, blue chromatedVoltage / Ampere (IEC) terminal strip400V / 15A fuse carrier250V / 6.3AVoltage / Ampere (UL) terminal strip200V / 15A fuse carrier200V / 10ATemperature working-40°C to 100°C short period140°CCross section2.5mm2AWG14 Packing 540-1WP100x10 per ctn540-2WP70x10 per ctn540-3WP / 3GWP50x10 pe...

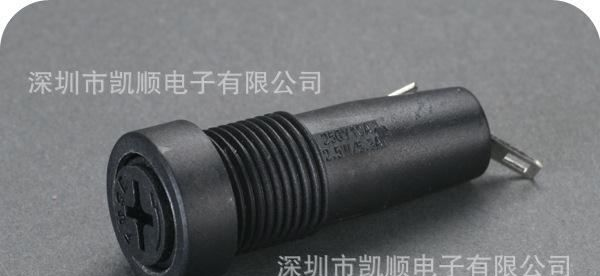

现货供应OP530保险丝座OP530（附金属螺母）保险丝座（图）
信息内容：dzsc/19/0865/19086528.jpgdzsc/19/0865/19086528.jpg保险丝座螺纹旋入或旋出面板安装低电阻、容易替换保险管OP520 适用于5X20mm保险管OP530 适用于6X30mm保险管良好接触、耐用颜色：黑色型号OP520OP530 技术数据 塑料外壳耐高温、高阻耐高温、高阻94V-0 级94V-0 级五金件铜，镀镍铜，镀镍电压/电流 (UL)250V / 10A (UL)250V / 10A电压/电流 (VDE)250V / 6.3A (VDE)250V / 10A额定功率2.5W4W温度工作时-20oC 到 120oC-20oC 到 120oC短时160oC160oC 尺寸 AM12.5x1.0 FuseHolder -Screw-In Fuse-CarrierOP520/ OP530 series
