品牌:文奥电子 型号:0.5mm PITCH 应用范围:电缆 种类:端子(terminal) 接口类型:焊接PCB及排线 支持卡数:单卡 读卡类型:SIM 形状:条形 制作工艺:焊接 特性:耐高温 耐电压 耐焊接热 接触件材质:磷铜 绝缘体材质:绝缘体 芯数:20 针数:20 线长:50-500（mm）

Number of Contact(接触件数):4-60

Contact spacing(间距):0.5mm

Current rating(额定电流):0.5A

Voltage rating(额定电压):50V DC/AC

Contact resistance(接触电阻):20mΩ MAX

lnsulation resistance(绝缘电阻):500MΩ MIN

withstanding Voltage(耐电压):500V AC(r.m.s)

Operating Temperature(工作温度):-40-85℃

材料 MATERIAL

接触件Contact: 磷青铜 镀锡Phosphor Bronze Tin-plated

焊片Solder tab: 磷青铜 镀锡Phosphor Bronze Tin-plated

塑胶本体Housing: 耐热树脂Heat resistance Plastic (UL94V-0)

锁条Slider: 耐热树脂Heat resistance plastic(UL94V-0)

包装方式 PACKAGE

编带包装Tape and Reel Package

管装 Pipe Package

袋装 Beg Package

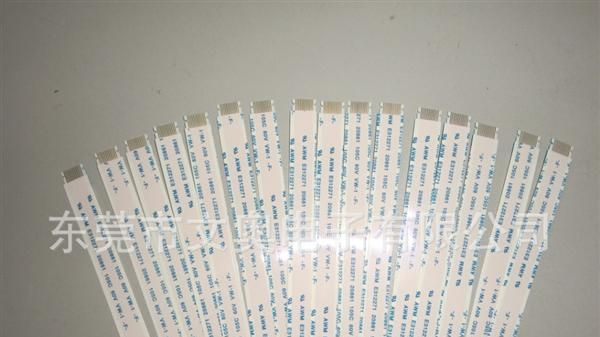

东莞市文奥电子有限公司是一家生产（FFC fpc)柔性扁平电缆线的厂家，拥有国际先进的自动化生产线及检测设备。公司在原材料的采购，生产，检测及营销过程中全面实行ISO9001;2000的质量控制体系。所有产品均已通过UL认证。本产品具有体积小，柔性好，可弯曲使用及易焊接的特点，为电子设备的小型化，可以任意选择导线数目及间距，使联线更方便，从而大大减少电子产品的体积，减生产成本，提高生产效益。 文奥全体员工本着以品质促进企业自身发展，以优质服务满足客户的要求。把先进的技术和完美的管理转化为优质的产品，优良的品质，为客户提供的服务。 公司以科技创新，服务至上，以人为本，精益求精为发展宗旨，竭诚欢迎国内外客商一起携手并进，共创辉煌！ Dongguan Veok Electronic Co.ltd is an enterprise specialized in producting Flexible Flat Cable (FFC).The company boasts the most advanced automatic production line and detection facilities .In purchase,produce,detection and marketing of the materials,we fully implement ISO9001 quality control system and our products have passed the UL Certification. The FFC is with small volume and high flexibility so that it is easy to bend and for soldering as the miniaturized electronic device. The number of the wires and the interval between them are optional,which convenience the wire connection,greatly reduce the volume of the product,cuts down the production cost and increase the production efficiency.The Veok people believe in accelerating the development of the enterprise with the good quality of our products and satisfying customers’ needs with our excellent service. We are converting our advanced technology and complete management into the high quality products,providing the best service to our customers and always try to delivery goods in time,because of which,our Company has won great reputations and developed very fast. With the development tenet of “technology innovation,service-foremost,human-basis and improvement”,our Company sincerely welcome customers all over the world to cooperate with us and achieve success with us together！
