供应2510型条形连接器(图)
| 价 格： | 888.00 |
品牌:AMP/Tyco 型号:2510 应用范围:集成电路IC 种类:FFC/FPC 接口类型:DIN(大/中/小) 支持卡数:多合一 形状:矩形 制作工艺:冷压 特性:防爆
间距2.54mm
| 主要技术特性 |
额定电压:250V（50HZ有效值） 产品型号 孔数 型号 尺寸（mm） |
- 所属城市：浙江 温州
- [联系时请说明来自维库仪器仪表网]
- 联系人： 任灵勇
- 电话：0577-62121677
- 传真：0577-62121677
- 手机：
- QQ ：

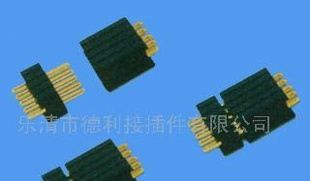

供应1.27型条形连接器
信息内容：间距1.27mm主要技术特性额定电压:125V（50HZ有效值）额定电流:1.0A接触电阻:≤0.02Ω绝缘电阻:≥1,000MΩ耐压:500V/min (AC 50HZ有效值)环境温度:-40℃∽ 105℃材料:绝缘座: PBT，接触件:黄铜,表面镀金产品型号孔数型号尺寸（mm）孔数型 号尺寸（mm）ABA B11.27-1Y(A)-1.38141.27-14Y(A)16.5117.8921.27-2Y(A)1.272.65151.27-15Y(A)17.7819.1631.27-3Y(A)2.543.92161.27-16Y(A)19.0520.4341.27-4Y(A)3.815.19171.27-17Y(A)20.3221.751.27-5Y(A)5.086.46181.27-18Y(A)21.5922.9761.27-6Y(A)6.357.73191.27-19Y(A)22.8624.2471.27-7Y(A)7.629201.27-20Y(A)24.1325.5181.27-8Y(A)8.8910.27211.27-21Y(A)25.426.7891.27-9Y(A)10.1611.54221.27-22Y(A)26.6728.05101.27-10Y(A)11.4312.81231.27-23Y(A)27.9429.32111.27-11Y(A)12.714.08241.27-24Y(A)29.3130.59121.27-12Y(A)13.9715.35251.27-25Y(A)30.4831.86131.27-13Y(A)15.2416.62

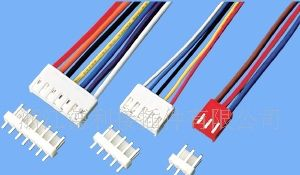

供应VH型条形连接器
信息内容：间距3.96mm主要技术特性额定电压:250V（50HZ有效值）额定电流:3A接触电阻:≤0.01Ω绝缘电阻:≥1,000MΩ耐压:1,000V/min (AC 50HZ有效值)环境温度:-25℃∽ 85℃常用线规:AWG22#∽18#材料:绝缘座:尼龙66, 插针：黄铜， 端子:磷青铜产品型号孔数型号尺寸（mm）AB2VH-2Y3.967.93VH-3Y7.9211.84VH-4Y11.8815.85VH-5Y15.8419.76VH-6Y19.8023.77VH-7Y23.7627.78VH-8Y27.7231.69VH-9Y31.6835.610VH-10Y35.6439.511VH-11Y39.6043.512VH-12Y43.5647.513VH-13Y47.5251.414VH-14Y51.4855.415VH-15Y55.4459.3孔数型 号尺寸（mm）A B2VH-2A3.967.93VH-3A7.9211.84VH-4A11.8815.85VH-5A15.8419.76VH-6A19.8023.77VH-7A23.7627.78VH-8A27.7231.69VH-9A31.6835.610VH-10A35.6439.511VH-11A39.6043.512VH-12A43.5647.513VH-13A47.5251.414VH-14A51.4855.415VH-15A55.4459.3
