供应BJX8050系列防爆防腐接线箱（ⅡC）
| 价 格： | 1.00 | |
| 型号/规格： | BJX8050 | |
| 品牌/商标： | 柯铭电器 |

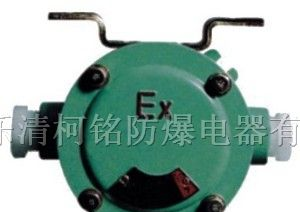

BJX8050系列防爆防腐接线箱（ⅡC）
适用范围Application
1区、2区危场所.
IIA、IIB、IIC类爆炸性气体环境
Can be used Zone 1 and Zone 2 dangerous places.
Can be used in IIA,IIB,IIC group explosive atmosphere.
型号含义Model implication
产品特点 Features
可用于380/220V及以下电路中作为连接各种电气设备的分
线、接线用，也可作为自控或通讯的信号电源的连线。
外壳采用高强度难燃工程塑料压制而成，外形美观而具有
抗静电耐冲击及热稳定性好又耐腐蚀等优良性能.
盖与壳身之间设有密封圈，并用不锈钢螺钉紧固.
接线端子可采用压线或菲尼克斯的增安型专用接线端子。
端子数出线口方向及数量,公称直径可任意变化。
符合GB3836-2000，IEC60079标准要求.
It is used to sub-connect or connect 380/220V and belows electrical circuits,and
also applicable to connect supply wire of self-control engineering or
communicaton’s signals.
The shell is made of high rigid,flame-proof engineering plastic with beautiful
appearance,functions of electrostatic-resistant,impulsion-withstanding,
thermal stability and corrosion-proofing.etc.
Between cover and shell body is arranged seal washer fastened by stainless screw.
Terminal can be selected for line pressed type of pheonix’s special terminal of safety-increased type.
Terminal number,dirction,nominal diameter may be changable.
Suitable for GB3836-2000,IEC60079 standard request.
主要技术参数 Main technical parameters
额定电压（Ｖ）
Ratedvoltage
额定电流（A）
Rated current 防护等级
Protection grade 防爆标志
Ex-mark 防腐等级
Corrosion-proof category
380 20 IP65 Exe II T6 WF2
产品外形图 Outline example
通头为复合密封式的接线箱.The junction box with compound-sealed outlet.
通头为普通式的常见接线箱形式，为方便选型可直接标注代号，如CBJX8060-20/4a
The junction box with ordingry outlet,in order to select type conveniently which can specify the code,such as:CBJX8060-20/4a
产品方案布置Arranging of product’s project
方案布置图
Project’s diagram
通头规格
Outletspecification 端子数
Maximum number of
terminal 方案布置图
Project’s diagram 通头规格
Outletspecification 端子数
Maximum number of
terminal
4个G3/4" 6 x 2.5mm 6个G3/4"
1个G1" 6 X 2.5mm
11个G3/4"
1个G1 1/2"
可根据要求另配，敬请提供简图
Installingothers
accordingto different requests,
please provide diagram. 26 x 2.5mm 15个G3/4"
2个G1 1/2"
可根据要求另配，敬请提供简图
Install ingothers according to differentrequests, plaease provide diageram. 80 x 2.5mm
