供应MSE-HMD85数字式热金属检测器（英文资料）
| 价 格： | 面议 | |
| 型号/规格： | MSE-HMD85 | |
| 品牌/商标： | MSE |

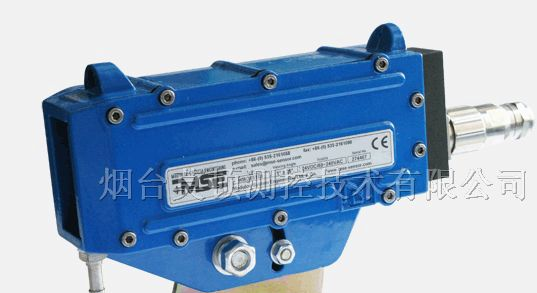

The MSE-HMD85 is a fully digital "All-in One"Hot Metal Detectoer uniquely incorporating a bar display showing the %IR input sinal relative to the pre-set threshold as well as programmable thresholds and reponse times via simple programming switch action. this and the univerial connection format means it provides the user with one universal Dector that can be used throughout the mill. The MSE-HMD85 is the econmical choice. Now there is no need to stock varius Dectors for each for each location. Costly mulitiple inventory can be replaced by one Detector.
The MSE-HMD85 Hot Metal Dector is a robust sensor activated by the infraa-red radiating from the hot product. Impervious to water or steam it is bulit to withstand the harshest of the enviroments. The product is detected via a highly stable In GaAs Photodiode to ensure detection regardless of heavy water and steam and incorporates filtering that removes the visiblespectrum to minimize sensitivity ti extraneous light. The precise 1 degree*25 degree lens ensure accurate detection of strip and accommodates bar bounce.
This Detector is especially suitable where ambient temperatures are subject to large changes. In standard format, a large air cooled chamber vents via deflector in front of the lens to allow the use of non-instrument air and provides air purging. Alternatively, an optional seeled loop water coolant radiator accommodates tap pressure ans a separate air purge inlet may be provided.
- 所属城市：山东 烟台
- [联系时请说明来自维库仪器仪表网]
- 联系人： 刘先生
- 电话：0535-2161086/060
- 传真：0535-2161090
- 手机：18953569688
- QQ ：
供应MSE-RT10冷热金属检测器（英文资料）
信息内容：The MSE-RT10/20 Retro-Reflect Laser Barrier operates over a range of greater than 20 meters(65.6FT) enabling precise detection of hot or cold produc in difficult areas. The MSE-RT10/20 Retro-Reflect Laser Barrier is a robust sensor especially suited for precise detection and measurement of narrow profile product. Utilizing modulated laser beam with IR flitering enables precise detection of both cold and hot product. Straughtforward alignment is easily accomplished via the visble red Class II laser beam. Continuous self-check facility with LED indication of reflector contamination or poor sonal return. The MSE-RT10/20 is supplied with an 8A/250VAC SPNO/SPNC Form C output relay, and NPN&PNP 500mA transistor output. The MSE-RT10/20 aluminum housing is supplied with bulit-in air colant chamber venting as air purge. Standard operating temperature without air cooling is 40 degree and with air cooling is 60 degree. Optional water cooling is available for an operating temperature u...
供应MSE-RT10 冷热金属检测器
信息内容：MSE-RT10 冷热金属检测器使用经过调制的激光束和红外滤光技术实现对冷热产品的高精度检测，可在大于20米的工作范围内对复杂环境下的冷热物体进行高精度检测。 MSE-RT10 冷热金属检测器性能优良，特别适用于高精度测量外形狭长的产品，仪表安装调试非常简单。仪表具有连续自测试功能，可以检测出透镜的清洁程度和返回激光信号的好坏。 MSE-RT10 冷热金属检测器有一组C型继电器输出驱动能力为8A/250VAC，还具有NPN & PNP晶体管输出，驱动能力为500mA. MSE-RT10 冷热金属检测器采用铸铝外壳，进入到气冷腔内的压缩空气，既可以为仪表冷却又可以实现对激光光路的空气吹扫。采用水冷时，环境温度可达70°C - 80°C。为适应90°C-500°C的高温，LT200M配备了几款特制反射镜。同时也可选择带有空气吹扫或气冷的反射镜。
