FFC/FPC扁平电缆连接器1.0 4-40P
| 价 格： | 3.00 |
品牌:国产 型号:1.0L-nPT 应用范围:PCB 种类:FFC/FPC 接口类型:ZIF
dzsc/18/1097/18109733.jpg
- 所属城市：广东 广州
- [联系时请说明来自维库仪器仪表网]
- 联系人： 周旭光
- 电话：020-81843766
- 传真：020-81843766
- 手机：
- QQ ：
供应RJ45网络插座 单体或多联

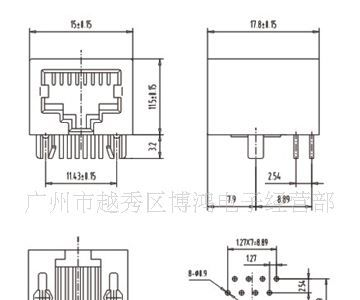

信息内容：供应RJ45网络插座，单体或多联！详细参数及规格图见如下： MATERIAL 1.HOUSING MATERIAL :GLASS FILLED PLYESTER UL94V-0 PBT、NYLON2.HOUSING COLOR :BLACK OR OTHERS3.CONTACT MATERIAL :PHOSPHOR BRONZE φ0.46mm4.PLATING :GOLD PLATING OVER NICKEL.GOLD PLATING THICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u"5.SHIELD :0.23 THICKNESS BRASS WITH NICKEL PLATED SPECIFICTIONS ELECTRICAL1.VOLTAGE RATING :125 VAC RMS.2.CURRENT RATING :1.5AMP.3.CONTACT RESISTANCE :30 MILLINHMS MAX.4.INSULATION RESISTANCE :500 MEGOHMS MIN @500 VDC5.DIELECTRIC WITHSTANDING RESISTANCE :1000 VAC RMS. 50Hz 1MINUTEMECHANICAL1.DURABILITY :750 CYCLES MIN2.PCB RETENTION PRE-SOLDER :1 LB MINENVIRONMENTAL1.STORAGE :-40℃~80℃2.OPERATION :0℃~70℃ dzsc/18/8928/18892823.jpgZP56BOX-11X00XXX dzsc/18/8928/18892823.jpgZP56BOX-12X01XXXdzsc/18/8928/18892823.jpgZP56BOX-21XX0XXXdzsc/18...
供应RJ45网络座 单体或联体

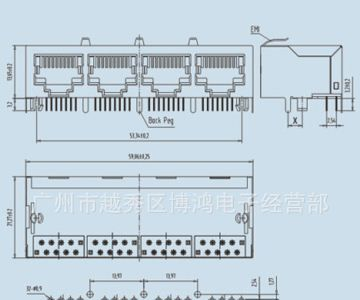

信息内容：供应RJ45网络座参数 MATERIAL 1.HOUSING MATERIAL :GLASS FILLED PLYESTER UL94V-0 PBT、NYLON2.HOUSING COLOR :BLACK OR OTHERS3.CONTACT MATERIAL :PHOSPHOR BRONZE φ0.46mm4.PLATING :GOLD PLATING OVER NICKEL.GOLD PLATING THICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u"5.SHIELD :0.23 THICKNESS BRASS WITH NICKEL PLATED SPECIFICTIONS ELECTRICAL1.VOLTAGE RATING :125 VAC RMS.2.CURRENT RATING :1.5AMP.3.CONTACT RESISTANCE :30 MILLINHMS MAX.4.INSULATION RESISTANCE :500 MEGOHMS MIN @500 VDC5.DIELECTRIC WITHSTANDING RESISTANCE :1000 VAC RMS. 50Hz 1MINUTEMECHANICAL1.DURABILITY :750 CYCLES MIN2.PCB RETENTION PRE-SOLDER :1 LB MINENVIRONMENTAL1.STORAGE :-40℃~80℃2.OPERATION :0℃~70℃ dzsc/18/9009/18900943.jpgdzsc/18/9009/18900943.jpgdzsc/18/9009/18900943.jpgdzsc/18/9009/18900943.jpgdzsc/18/9009/18900943.jpgdzsc/18/9009/18900943.jpgdzsc/18/9009/18...
