供应12.8M 16M 19.2M 26M 32M 3225温补晶振NDK代理
| 价 格： | 面议 | |
| 型号/规格： | NT3225SA | |
| 品牌/商标： | NDK | |
| 环保类别： | 无铅环保型 | |
| 安装方式： | 贴片式 | |
| 主要用途： | |
Features
- Supports low power supply voltage. (Supports DC +2.4 V±0.1 V to +3.4 V±5 %.)
- Ultra-compact and light with a height, cubic volume, and weight of Max. 1.0 mm, 0.007 cm3, and 0.024g, respectively.
- With an AFC (Automatic Frequency Control) function.
- Low power consumption.
- A surface-mount crystal oscillator. (Reflow soldering is possible.)
- Lead-free. Meets the requirements for re-flow profiling using lead-free solder.
dzsc/18/0334/18033431.jpg
- dzsc/18/0334/18033431.gif
- dzsc/18/0334/18033431.gif
Specifications

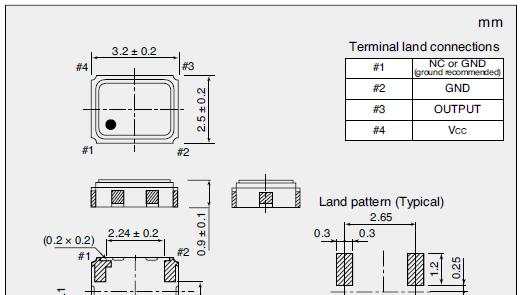

Dimensions
dzsc/18/0334/18033431.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 袁野
- 电话：0755-62352200
- 传真：0755-83777332
- 手机：15986803377
- QQ ：
供应NDK系列晶振
信息内容：手机 / CDMA / 无线通讯 / 移动通信：NX2520SA 19.2~54 MHZ NX4025DA 12~32 MHZNT2520SA 13~27.456 MHZ NX5032SA 12~40 MHZNX3225SA 16~54 MHZ NT5032SC 12.6~26 MHZNT3225SA 10~27.456 MHZ NX6035SA 9.8~40 MHZ 基站 / 固定通信：7311D 600~780 MHZ 5921A 10~20 MHZ7311E 600~780 MHZ 5936L 10~22 MHZ7311F 100~185 MHZ 9325D 100 MHZ7311Q 622.08~669.3266 MHZ 9740C-BDE01 10 MHZ7311S 62.5~350 MHZ 9740C-CDE01 5 MHZ7314A-ASV 25~52 MHZ NV5032SA 52 MHZ7314A-GSV 2~25 MHZ NV7050SA 2.048~170 MHZ 70~185 MHZ： NV13M08YF NV13M08YJ10~25 MHZ： 5920A 5925A 5930D2~100 MHZ： NV13M08YD NV13M08YE NV13M08YG NV13M08YH10~40 MHZ： NH25M22WA NH37M28LA NH37M28LB10~20 MHZ： NH25M22WB NH25M22WC NH26M26LA NH26M26LB NH21M13LB10~38.88MHZ： NH20M20LA NH25M22WD NH25M22WE NH21M13LA 汽车电子/ TPMS：NX1225GB 3.5～25 MHZ NX5032SD 9.75~40 MHZNX3225SA 12~40 MHZ NX8045GB 4~40 MHZNX3225SC 9.84375~40 MHZ NX8045GD 5-40 MHZNX5032GA 8~40 MHZ 4~25 MHZ： AT-51 AT-51AD A-51CD AT-51CD2 蓝牙 / 短距离无线 / 对讲机：NX1255GC 7.3728 M...
供应12.8M 3225 温补晶振
信息内容：Nominal frequency (MHz) 10 to 26Please click above Frequency Range(link) to go to NDK's STandard frequencies and Ordering Codes page. Package Size (L×W×H : mm) 3.2×2.5×1.0 Supply Voltage (V) +3.0 Load Impedance 10 kΩ//10 pF Operating Temperature Range(*1) / Storage Temperature Range (°C) -30 to +75 / -40 to +85 Current CONsumption (mA) Max. 1.5 Output Voltage Min. 0.8 V(p-p) (DC Coupling (*2)) Frequency/Temperature Characteristics Max. ±2.5×10-6 Frequency/Voltage Coefficient Max. ±0.3×10-6 / +3.0 V ±5 % Frequency/Load Coefficient Max. ±0.2×10-6/(10 kΩ//10 pF)±10 % Long-term Frequency Stability Max. ±1.0 ×10-6/year*1. Ambient temperature range within which the specified characteristics of a product can be achieved.*2. A DC-cut capacitor is not embedded in this crystal oscillator. Connect a DC-cut capacitor (1,000 pF) to the line-out terminal of the oscillator.When ordering our products, specify them with an “Ord...
