MG16B全冠尼龙电缆固定头
| 价 格： | 面议 |
分类:电器配件 型号:MG16B-10 材质:尼龙
| ·螺牙规格: ·产品材质: ·保护等级: ·工作温度: ·产品特性: ·颜色种类: | 公制牙(Metric)、PG牙、G (PF / BSP / PS)牙、NPT牙。 A.C.F部分采用UL认可之尼龙PA66(防火等级UL94V-2)制成;(可定制UL认可的V-0防火等级尼龙原料); B.D部分采用三元乙丙耐候橡胶制成。(可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。 IP68-10 静态-40℃至100℃,或瞬间可耐热至120℃;动态-20℃至80℃，或瞬间可耐热至100℃. 特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。 黑色、灰色，其它颜色可定做。 |
| 螺牙规格 Thread | 编号 Item.No. | 电缆范围 CableRange Ф(mm) | 螺纹外径 Thread O.D. C1(mm) | 螺纹长度 Thread Length C2(mm) | 扳手径 Spanner Size A&F(mm) | 包装 Std.Pkg (pcs) |
M10x1.5 | M10 -6 | 2.5-6 | 10 | 8 | 15/12 | 50 |
M12x1.5 | M12S -6 | 3-6.5 | 12 | 8.5 | 18/15 | 50 |
M12SL-6 | 3-6.5 | 12 | 15 | 18/15 | 50 | |
M12 -5 | 3-5.5 | 12 | 8.5 | 18/19 | 50 | |
M12 -7 | 4-8 | 12 | 8.5 | 18/19 | 50 | |
M12L -5 | 3-5.5 | 12 | 15 | 18/19 | 50 | |
M12L -7 | 4-8 | 12 | 15 | 18/19 | 50 | |
M16x1.5 | M16S -8 | 4-8 | 16 | 10 | 22/19 | 50 |
M16SL-8 | 4-8 | 16 | 15 | 22/19 | 50 | |
M16 -7 | 3-7 | 16 | 10 | 22/22 | 50 | |
M16 -10 | 5-10 | 16 | 10 | 22/22 | 50 | |
M16L -7 | 3-7 | 16 | 15 | 22/22 | 50 | |
M16L -10 | 5-10 | 16 | 15 | 22/22 | 50 | |
M18x1.5 | M18 -7 | 3-7 | 18 | 10 | 24/22 | 50 |
M18 -10 | 5-10 | 18 | 10 | 24/22 | 50 | |
M18L -7 | 3-7 | 18 | 15 | 24/22 | 50 | |
M18L -10 | 5-10 | 18 | 15 | 24/22 | 50 | |
M20x1.5 | M20S -12.5 | 6-12.5 | 20 | 10 | 27/24 | 50 |
M20 -11 | 5-11 | 20 | 11 | 27/27 | 50 | |
M20 -13.5 | 8.5-14 | 20 | 11 | 27/27 | 50 | |
M20L -11 | 5-11 | 20 | 15 | 27/27 | 50 | |
M20L -13.5 | 8.5-14 | 20 | 15 | 27/27 | 50 | |
M25x1.5 | M25S -14 | 8.5-14 | 25 | 11.6 | 33/27 | 50 |
M25 -16 | 7-13 | 25 | 11.6 | 33/33 | 50 | |
M25 -18 | 12.5-18 | 25 | 11.6 | 33/33 | 50 | |
M25L -16 | 7-13 | 25 | 15 | 33/33 | 50 | |
M25L -18 | 12.5-18 | 25 | 15 | 33/33 | 50 | |
M32x1.5 | M32S -17.5 | 11-17.5 | 32 | 15 | 36/42 | 20 |
M32 -22 | 14-22 | 32 | 15 | 41/42 | 20 | |
M32 -25 | 17-25 | 32 | 15 | 41/42 | 20 | |
M36x1.5 | M36 -22 | 14-22 | 36 | 12 | 45/42 | 20 |
M36 -25 | 17-25 | 36 | 12 | 45/42 | 20 | |
M40x1.5 | M40 -26.5 | 18-25 | 40 | 15 | 50/52 | 10 |
M40 -31 | 23-32 | 40 | 15 | 50/52 | 10 | |
M50x1.5 | M50 -32 | 25-32 | 50 | 15 | 62/62 | 10 |
M50 -41 | 30-41 | 50 | 15 | 62/62 | 10 | |
M63x1.5 | M63 -41 | 29-38 | 63 | 18 | 75/65 | 10 |
M63 -46 | 35-46 | 63 | 18 | 75/65 | 10 | |
| 螺牙规格 Thread | 编号 Item.No. | 电缆范围 CableRange Ф(mm) | 螺纹外径 Thread O.D. C1(mm) | 螺纹长度 Thread Length C2(mm) | 扳手径 Spanner Size A&F(mm) | 包装 Std.Pkg (pcs) |
PG7 | PG7S -6 | 3-6.5 | 12.5 | 8 | 17/15 | 50 |
PG7 -5 | 3-5.5 | 12.5 | 8 | 17/19 | 50 | |
PG7 -7 | 4-8 | 12.5 | 8 | 17/19 | 50 | |
PG 9 | PG9 -5.5 | 3-5.5 | 15.2 | 8.2 | 22/19 | 50 |
PG9 -7.5 | 4-8 | 15.2 | 8.2 | 22/19 | 50 | |
PG11 | PG11 -7 | 3-7 | 18.6 | 10 | 24/22 | 50 |
PG11 -10 | 5-10 | 18.6 | 10 | 24/22 | 50 | |
PG13.5 | PG13.5-9 | 5-9 | 20.4 | 10 | 27/24 | 50 |
PG13.5-12.5 | 6-12.5 | 20.4 | 10 | 27/24 | 50 | |
PG16 | PG16 -11 | 5-11 | 22.5 | 10.8 | 30/27 | 50 |
PG16 -14 | 8.5-14 | 22.5 | 10.8 | 30/27 | 50 | |
PG19 | PG19 -11 | 5-11 | 23.5 | 11 | 30/27 | 50 |
PG19 -14 | 8.5-14 | 23.5 | 11 | 30/27 | 50 | |
PG21 | PG21 -15.5 | 7-13 | 28.3 | 12 | 36/33 | 50 |
PG21 -17.5 | 12.5-18 | 28.3 | 12 | 36/33 | 50 | |
PG25 | PG25 -20 | 14-20 | 30 | 13 | 36/37 | 50 |
PG29 | PG29 -21 | 14-22 | 37 | 12 | 46/41 | 20 |
PG29 -24 | 17-25 | 37 | 12 | 46/41 | 20 | |
PG36 | PG36 -25.5 | 17-25.5 | 47 | 14 | 57/52 | 10 |
PG36 -31 | 24-32 | 47 | 14 | 57/52 | 10 | |
PG42 | PG42 -32 | 25-32 | 54 | 15 | 64/62 | 10 |
PG42 -41 | 30-41 | 54 | 15 | 64/62 | 10 | |
PG48 | PG48 -38 | 29-38 | 59.3 | 15.5 | 70/65 | 10 |
PG48 -45.5 | 35-45.5 | 59.3 | 15.5 | 70/65 | 10 | |
| 螺牙规格 Thread | 编号 Item.No. | 电缆范围 CableRange Ф(mm) | 螺纹外径 Thread O.D. C1(mm) | 螺纹长度 Thread Length C2(mm) | 扳手径 Spanner Size A&F(mm) | 包装 Std.Pkg (pcs) |
G1/4" | G1/4 -5 | 3-5.3 | 13.157 | 8.5 | 19/19 | 50 |
G1/4 -8 | 4-8 | 13.157 | 8.5 | 19/19 | 50 | |
G3/8" | G3/8 -7 | 3-7 | 16.662 | 10 | 22/22 | 50 |
G3/8 -10 | 5-10 | 16.662 | 10 | 22/22 | 50 | |
G1/2" | G1/2 -9 | 5-9 | 20.955 | 10 | 27/24 | 50 |
G1/2 -12.5 | 6-12.5 | 20.955 | 10 | 27/24 | 50 | |
G3/4" | G3/4 -15.5 | 7-13 | 26.441 | 12 | 36/33 | 50 |
G3/4 -17.5 | 12.5-18 | 26.441 | 12 | 36/33 | 50 | |
G1" | G1 -21 | 15-22 | 33.249 | 15 | 46/41 | 20 |
G1 -24 | 17-25 | 33.249 | 15 | 46/41 | 20 | |
G1 1/4" | G11/4-25.5 | 17-25.5 | 41.91 | 15 | 57/52 | 10 |
G11/4-31 | 24-32 | 41.91 | 15 | 57/52 | 10 | |
| 螺牙规格 Thread | 编号 Item.No. | 电缆范围 CableRange Ф(mm) | 螺纹外径 Thread O.D. C1(mm) | 螺纹长度 Thread Length C2(mm) | 扳手径 Spanner Size A&F(mm) | 包装 Std.Pkg (pcs) |
NPT1/4" | NPT1/4 -5.5 | 3-5.5 | 13.157 | 8.5 | 19 | 50 |
NPT1/4 -6.8 | 4-8 | 13.157 | 8.5 | 19 | 50 | |
NPT3/8" | NPT3/8 -7 | 3-7 | 16.662 | 10 | 22 | 50 |
NPT3/8 -10 | 5-10 | 16.662 | 10 | 22 | 50 | |
NPT1/2" | NPT1/2 -9 | 5-9 | 20.955 | 10 | 24 | 50 |
NPT1/2 -13 | 6-12.5 | 20.955 | 10 | 24 | 50 | |
NPT3/4" | NPT3/4 -16 | 7-13 | 26.441 | 15 | 33 | 50 |
NCG-NPT3/4 -18 | 12.5-18 | 26.441 | 15 | 33 | 50 | |
NPT1" | NPT1 -22 | 15-22 | 33.249 | 17 | 41 | 20 |
NPT1 -25 | 17-25 | 33.249 | 17 | 41 | 20 | |
NPT1 1/4" | NPT11/4-25.5 | 17-25.5 | 41.91 | 17 | 52 | 20 |
NPT11/4-31 | 24-32 | 41.91 | 17 | 52 | 20 |
- 所属城市：广东 广州
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈志雄
- 电话：020-23377155
- 传真：020-23377155
- 手机：
- QQ ：
E5CN-R2MT-500温控器
信息内容：品牌:OMRON 型号:E5CN-R2MT-500 控制模式:智能温度控制调节器 温度范围:0-1800（℃） 精度等级:A 开孔尺寸:48*48（mm） 安装型式:面板 工作电压:AC110-240（V） 外形尺寸:48*48（mm）型号：E5CN-R2MT-500特点：全数显显示动作方式，SV/PV设定值显示，内部附设双输出警报及加热器断线警报功能，有自我调谐及自动调谐，可以选择加热，冷却功能。尺寸：48X48电压：AC100-240V AC24V DC24V温度范围：0-1800度输入：K Pt100输出:继电器

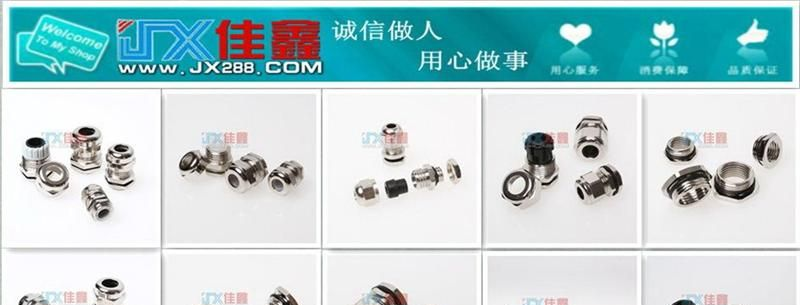

金属电缆防水接头 金属电缆固定头 PG7 PG9防水紧线器 防水紧线夹
