供应韩国DACELL称重传感器UU-200kgf
| 价 格： | 面议 | |
| 型号/规格： | UU-200kgf | |
| 品牌/商标： | DACELL |
SPECIFICATIONS
|
Specifications |
Accuracy |
|
Rated capacity(R.C.) |
2kg, 5kg, 10kgf, 20kgf, 50kgf, 100kgf, 200kgf, 500kgf, 1tf, 2tf, 3tf, 5tf, 10tf |
|
Rated output(R.O.) |
2.0mV/V±1%(2kgf, 5kgf:1.5mV/V±1%) |
|
Nonlinearity |
0.03% of R.O. |
|
Hysteresis |
0.03% of R.O. |
|
Repeatability |
0.03% of R.O. |
|
Zero balance |
±2% of R.O. |
|
Temperature effect, on rated output |
0.05% of LOAD/10℃ |
|
Temperature effect, on zero balance |
0.1% of R.O./10℃ |
|
Temperature range, compensated |
-10~60℃ |
|
Temperature range, safe |
-20~80℃ |
|
Terminal resistance input |
350 ±50Ω |
|
Terminal resistance output |
350 ±2Ω |
|
Insulation resistance bridge/case |
2000MΩ |
|
Excitation recommended |
10V |
|
Safe overload |
150% R.C |
|
Cable length |
Φ5mm 4core,3m |
DIMENSIONS TABLE
|
Capacity |
A |
B |
C |
D |
E |
G |
Weight(kg) |
|
2kgf (19.61N) |
60 |
50 |
13 |
16 |
10 |
M6x1 |
0.4 |
|
5kgf (49.03N) |
60 |
50 |
13 |
16 |
10 |
M6x1 | |
|
10kgf (98.07N) |
70 |
52 |
13 |
18 |
13 |
M6x1 | |
|
20kgf (196.1N) |
70 |
52 |
13 |
18 |
13 |
M6x1 | |
|
50kgf (490.3N) |
70 |
52 |
18 |
24 |
13 |
M12x1.75 | |
|
100kgf (980.7N) |
70 |
52 |
18 |
24 |
13 |
M12x1.75 | |
|
200kgf (1.961KN) |
70 |
52 |
18 |
24 |
13 |
M12x1.75 | |
|
500kgf (4.903KN) |
70 |
62 |
22 |
25 |
15 |
M12x1.75 |
0.8 |
|
1tf (9.807KN) |
70 |
62 |
22 |
25 |
15 |
M12x1.75 | |
|
2tf (19.61KN) |
96 |
84 |
30 |
35 |
21 |
M20x1.5 |
2 |
|
3tf (29.42KN) |
120 |
96 |
35 |
41 |
30 |
M24x2 |
3 |
|
5tf (49.03KN) |
120 |
96 |
40 |
44 |
30 |
M24x2 | |
|
10tf (98.07KN) |
165 |
140 |
60 |
66 |
46 |
M39x2 |
8.5 |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 周勇
- 电话：0755-61115175
- 传真：0755-61115178
- 手机：15889763629
- QQ ：
供应韩国SENSTECH传感器
信息内容：SENSTECH传感器悬臂梁称重传感器: SCB1-150gf SCB1-300gf SCB1-600gf SCB1-1kgf SCB1-2kgf SCB1-3kgf SCB1-5kgf SCB1-10kgf SCB1-15kgf SCB1-30kgf SCB1-50kgf SCB1A-1kgf SCB1A-2kgf SCB1A-3kgf SCB2-60kgf SCB2-100kgf SCB2-250kgf SCB2-300kgf SCB4-300kgf SCB4-500kgf SCB5-30kgf SCB5-50kgf SCB5-100kgf SCB5-150kgf SCB5-300kgf SCB6-6kgf SCB6-10kgf SCB6-25kgf SCB6-30kgf 轮辐式称重传感器: SCWH-500kgf SCWH-1tf SCWH-2tf SCWH-3tf SCWH-5tf SCWH-10tf SCWH-20tf SCWH-50tf SCWH-100tf SCWH-200tf SCWH-300tf SCWW-50kgf SCWW-100kgf SCWW-200kgf SCWW-500kgf SCWW-1tf SCWW-2tf SCWW-3tf SCWW-5tf SCWW-10tf SCWW-20tf SCWW-30tf SCWW-50tf SCWW-100tf SCWW-150tf SCWW-200tf SCMM-1kgf SCMM-2kgf SCMM-5kgf SCMM-10kgf SCMM-20kgf SCMM-50kgf SCMM-100kgf SCMM2-1kgf SCMM2-2kgf SCMM2-5kgf SCMM2-10kgf SCMM2-20kgf SCMM2-50kgf SCMM2-100kgf SCMM2-200kgf SCM-50kgf SCM-100kgf SCM-200kgf SCM-500kgf SCM-1tf SCM-2tf SCM-5tf SCM-10tf 微型(拉式)称重传感器: SUM-50kgf SUM-100kgf SUM-200kgf SUM-500kgf SUM-1tf SUM-2tf SUMA-50kgf SUMA-100k...

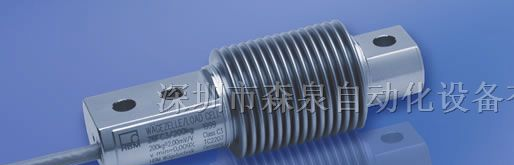

供应德国HBM传感器Z6FC3/100KG
