供应ZIPPY微动开关CN

价格：

1.60

详细介绍
企业详情

品牌:Zippy 型号:CN 类型:ZIPPY 产品认证:UL

Ratings：
1A,5A 125/250VAC

Dimension：
Unless otherwise specified,a tolerance of ±0.4mm applies to all dimensions.

Catalog Request

Specifications：

Operating Frequency (mechanical).....120 operations / mim

Operating Frequency (electrical).....10~30 operations / mim

Insulation Resistance (at 500VDC).....100M Ω (Min.)

Dielectric Strength (50-60Hz).....1000VAC RMS

Storage Temperature.....-25℃ to 85 ℃

Storage Humidity.....At 40 ℃,Max. 85% RH (Max.)

Service Life (mechanical).....Min. 10000000 operations

Service Life (electrical).....Min. 6000 operations

Application：
TV Game,Vending Machine,Coin-op Phone Pin-Ball Game

Contact Configuration：

Ordering Information：

Mounting Holes：

The Selection of Rating & Force：

Actuator Types：

Memo：
Certificate Information：UL、CSA

北京易瑞浦电子有限公司

公司信息未核实

所属城市：北京北京市
[联系时请说明来自维库仪器仪表网]
联系人： 倪晓秋
电话：010-62612711
传真：010-62612711
手机：
QQ ：

公司相关产品

供应ZIPPY微动开关*SMV

信息内容：

品牌:Zippy 型号:SMV 类型:普通型产品认证:UL台湾ZIPPY微动开关SMV Series dzsc/17/9525/17952541.jpg Ratings：SMV-05 5A 125VACSMV-05 5A 250VACSMV-05 6A 125VACSMV-05 6A 250VACSMV-10 10.1A 125VACSMV-10 10.1A 250VACDimension：Unless otherwise specified, a tolerance of ±0.4 mm applise to all dimensions.dzsc/17/9525/17952541.jpgFeatures：VDE approval, Small compact size, Customer designs, Rock wipe contact action, Integral hinge actuator, Long life coil spring mechanismSpecifications：Operating Frequency (mechanical).....120 operations / mimOperating Frequency (electrical).....10 ~ 30 operations / mimContact Resistance (initial).....30m Ω (Max.)Insulation Resistance (at 500VDC).....100M Ω (Min.)Dielectric Strength (50-60Hz).....AC1,000V RMSStorage Temperature.....-25~+85(120optional) ℃Storage Humidity.....85% RH (Max.)Service Life (mechanical).....10,000,000 operationsService Life (electrical).....10,000 operationsApplication：Telephone , Air condition , Compute...

详细内容>>

供应ZIPPY微动开关DW

信息内容：

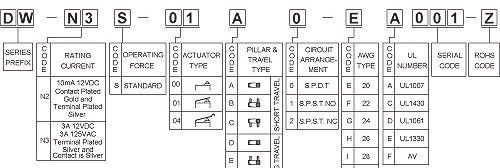

品牌:Zippy 型号:DW 类型:防水型微动开关台湾ZIPPY微动开关 DW(IP67) Series dzsc/17/9525/17952543.jpg Ratings：DW-P1 10mA 12VDCDW-03 3A 12VDCDW-03 3A 125VACDimension：Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.dzsc/17/9525/17952543.jpgFeatures：Waterproof IP67, Small compact size, Customer designs, Rock wipe contact actionSpecifications：Operating Frequency (mechanical).....120 operations / mimOperating Frequency (electrical).....10 ~ 30 operations / mimContact Resistance (initial).....100m Ω (Max.)Insulation Resistance (at 250VDC).....100M Ω (Min.)Storage Temperature.....-25 ~ +85 ℃Storage Humidity.....85% RH (Max.)Service Life (mechanical).....500,000 operationsService Life (electrical).....6,000 ~500,000 operationsApplication：Automotive(operation system , enginearea,interior) Air conditioner , Communication , Electric tooth bruSH , toys , etc.Ordering Information：dzsc/17/9525/17952543.jpg

详细内容>>
