品牌:HWT 型号:BPS-204 工作电压:120(V) 工作电流:5(A) 额定发热电流:3(A) 头部保护等级:1 产品认证:RoHS
按钮开关系列主要技术指标 Specifications of Push Switch Series | |||
额定工作电压、电流Rating | 3A/6A/15A 250V | 使用温度范围Temperature | -25+85oC |
接触电阻Contact Resistance | <0.03Ω | 动作力Actuating Force | 1.3+0.5N |
绝缘电阻Insulation Resistance | >100MΩ | 寿命(switching Life) | 10000次 |
耐压Withstand Voltage | AC1500V(50Hz)1min |
dzsc/17/8603/17860373.jpg

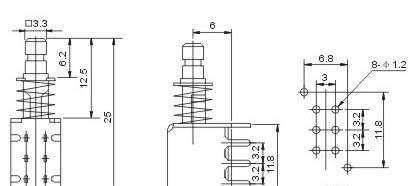

品牌:HWT 型号:KA03-2 电压:DC30(V) 额定发热电流:1(A) 接触电阻:≤0.02 Ω 使用温度范围:-40-70(℃) 绝缘电阻:≥500M(Ω) 产品认证:ROHS直键开关系列主要技术指标 Specifications of Uni-direction Push-button Switch Series使用温度范围Temperature-25~55oC耐压Withstand VoltageAC800V(50Hz)/min额定负荷Rated loadDC 30V 1A动作力Actuating Force2~8N接触电阻Contact Resistance<0.02Ω寿命Life100000次绝缘电阻Insulation Resistance>500MΩ说明:开关锁定形式分自锁和无锁dzsc/17/8625/17862521.jpg

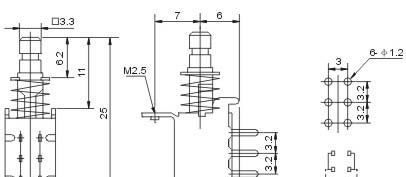

品牌:HWT 型号:KA03-3M 电压:DC 30(V) 额定发热电流:1(A) 接触电阻:≤0.02Ω 使用温度范围:-40-70(℃) 绝缘电阻:≥500M(Ω) 产品认证:ROHS直键开关系列主要技术指标 Specifications of Uni-direction Push-button Switch Series使用温度范围Temperature-25~55oC耐压Withstand VoltageAC800V(50Hz)/min额定负荷Rated loadDV 30V 1A动作力Actuating Force2~8N接触电阻Contact Resistance<0.02Ω寿命Life<100000次绝缘电阻Insulation Resistance>500MΩ说明:开关锁定形式分自锁和无锁dzsc/17/8625/17862533.jpg
