供应电流感测采样电阻1225 3W 3mR-1R

价格：		面议
型号/规格：		1225 3W 3mR-1R
品牌/商标：		VIKING
环保类别：		无铅环保型
产品主要用途：		普通/民用电子信息产品
功率分类：		中功率（1W~5W）
精度类别：		普通型
外形结构特征：		片状型
引出线类型：		无引出线
包装形式：		盒带编带包装

详细介绍
企业详情

Features
-	Small size and light weight
-	Highly reliable multilayer electrode construction
-	Compatible with all soldering process
Applications
-	Telecommunication Equipments
-	Radio and Tape Recorders, TV Tuners
-	Video Cameras, Watches, Pocket Calculators
-	Automotive Industry
-	Computers, Instruments
-	Medical and Military Equipment

dzsc/17/7749/17774925.jpg

Standard Electrical Specifications

Type	Power Rating at 70°C	Operating Temp.Range	Max. Operating Voltage	Max. Overload Voltage	Resistance Range(mR)		TCR (PPM/°C)
					±1%	±5%
CR0201	1/20W	-55 ~ +125°C	25V	50V	1R - 10MR		±200
CR0402	1/16W	-55~ +155°C	50V	100V	1R - 9.76R 10R - 1MR 1.02MR - 10MR		±200 ±100 ±200
		-55 ~ +125°C			10.2MR-20MR 20.5MR-100MR		±200 ±400
CR0603	1/10W	-55 ~ +155°C	50V	100V	1R - 9.76R 10R - 1MR 1.02MR - 20MR 20.5MR - 100MR		±200 ±100 ±200 ±400
CR0805	1/8W	-55 ~ +155°C	150V	300V	1R - 9.76R 10R - 1MR 1.02MR - 20MR 20.5MR - 100MR		±200 ±100 ±200 ±400
CR1206	1/4W		200V	400V
CR1210	1/3W	-55 ~ +155°C	200V	400V	1R - 9.76R 10R - 1MR 1.02MR - 20MR 20.5MR - 39MR		±200 ±100 ±200 ±400
CR2010	3/4W	-55~ +155°C	200V	400V	1R-9.76R 10R-1MR 1.02MR-20MR 20.5MR-100MR		±200 ±100 ±200 ±400
CR2512	1W	-55 ~ +155°C	250V	500V	1R- 9.76R 10R-1MR 1.02MR -20MR 20.5MR - 100MR		±200 ±100 ±200 ±400

High Precision Electrical Specifications

Type	Power Rating at 70°C	Operating Temp.Range	Max. Operating Voltage	Max. Overload Voltage	Resistance Range(mR)			TCR (PPM/°C)
					±0.1%	±0.25%	±0.5%
CR0402	1/16W	–55~+125°C	50V	100V	-		10R - 1MR	±100
					-		1.02M - 10MR	±200
CR0603	1/10W		50V	100V	10R - 1MR			±100
					-	1.02M - 10MR		±200
CR0805	1/8W		150V	300V	10R - 1MR			±100
					-	1.02M - 10MR		±200
CR1206	1/4W		200V	400V	10R - 1MR			±100
					-	1.02M - 10MR		±200
CR1210	1/3W		200V	400V	10R - 1MR			±100
					-	1.02M - 10MR		±200
CR2010	3/4W		200V	400V	10R - 1MR			±100
					-	1.02M - 10MR		±200
CR2512	1W		250V	500V	10R - 1MR			±100
					-	1.02M - 10MR		±200

TC50 Electrical Specifications

Type	Power Rating at 70°C	Operating Temp.Range	Max. Operating Voltage	Max. Overload Voltage	Resistance Range(mR)				TCR (PPM/°C)
					±0.1%	±0.25%	±0.5%	±1%
CR0402	1/16W	–55~+125°C	50V	100V	-		100R - 1MR		±50

CR0603	1/10W		50V	100V	10R - 10MR

CR0805	1/8W		150V	300V

CR0603	1/4W		200V	400V

CR1206	1/3W		200V	400V

CR2010	3/4W		200V	400V

CR2512	1W		250V	500V

贝斯电子（深圳）有限公司

公司信息未核实

所属城市：广东深圳
[联系时请说明来自维库仪器仪表网]
联系人： 龙学光
电话：0755-81164312
传真：-
手机：13714301282
QQ ：

公司相关产品

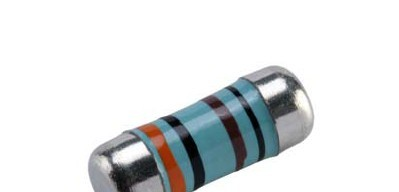

现货供应金属精密薄膜贴片电阻0204/0207/0309

信息内容：

精度范围:0.1%,0.25%,0.5%,1% 尺寸及功率:0204（1/4W）,0207（1/2W）,0207（1W）,0309(2W) 温度系数:10PPM~100PPM 阻值范围：10R—2.2MR。此产品多用于传感器、汽车电子,通讯产品,医疗设备,太空设备等

详细内容>>

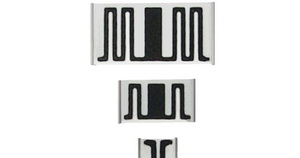

CHS型高阻-兆欧片式电阻器产品特点： ·厚膜高阻片式电阻 ·低温低压工作 ·端头PTAG电极以供粘结和焊接 ·未刻槽型供更高电压使用，可达6000V 技术参数：型号 0404 0603 0805 1206 1210 2512 4020 额定功率P70(W) 50 75 125 250 350 1000 1) 15001) 工作电压(V) 刻槽 30 75 100 200 300 1000 4000 未刻槽 90 200 300 600 900 2000 6000 阻值范围/精度/电压系数 0402 0603 0805 1206 1210 2512 4020 10M-100M 5/10/20%TC100/250＜500ppm/V 1/5/10/20%TC100/250＜250ppm/V 0.5/1/5/10/20%TC50/100＜100ppm/V 0.5/1/5/10/20%TC25/50/100＜100ppm/V 0.5/1/5/10/20%TC25/50/100＜50ppm/V 05/.../20%TC25/50/100＜10ppm/V 0.25/.../10%TC/25/50/100＜5ppm/V ＞100M-500M 5/10/20%TC250/500＜1000ppm/V 2/5/10/20%TC100/250＜500ppm/V 2/5/10/20%TC100/250＜250ppm/V 2/5/10/20%TC50/100/250＜100ppm/V 2/5/10/20%TC50/100/250＜100ppm/V 1/5/10/20...
