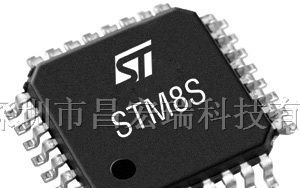

供应STM8S207C8T6 单片机 ST MCU 开发板 学习板
| 价 格： | 10.00 | |
| 型号/规格： | STM8S207C8T6 | |
| 品牌/商标： | ST |
| Part Number | Packages | Pin count | Internal ROM type | Prog (Bytes) | RAM (Bytes) | Data E2PROM (Bytes) | A/D Converter | 12 or 16-bit Timer Functions (IC/OC/PWM) | 8-bit Timer Functions (IC/OC/PWM) | Others Timer Functions | Serial Interface | LVD levels | I/Os (High Current) | Supply Voltage (Vcc) min | Supply Voltage (Vcc) max | Special Features |
| STM8S208MBT6B | LQFP80 (14x14) | 80 | FLASH | 128 K | 6K | 2K | 16x10-bit | 3x16_bit (9/9/12) | 1x8_bit | WWDG, WDG, beep | CAN, SPI, USART, LIN(UART), I²C | 68(11) | 3.0V | 5.5V | Int.RC16MHz 2%, Int. RC 128KHz, bootloader | |
| STM8S208RBT6 | LQFP64 (10x10) | 64 | FLASH | 128 K | 6K | 2K | 16x10-bit | 3x16_bit (9/9/12) | 1x8_bit | WWDG, WDG, beep | CAN, SPI, USART, LIN(UART), I²C | 52(9) | 3.0V | 5.5V | Int.RC16MHz 2%, Int. RC 128KHz, bootloader | |
| STM8S208C6T6 | LQFP48 (7x7) | 48 | FLASH | 32 K | 6K | 1K | 10x10-bit | 3x16_bit (9/9/12) | 1x8_bit | WWDG, WDG, beep | CAN, SPI, USART, LIN(UART), I²C | 52(9) | 3.0V | 5.5V | Int.RC16MHz 2%, Int. RC 128KHz, bootloader | |
| STM8S207C6T6 | LQFP48 (7x7) | 48 | FLASH | 32 K | 2K | 1K | 10x10-bit | 3x16_bit (9/9/12) | 1x8_bit | WWDG, WDG, beep | SPI, USART, LIN(UART), I²C | 38(9) | 3.0V | 5.5V | Int.RC16MHz 2%, Int. RC 128KHz, bootloader | |
| STM8S207C8T6 | LQFP48 (7x7) | 48 | FLASH | 64 K | 4K | 1.5K | 10x10-bit | 3x16_bit (9/9/12) | 1x8_bit | WWDG, WDG, beep | SPI, USART, LIN(UART), I²C | 38(9) | 3.0V | 5.5V | Int.RC16MHz 2%, Int. RC 128KHz, bootloader | |
| STM8S207CBT6 | LQFP48 (7x7) | 48 | FLASH | 128 K | 6K | 2K | 10x10-bit | 3x16_bit (9/9/12) | 1x8_bit | WWDG, WDG, beep | SPI, USART, LIN(UART), I²C | 38(9) | 3.0V | 5.5V | Int.RC16MHz 2%, Int. RC 128KHz, bootloader | |
| STM8S207K6T6C | LQFP32 (7x7) | 32 | FLASH | 32 K | 2K | 1K | 7x10-bit | 3x16_bit (8/8/11) | 1x8_bit | WWDG, WDG, beep | SPI, LIN(UART), I²C | 25(8) | 3.0V | 5.5V | Int.RC16MHz 2%, Int. RC 128KHz, bootloader | |
| STM8S207K6U6 | VFQN32 (5x5) | 32 | FLASH | 32 K | 2K | 1K | 7x10-bit | 3x16_bit (8/8/11) | 1x8_bit | WWDG, WDG, beep | SPI, LIN(UART), I²C | 25(8) | 3.0V | 5.5V | Int.RC16MHz 2%, Int. RC 128KHz, bootloader | |
| STM8S207MBT6B | LQFP80 (14x14) | 80 | FLASH | 128 K | 6K | 2K | 16x10-bit | 3x16_bit (9/9/12) | 1x8_bit | WWDG, WDG, beep | SPI, USART, LIN(UART), I²C | 68(11) | 3.0V | 5.5V | Int.RC16MHz 2%, Int. RC 128KHz, bootloader | |
| STM8S207R6T6 | LQFP64 (10x10) | 64 | FLASH | 32 K | 4K | 1.5K | 16x10-bit | 3x16_bit (9/9/12) | 1x8_bit | WWDG, WDG, beep | SPI, USART, LIN(UART), I²C | 52(9) | 3.0V | 5.5V | Int.RC16MHz 2%, Int. RC 128KHz, bootloader | |
| STM8S207R8T6 | LQFP64 (10x10) | 64 | FLASH | 64 K | 4K | 1.5K | 16x10-bit | 3x16_bit (9/9/12) | 1x8_bit | WWDG, WDG, beep | SPI, USART, LIN(UART), I²C | 52(9) | 3.0V | 5.5V | Int.RC16MHz 2%, Int. RC 128KHz, bootloader | |
| STM8S207R8T6C | LQFP64 (14x14) | 64 | FLASH | 64 K | 4K | 1.5K | 16x10-bit | 3x16_bit (9/9/12) | 1x8_bit | WWDG, WDG, beep | SPI, USART, LIN(UART), I²C | 52(9) | 3.0V | 5.5V | Int.RC16MHz 2%, Int. RC 128KHz, bootloader | |
| STM8S207RBT6 | LQFP64 (10x10) | 64 | FLASH | 128 K | 6K | 2K | 16x10-bit | 3x16_bit (9/9/12) | 1x8_bit | WWDG, WDG, beep | SPI, USART, LIN(UART), I²C | 52(9) | 3.0V | 5.5V | Int.RC16MHz 2%, Int. RC 128KHz, bootloader | |
| STM8S207S6T6C | LQFP44 (10x10) | 44 | FLASH | 32 K | 2K | 1K | 9x10-bit | 3x16_bit (8/8/11) | 1x8_bit | WWDG, WDG, beep | SPI, USART, LIN(UART), I²C | 34(9) | 3.0V | 5.5V | Int.RC16MHz 2%, Int. RC 128KHz, bootloader | |
| STM8S207S8T6C | LQFP44 (10x10) | 44 | FLASH | 64 K | 4K | 1.5K | 9x10-bit | 3x16_bit (8/8/11) | 1x8_bit | WWDG, WDG, beep | SPI, USART, LIN(UART), I²C | 34(9) | 3.0V | 5.5V | Int.RC16MHz 2%, Int. RC 128KHz, bootloader | |
| STM8S103F2P6 | TSSOP20 | 20 | FLASH | 4 K | 1K | 640 | 5x10-bit | 2x16_bit (7/7/7) | 1x8_bit | WWDG, WDG, beep | SPI,USART, I²C | 16(8) | 3.0V | 5.5V | Int.RC16MHz 1%, Int. RC 128KHz | |
| STM8S103F3P6 | TSSOP20 | 20 | FLASH | 8 K | 1K | 640 | 5x10-bit | 2x16_bit (7/7/7) | 1x8_bit | WWDG, WDG, beep | SPI,USART, I²C | 16(8) | 3.0V | 5.5V | Int.RC16MHz 1%, Int. RC 128KHz | |
| STM8S103K3T6C | LQFP32 (7x7) | 32 | FLASH | 8 K | 1K | 640 | 5x10-bit | 2x16_bit (7/7/10) | 1x8_bit | WWDG, WDG, beep | SPI,USART, I²C | 28(8) | 3.0V | 5.5V | Int.RC16MHz 1%, Int. RC 128KHz | |
| STM8S103K3U6 | VFQFN32 (6x6) | 32 | FLASH | 8 K | 1K | 640 | 5x10-bit | 2x16_bit (7/7/10) | 1x8_bit | WWDG, WDG, beep | SPI,USART, I²C | 28(8) | 3.0V | 5.5V | Int.RC16MHz 1%, Int. RC 128KHz | |
| STM8S105C4T6 | LQFP48 (7x7) | 48 | FLASH | 16 K | 2K | 1K | 10x10-bit | 3x16_bit (9/9/12) | 1x8_bit | WWDG, WDG, beep | SPI, LIN(UART), I²C | 38(9) | 3.0V | 5.5V | Int.RC16MHz 1%, Int. RC 128KHz, bootloader | |
| STM8S105C6T6 | LQFP48 (7x7) | 48 | FLASH | 32 K | 2K | 1K | 10x10-bit | 3x16_bit (9/9/12) | 1x8_bit | WWDG, WDG, beep | SPI, LIN(UART), I²C | 38(9) | 3.0V | 5.5V | Int.RC16MHz 1%, Int. RC 128KHz, bootloader | |
| STM8S105K4T6C | LQFP32 (7x7) | 32 | FLASH | 16 K | 2K | 1K | 7x10-bit | 3x16_bit (8/8/11) | 1x8_bit | WWDG, WDG, beep | SPI, LIN(UART), I²C | 25(8) | 3.0V | 5.5V | Int.RC16MHz 1%, Int. RC 128KHz, bootloader | |
| STM8S105K4U6 | VFQFN32 (6x6) | 32 | FLASH | 16 K | 2K | 1K | 7x10-bit | 3x16_bit (8/8/11) | 1x8_bit | WWDG, WDG, beep | SPI, LIN(UART), I²C | 25(8) | 3.0V | 5.5V | Int.RC16MHz 1%, Int. RC 128KHz, bootloader | |
| STM8S105K6T6C | LQFP32 (7x7) | 32 | FLASH | 32 K | 2K | 1K | 7x10-bit | 3x16_bit (8/8/11) | 1x8_bit | WWDG, WDG, beep | SPI, LIN(UART), I²C | 25(8) | 3.0V | 5.5V | Int.RC16MHz 1%, Int. RC 128KHz, bootloader | |
| STM8S105K6U6 | VFQFN32 (6x6) | 32 | FLASH | 32 K | 2K | 1K | 7x10-bit | 3x16_bit (8/8/11) | 1x8_bit | WWDG, WDG, beep | SPI, LIN(UART), I²C | 25(8) | 3.0V | 5.5V | Int.RC16MHz 1%, Int. RC 128KHz, bootloader | |
| STM8S105S4T6C | LQFP44 (10x10) | 44 | FLASH | 16 K | 2K | 1K | 9x10-bit | 3x16_bit (8/8/11) | 1x8_bit | WWDG, WDG, beep | SPI, LIN(UART), I²C | 34(8) | 3.0V | 5.5V | Int.RC16MHz 1%, Int. RC 128KHz, bootloader | |
| STM8S105S6T6C | LQFP44 (10x10) | 44 | FLASH | 32 K | 2K | 1K | 9x10-bit | 3x16_bit (8/8/11) | 1x8_bit | WWDG, WDG, beep | SPI, LIN(UART), I²C | 34(8) | 3.0V | 5.5V | Int.RC16MHz 1%, Int. RC 128KHz, bootloader | |
| STM8S903K3T6C | LQFP32 (7x7) | 32 | FLASH | 8 K | 1K | 640 | 7x10-bit | 2x16_bit (7/7/10) | 1x8_bit | WWDG, WDG, beep | SPI,USART, I²C | 28(8) | 3.0V | 5.5V | Int.RC16MHz 1%, Int. RC 128KHz |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 彭敬芸
- 电话：0755-82772449/82770183/33160105
- 传真：0755-82785953
- 手机：13823260772
- QQ ：
供应STM8S103K3T6C 单片机 开发板 学习板
信息内容：Part Number Packages Pin count Internal ROM type Prog (Bytes) RAM (Bytes) Data E2PROM (Bytes) A/D Converter 12 or 16-bit Timer Functions (IC/OC/PWM) 8-bit Timer Functions (IC/OC/PWM) Others Timer Functions Serial Interface LVD levels I/Os (High Current) Supply Voltage (Vcc) min Supply Voltage (Vcc) max Special Features STM8S208MBT6B LQFP80 (14x14) 80 FLASH 128 K 6K 2K 16x10-bit 3x16_bit (9/9/12) 1x8_bit WWDG, WDG, beep CAN, SPI, USART, LIN(UART), I²C 68(11) 3.0V 5.5V Int.RC16MHz 2%, Int. RC 128KHz, bootloader STM8S208RBT6 LQFP64 (10x10) 64 FLASH 128 K 6K 2K 16x10-bit 3x16_bit (9/9/12) 1x8_bit WWDG, WDG, beep CAN, SPI, USART, LIN(UART), I²C 52(9) 3.0V 5.5V Int.RC16MHz 2%, Int. RC 128KHz, bootloader STM8S208C6T6 LQFP48 (7x7) 48 FLASH 32 K 6K 1K 10x10-bit 3x16_b...
供应ST-MCU STMS207S6T6C 单片机
信息内容：意法半导体（ST）再次扩大8位微控制器的产品阵容，针对工业温度范围，推出基于新一代STM8内核的STM8S系列产品。 意法半导体（ST）再次扩大8位微控制器的产品阵容，针对工业温度范围，推出基于新一代STM8内核的STM8S系列产品。新系列微控制器整合新一代内核的高速度、处理性能和代码效率，以及多用途外设接口，并具备多项特殊功能，可提高芯片的强轫度和可靠性。片内集成的存储器（包括真EEPROM）可以简化应用仿真。在工业控制和家电应用中，STM8S系列产品可以降低系统成本，缩短应用开发周期，提高处理性能。 STM8 8位内核有一个32位存储器接口和三段流水线架构，在24MHz频率下，处理效能高达20 MIPS。栈指针和16位索引寄存器可改进表处理性能，内核的16MB线性存储位址空间可简化6?KB以上的页操作。此外，栈指针的改善、新增寻址模式和新指令等特性增强了对C编程和实时性能的支持，并提高了代码密度和处理器能效。 除STM8的内核优势外，STM8系列产品还提供大容量片上闪存，根据不同的产品型号，闪存容量从4KB到128KB。实时读写同步操作功能，至少30万次的耐擦写能力，使芯片内置的EEPROM的性能可与外部分立的EEPROM媲美。 STM8S系列产品给开发人员带来产品兼容性...
