供应进口三轴力传感器
| 价 格： | 1800.00 |
品牌:美国MICHIGAN 型号:TR3D-B 种类:测力 材料:混合物 制作工艺:集成 输出信号:模拟型 线性度:0.5（%F.S.）
• 1000 lb, 4000 lb, and 16000 lb capacity多量程选择1000LBF/4000LBF/16000LBF
• Measures forces in three directions in
tension and compression X\Y\Z三轴方向拉压力测试
• High-quality, low-cost load cell• Environmentally protected
• Temperature compensated
• Rugged stainless steel construction
Full Scale Output 4.5 mV/V, nominal, all channels
Sensor 3 four-arm strain gage bridges
Nonlinearity 0.5% of full scale output
Hysteresis 0.05% of full scale output
Repeatability 0.05% of full scale output
Zero Balance Within ± 10.0% of rated output at zero load
Temperature Range, Compensated* 75°F to 200°F (24°C to 93°C)
Temperature Effect on Zero <0.5% full scale
Temperature Range, Useable -40°F to 300°F (-40°C to 149°C)
Excitation Voltage, Maximum 10V DC or AC rms
Insulation Resistance, Bridge/Case Exceeds 5000 MΩ
Standard cable length (bare leads) 10 ft per channel
Weight 0.07 lbs (0.03 kg) 0.60 lbs (0.27 kg) 5.00 lbs (2.27 kg)
- 所属城市：上海 上海市
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈志强
- 电话：21-39197548
- 传真：21-39197548
- 手机：
- QQ ：
供应美国多维三轴力传感器
信息内容：品牌:美国MICHIGAN SCIENTIFIC 型号:TR3D-B 种类:测力 材料:混合物 制作工艺:集成 输出信号:模拟型 线性度:0.5（%F.S.）• 1000 lb, 4000 lb, and 16000 lb capacity 多量程选择454KG/1814KG/7257KG• Measures forces in three directions intension and compression X/Y/Z三轴方向拉压力• High-quality, low-cost load cell• Environmentally protected• Temperature compensated 温度自补偿• Rugged stainless steel constructionFull Scale Output 4.5 mV/V, nominal, all channelsSensor 3 four-arm strain gage bridgesNonlinearity 0.5% of full scale outputHysteresis 0.05% of full scale outputRepeatability 0.05% of full scale outputZero Balance Within ± 10.0% of rated output at zero loadTemperature Range, Compensated* 75°F to 200°F (24°C to 93°C)Temperature Effect on Zero <0.5% full scaleTemperature Range, Useable -40°F to 300°F (-40°C to 149°C)Excitation Voltage, Maximum 10V DC or AC rmsInsulation Resistance, Bridge/Case Exceeds 5000 MΩStanda...

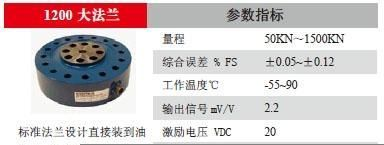

interface LOAD CELL载荷传感器
信息内容：品牌:interface 型号:1200大法兰型 种类:测力 材料:金属 制作工艺:集成 输出信号:模拟型 线性度:0.05~0.12（%F.S.）dzsc/17/7897/17789786.jpg请参考我公司旺铺：http://vinlince.cn.alibaba.com/，也可以联系我们索取详细参数资料，感谢你的关注。
