Cpower(苏州市度飞电气) 铝壳电阻器
| 价 格： | 面议 |
品牌:Cpower 型号:CAR 种类:大功率铝外壳电阻器 性能:高功率 材料:线绕 制作工艺:铝壳封装 外形:长方体 标称阻值:1R-1kR 允许偏差:±5％ 额定功率:500（W） 功率特性:中功率 频率特性:中频 营销方式:厂家直销 产品性质:热销
Cpower(苏州市度飞电气) 铝壳电阻器
产品介绍：CAR系列铝壳绕线电阻器采用铝合金外壳，外形美观，该电阻具有耐气候性、耐振动、安全性优于传统瓷骨架电阻器。电阻器内部是用一种耐高温的有机硅树脂和硅粉作基本材料封装的功率型绕线电阻。易紧密安装，易附加散热器。
用 途： 铝壳绕线电阻广泛应用于电源、变频器、伺服系统等高要求的电气回路中，并能使用于恶劣的工控环境，是电力电子理想的配套产品。
产品名称：CAR型铝壳绕线电阻
型 号：CAR
Type: CAR
规格 Type | 功率 Rated power(w) | 外型图 Product picture | 尺寸/Dimension(mm) | 配线 Connecting Wire(m㎡) | 引线长度 Lead length(mm) | ||||
A | B | C | D | E | |||||
CAR | 60 |
图1. | 115 | 98 | 40 | 20 | × | 2. 5 | 500 |
CAR | 80 | 140 | 123 | 40 | 20 | × | 2. 5 | 500 | |
CAR | 100 | 165 | 148 | 40 | 20 | × | 2. 5 | 500 | |
CAR | 120 | 190 | 173 | 40 | 20 | × | 2. 5 | 500 | |
CAR | 150 | 215 | 197 | 40 | 20 | × | 2. 5 | 500 | |
CAR | 200 | 165 | 147 | 60 | 30 | × | 2. 5 | 500 | |
CAR | 300 | 215 | 197 | 60 | 30 | × | 2. 5 | 500 | |
CAR | 400 | 265 | 247 | 60 | 30 | × | 2. 5 | 500 | |
CAR | 500 | 335 | 317 | 60 | 30 | × | 2. 5 | 500 | |
CAR | 800 |
图2. | 400 | 382 | 61 | 59 | 40. 5 | 2. 5 | 500 |
CAR | 1000 | 400 | 384 | 50 | 107 | 30 | 2. 5 | 500 | |
CAR | 1200 | 450 | 434 | 50 | 107 | 30 | 2. 5 | 500 | |
CAR | 1500 | 485 | 470 | 50 | 107 | 30 | 2. 5 | 500 | |
CAR | 2000 | 550 | 532 | 50 | 107 | 30 | 4 | 500 | |
Tolerance of resistance | % | R≥1Ω ±5% | |||||||
Temperature coefficient | ppm/℃ | R>20Ω,±260 ppm/℃ | |||||||
Insulation resistance | MΩ | R≥100 | |||||||
Protection lever |
| IP54 | |||||||
Climatic category |
| 40/155/21 | |||||||
Temperature change | ℃ | -40——200 | |||||||
Ability to tractive power of terminals | N | 100 | |||||||
Connections |
| Lead fetched out | |||||||
CAR铝外壳电阻器技术参数
Technology parameter of type CAR aluminous crust resistor
电气、机械性能：
Electric and mechanical capability:
Serial number | Item | Capability | Test method |
1 | Resistance and resistance variance | R≥1Ω ±5% | Accordance with JIS-C-5202 5.1 |
2 | Resistor temperature | R>20Ω,±260 ppm/℃ | To run within temperature range |
3 | Rating load | Superficial temperature≤375℃ | Correctly mounted on 300×300×3mm plate aluminium ,accordance with JIS-C-5202 5.4 |
4 | Short term overload | No abnormality | Application of 10 times higher than rating voltage for 5 seconds under the same invironment, accordance with JIS-C-5202 5.5 |
5 | Insulation resistance | No abnormality | Insulation resistance shall be 100 MΩ or more between terminal and case when measured with DC 500V insulation resistance tester, accordance with JIS-C-5202 5.6 |
6 | Withstand voltage | No abnormality | No abnormality shall be found when AC 2500V applied between terminal and case for 1 min, accordance wirh JIS-C-5202 5.7 |
7 | Terminal strength | No abnormal or | A static load of 100N in the direction of terminal for 30 seconds, accordance to JIS-C-5202 6.1.2(1) |
8 | Vibration proof | No abnormal | No mechanical damage shall be observed where vibration applied in a cycle of 10~55HZ 1.5mm wide in the three directions for 1 minute, keeping 2 hours in each direction. |
CAR铝外壳电阻器技术参数
Technology parameter of type CAR aluminous crust resistor
耐久性
Endure capability:
Serial | Item | Capability require | Test method |
1 | Heat tolerance | No colour changed and abnormality except terminal, sign clear | Where the device is heated to 350±5℃with no load for 120±5 minutes , accordance with JIS-C-5202 7.2无负载，加热至350±5℃，120±5分钟，遵守JIS-C-5202 7.2 |
2 | Thermal shock | No abnormality | Apply rating power for 30 minutes,on reaching thermal stability ,within 8-12 s expose to -40±2℃for 15+5 minutes, then constant temperature, 2 hours. accordance with JIS-C-5202 7.3额定电压30分钟，常温，8-12秒放到-40±2℃环境下，15+5分钟。再在常温下放置2小时， 遵守JIS-C-5202 7.3 |
3 | Moisture resistance life | No damage | DC voltage of 100V at 40±2℃at relativehumidity 90-95% shall be applied for 1 hour, then cycled off for less than 0.5 hours，for 500+24 hours, accordance with JIS-C-5202 7.5直流电压100V，40±2℃，相对湿度90-95%，60分钟开，30分钟关，持续500+24小时， 遵守JIS-C-5202 7.5 |
4 | Load life | No damage | Correctly mounted on 300×300×3mm plate aluminium, rating DC voltage shall be applied at 20±7℃, 90 minutes on 30 minutes off, then cycled for 500+24 hours, accordance with JIS-C-5202 7.10放置在300×300×3mm铝板上，20±7℃，额定直流电压，90分钟开，30分钟关，循环500+24小时， 遵守JIS-C-5202 7.10 |
Idea for nature and people
- 所属城市：江苏 苏州
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王茂宝
- 电话：0512-82191829
- 传真：0512-82191829
- 手机：
- QQ ：
交流输入电抗器
信息内容：品牌:CPOWER 型号:CAIL 用途:滤波电抗器 有无铁心:铁心式电抗器 绝缘结构:干式电抗器Cpower(苏州市度飞电气)CAIL输入交流电抗器输入交流电抗器在变频调速系统中为防止因操作交流进线开关产生的过电压和浪涌电流对变频器的冲击，同时亦可以减少它产生的谐波对电网的污染，使之符合相关法规与标准。因此熟悉与变频器配套用的各类电抗器的作用和容量的选择等问题是有必要的。与变频器相配用的有交流输入电抗器、直流电抗器、交流输出电抗器、零序电抗器、正弦波滤波器。电抗器型号Reactor Type图号Picture No适配功率(KW)Adaptedpower额定电流RatedCurrent压降Voltage Drop绝缘等级Insulation Class尺寸(±0.5mm)D长W宽H高安装尺寸L*MCAIL-8A0.75(1.5)5A2%- 4%F、H1508014075*60CAIL-102.57A2%- 4%F、H1508014075*60CAIL-10410A2%- 4%F、H1508014075*60CAIL-155.515A2%- 4%F、H1508014075*60CAIL-207.520A2%- 4%F、H200120170100*75CAIL-301130A2%- 4%F、H210140170112*90CAIL-40B1540A2%- 4%F、H210140170112*90CAIL-501850A2%- 4%F、H210140170112*90CAIL-602260A2%- 4%F、H210140170112*90CAIL-803080A2%- 4%F、H240200210133*120CAIL-11037110A2%- 4%F、H240200210...
输入交流电抗器(CAL 2%压降) --Cpowe

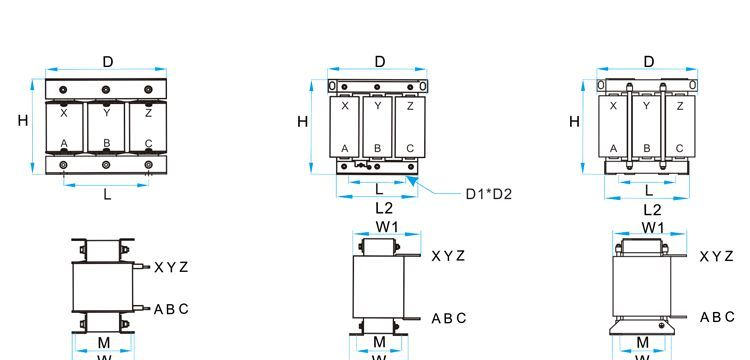

信息内容：品牌:Cpower 型号:输入交流电抗器(CAL 2%压降) 用途:起动电抗器 有无铁心:铁心式电抗器 绝缘结构:干式电抗器dzsc/17/8443/17844339.jpgCAL输入交流电抗器 2%压降 Cpower(苏州度飞电气有限公司)CAL输入交流电抗器在变频调速系统中为防止因操作交流进线开关产生的过电压和浪涌电流对变频器的冲击，同时亦可以减少它产生的谐波对电网的污染，使之符合相关法规与标准。因此熟悉与变频器配套用的各类电抗器的作用和容量的选择等问题是有必要的。与变频器相配用的有交流输入电抗器、直流电抗器、交流输出电抗器、零序电抗器、正弦波滤波器。 ▍额定工作电压:3/380V/50Hz▍电抗器噪音:小于65dB（电抗器水平距离点1米测试）▍额定绝缘水平:5KV/min F级▍抗电强度:铁芯-绕组 3000VAC/50Hz/10mA/60s无飞弧击穿▍产品执行标准:IEC289:1987电抗器 GB10229-88电抗器(eqv IEC289:1987) JB9644-1999半导体电气传动用电抗器 dzsc/17/8443/17844339.jpg 电抗器型号Reactor Type图号Pic No.适配功率(KW)Adapted Power额定电流(A)Rated Current额定电感量(mH)Rated inductance外型尺寸/size (mm)DWHLMW1L2D1*D2CAL-4312-0005-EISA P...
