供应太阳能光伏连接器MC3配件三通连接器
| 价 格： | 面议 | |
| 型号/规格： | pv-301 | |
| 品牌/商标： | BRT |
▲产品概述 Products Introduction:

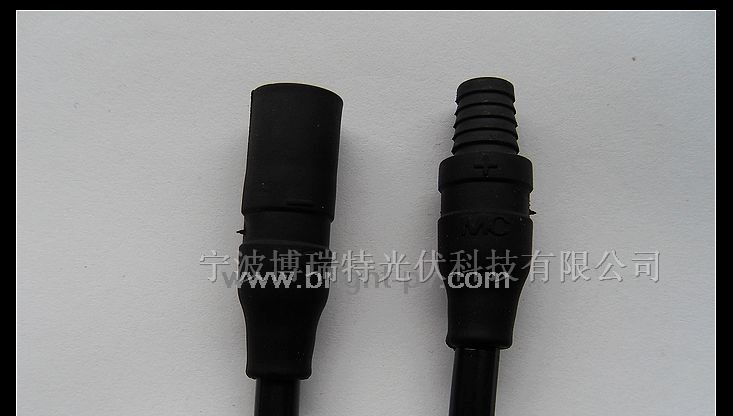

PV-BRT-MC3太阳能电池组件连接器，采用内鼓形冠簧接触，公母头插拔带有自锁机构，使电气接触与连接更加牢固。连接器母头（负极），设有下对称的按键。使得连接器插拔更加方便。不需要借助其它工具，插拔不易损坏插接扣。与同类产品相比，技术更先进，插、拔更快捷。符合：DIN V VDE V 0126-3。
PV-BRT-8301 PV Connector adopts crowned spring and has automatic locking mechanism on plugs to ensure solid connection between contact and connector. Connector plug (negative) is equipped with buttons that are symmetric at the bottom to ensure the convenience of removal. Such removal does not need any extra instruments, therefore, can make sure that the plug is intact. This advanced product, with easy usage, is more convenient to use than similar products. In addition, the product also confirms to DIN V VDE V 0126-3.
▲主要技术规格 Main Technical Specification:
|
主要技术规格： |
Main Technical Specification: |
|
● 工作电压：1000V DC |
Maximum working voltage: DC1000V |
|
● 工作电流：16A |
Rated Current : 16A |
|
● 阻燃等级：UL94-V0 |
Flame class: UL94-V0 |
|
● 污染等级：2级 |
Pollution degree: 2 |
|
● 连接电阻：≤5mmΩ |
Contact resistance: ≤5mmΩ |
|
● 外壳防护等级：IP67 |
Shell Protection degree: IP67 |
|
● 连接线规格：4mm2 |
Specification of Connecting Line: 4mm2 |
|
● 使用温度：-40～+85℃ |
Ambient temperature range: -40～+85℃ |
|
● 安全等级：classⅡ |
Safety Level: classⅡ |
|
● 插入力：≤60N |
Insertion force: ≤60N |
|
● 拔出力：≥60N |
Withdrawal force: ≥60N |
▲主要特性 Main Features:
有强烈的抗老化、耐紫外线功能，符合室外恶劣环境条件下的使用；线缆的连接采用铆接与紧箍方式；公母头插拔便捷，不需要借助其它工具，插拔不易损坏插接扣。
With excellent aging resistance and UV endurance, it can be used in harsh environment. The cable connection adopts means of rivet and lock. It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs.
