供应120W的DC-ATX电源
| 价 格： | 面议 | |
| 型号/规格： | PPN-12 | |
| 品牌/商标： | 威力源 |

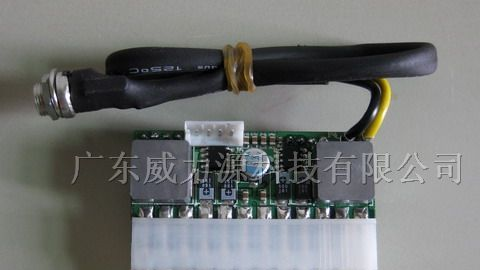

本产品为智能电源CARPC电源-DC/DC电源,CARPC电源-DC/DC电源是为MINI-ITX主板定身打造的电源，用来给VIA威盛以及ECS精英Mini-ITX主板供电.
本产品特点如下：
1：12DC输入，高效率, 薄尺寸
2：过压、过流保护功能
3：标准20PIN ATX输出
产品型号：PPN-12-120
DC/DC ATX power supply for automobile application, 12VDC input.
+5V,+12V,+3.3V,-12V,+5VSB and PG (power good signal) outputs.
规格:
1.The smallest 12V DC to DC power supply
2. convertor in the world.
3.Adopt industrial solid capacitor, ideal for being used in
4. harsh evironment
5.High performance with high heat-stand feature, more realiable
6.Fanless DC-DC solution for 100% mute operating .
7.Compact design, special for mini-itx and 1U case.
Output Voltage Regulation
Output Min Load(A) MAX Load(A) Regulation
+12V 0.1 6 ±5%
+5V 0.1 5 ±5%
+3.3V 0.1 5 ±5%
-12V 0 0.1 ±15%
+5VSB 0.1 1 ±5%
参数:
1.Dimensions(mm): L145x W28x20H
2.DC Input: 12V
3.DC Output : 120W
4.Input Current: Max. 15A
5.Efficiency: above 92%
6.MTPF: 100,000H
7.Operating Temperature: 0℃ ~ 60℃
8.Storage Temperature: -40℃ ~ 70℃
该电源可驱动945主板 CPU 双核3G 以下,2G667 内存 160G硬盘 DVD光驱都能轻松驱动,前提是外接12V 6-10A 的适配器
- 所属城市：广东 东莞
- [联系时请说明来自维库仪器仪表网]
- 联系人： 濮先生
- 电话：0755-21912232
- 传真：0769-86853990
- 手机：18978908317
- QQ ：
供应150W直插DC-ATX电源
信息内容：产品型号：PPH-12-150DC/DC ATX power supply for automobile application, 12VDC input.+5V,+12V,+3.3V,-12V,+5VSB and PG (power good signal) outputs.规格:1.The smallest 12V DC to DC power supply2. convertor in the world.3.Adopt industrial solid capacitor, ideal for being used in4. harsh evironment5.High performance with high heat-stand feature, more realiable6.Fanless DC-DC solution for 100% mute operating .7.Compact design, special for mini-itx and 1U case.Output Voltage Regulation 参数:1.Dimensions(mm): L54x W40x16H 2.DC Input: 12V3.DC Output : 150W +12V 0 7 ±5%4.Input Current: Max. 18A +5V 0 7 ±5%5.Efficiency: above 92% +3.3V 0 7 ±5%6.MTPF: 90,000H -12V 0 0.1 ±15%7.Operating Temperature: 0℃ ~ 75℃ +5VSB 0 2 ±5%8.Storage Temperature: -40℃ ~ 70℃9.负载长期工作时，需风扇，无风扇时，只能工作30秒，长期工作负载减至80%。
