供应光伏连接器
| 价 格： | 面议 |
品牌:宏欣旭 型号:PV-CT001 配件名称:太阳能电池连接器 额定电压:DC 1000V 产品认证:TUV

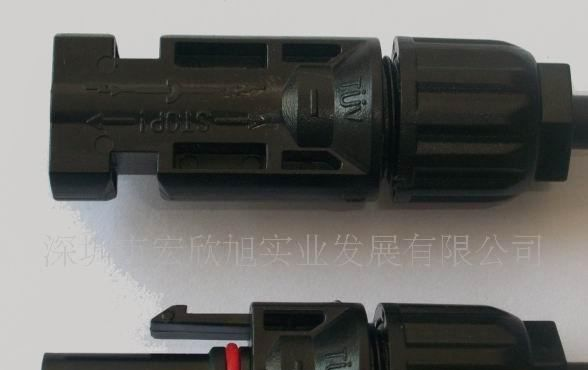

| Photovoltaic Connector: | |||
| PV-CT001 | |||
| 主要技术参数 | Main technical parameters： | ||
| 适合组件电流 | Rated Current： | 25A | 主要特性： 1. 具备卓越的耐高低温、防火、抗老化和耐紫外线性能，能满足室外恶劣环境条件下长期使用要求。 2. 优异的密封性能，防水防尘等级高达IP67. 3. 采用鼓形弹片接插方式和独特的紧固技术，拆装自如、简单快捷、连接更加安全牢靠。 4. 公母头插拔带有自锁机构，电气连接充分可靠，开合自如。 5. 具有广泛的适用性，可与MC4完全互插和匹配。 Main features: 1. Possess excellent resistance to high temperature, fire protection, anti-aging and anti-UV properties, to meet the outdoor long-term use under harsh environmental conditions require. 2. Excellent sealing performance, waterproof and dustproof rating up to IP67. 3. Use of drum-shaped shrapnel Plug-way and unique fastening technology, disassembly ease, simple and quick to connect even more safe and secure. 4. Male and female head swap with a self-locking, electrical connections fully reliable, open and close freely. 5. Has broad applicability, can be inserted with the MC4 and match each other completely |
| 额度电压 | Rated Voltage: | DC 1000V | |
| 防护程度 | Protection Degree: | IP67 | |
| 保护等级 | Protection Class: | Ⅱ | |
| 温度范围 | Temperature Range: | -40℃to 85℃ | |
| 线径尺寸 | Max.Current Section: | 4mm2 | |
| 接触电阻 | Contact Resistance: | ＜5mΩ | |
| 难燃度 | Flame Class: | UL94-V0 | |
| 导电材料 | Contact Material: | Copper | |
| 绝缘材料 | Insulation Material: | PPO | |
| 符合标准 | Standard: | DIN V VDE V 0126-3:2006 | |
| 认证 | Authentication: | Tüv RoHS | |
