FI-R系列21/31/41/51针板端连接器

价格：

0.85

详细介绍
企业详情

型号:LVDS0.5-SMT-xxBS-3.75 接头形式:SMT 应用范围:电脑接口类型:USB

0.5 mm pitch connector for internal connection of digital devices FI-R series

	FI-R Series

Feature

Terminal pitch: 0.5 mm, Connector height: 3.8 mm,
Compact design suitable for 21, 31, 41, 51 pos.
Stable mating condition with large mating guides on a plug side connector.
Better PCB holding strength of a board side connector with hold downs to be soldered.
Impedance matching: 100 ohms
Choices from, with and without shell, angle and straight type for a board side with common board pattern.
Mechanical lock attached
Choices of cables from discrete wires for crimping, fine coaxial wires for soldering and FFC etc., depending on a purpose.
VESA standard connector for LCD interface of LCD television

NEWS

General specification

Number of contacts	21, 31, 41, 51
Rated current	0.8 Amp max. per terminal
Dielectric withstanding voltage	500 VACr.m.s. (for 1 minute)
Insulation resistance	100 megohms min.
Contact resistance	40 milliohms max.
Applicable wire
Operating temperature range	-40 Cel to +80 Cel

955Kbytes

425Kbytes

骏丰电子有限公司连接器事业部

公司信息未核实

所属城市：江苏苏州
[联系时请说明来自维库仪器仪表网]
联系人： 李
电话：0512-61233120
传真：0512-61233120
手机：
QQ ：

公司相关产品

1.0FPC卧贴不带锁连接器(图)

信息内容：

品牌:HCONN 型号:1.0FPC卧贴不带锁连接器种类:FFC/FPC1.0FPC卧贴不带锁连接器

详细内容>>

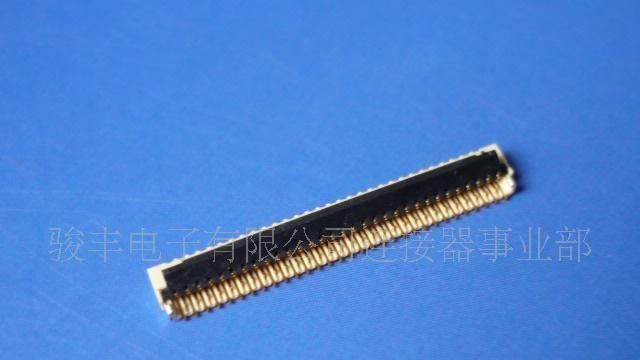

0.3FPC掀盖式连接器（HRS替代品)
