供应4寸TFT 液晶屏支持CCIR656和24bit
| 价 格： | 70.00 | |
| 型号/规格： | 4寸TFT | |
| 品牌/商标： | 天富 |
屏的初始化代码：
/*
tf040spi 如下：
*/
// 656mode
TF_SPIWrite(0x05,0x04);
TF_SPIWrite(0x00,0x07);
TF_SPIWrite(0x01,0xaa);
TF_SPIWrite(0x0b,0x80);
TF_SPIWrite(0x2f,0x7d);
TF_SPIWrite(0x16,0x00);
TF_SPIWrite(0x17,0x54);
TF_SPIWrite(0x18,0x54);
TF_SPIWrite(0x19,0x43);
TF_SPIWrite(0x1a,0x54);
TF_SPIWrite(0x2b,0x01);
TF_SPIWrite(0x00,0x46);
TF_SPIWrite(0x04,0x68); /
TF_SPIWrite(0x06,0x8f);
TF_SPIWrite(0x07,0xe0);
TF_SPIWrite(0x0c,0x04);
// rgbmode
TF_SPIWrite(0x05,0x04);
TF_SPIWrite(0x00,0x07);
TF_SPIWrite(0x01,0xaa);
TF_SPIWrite(0x0b,0x80);
TF_SPIWrite(0x2f,0x7d);
TF_SPIWrite(0x16,0x00);
TF_SPIWrite(0x17,0x54);
TF_SPIWrite(0x18,0x54);
TF_SPIWrite(0x19,0x43);
TF_SPIWrite(0x1a,0x54);
TF_SPIWrite(0x2b,0x01);
TF_SPIWrite(0x04,0x08); /
TF_SPIWrite(0x06,0x8f);
TF_SPIWrite(0x07,0x3f);
TF_SPIWrite(0x0c,0x04);
//end
支持CCIR656 和24位RGB接口 ，内置LED 背光,16V 。欢迎索取资料。另外有配套的视频解码板QT40TF12提供。
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 张小姐
- 电话：0755-27869935
- 传真：-
- 手机：15112624804
- QQ ：

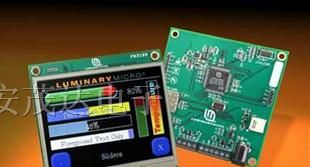

供应3.5寸触摸屏,单片机MCU/MPU接口支持HMI 模块
信息内容：液晶屏适用品牌: 其它品牌 液晶屏适用范围: 其它液晶屏 Standard LCD Module320 x RGB x 240 Dots3.5” 262K colors TFT displayWide temperatureWith white LED backlightWith Touch Panel 3.5”(diagonal), 320 x RGB x 240 dots, 262K colors, Transmissive, TFT LCD module.• Viewing Direction: 12 o’clock.• Driving IC: SSD2119 or equivalent TFT controller/driver.• 18-bits data bus (parallel RGB interface/8080 parallel system interface). • With Touch Panel.• Logic voltage: 3.3V (typ.). Pin No. Symbol Description1-2 LED_K3-4 LED_A Power supply for LED backlight5 GND Power supply (system ground)6 XR7 YD8 XL9 YUTerminal of touch panel.10 GND Power supply (system ground)11-13 NC No connection14 RESET System reset pin15 CS Chip select pin16 SPCLK Clock pin of serial interface17 SDA-SDI Data pin of serial interface18-19 NC No connection20-25 B[0-5] Blue data 6-bit/18bit bi-directional (D0-D5)26-27 NC No connection28-33 G[0-5] Green data 6-bit/18bit bi-directiona...
