1310激光发射机

价 格: 350.00

品牌:航天 接口类型:FC/APC 类型:视频光端机

dzsc/17/3647/17364706.jpg
名称:光发射机点击↑看大图
详 细 说 明

特点介绍:
? 采用高线性光隔离DFB激光器,内置RF驱动放大及控制电路;
? RF自动增益控制电路(AGC)和预失真补偿电路;
? 具有激光器光功率和温度稳定控制电路,可长期稳定的处于工作状态;
? 关键控制参数(输出功率、激光器温度、偏置电流等)由LCD全状态数字显示;
? 整机电源设有热备份
? 设有RS-232工业标准接口及485微机接口,供远程网络管理及监控使用。

SPECIFICATIONS:
? It adopts highly linear and optical isolation DFB laser instrument and has built-in Rf driving amplifier and corresponding controlling circuits
? With RF automatic gains controlling and distortion pre-compensation circuits;
? It permanently works at optimal status because of laser power & temperature control circuit;
? The key controlling parameters (laser power , temperature of the laser instrument ,bias current .etc) can be displayed at LCD with whole state automatic and digital technology;
? There is hot backup for the whole power;
? It consists of RS-232 industrial standard interface and RS-485 computer interface for long-distance network management and supervision.

技术参数Function Parameter

型号Type 参数ParameterZYOT75-□□
输出光功率(mW) Output Optical Power 见下表 see the form below
工作频率(MHz) Bandwidth45-(750)862
标称光波长(nm) Nominal Optical Wave Length1310±20
光连接器形式 Fiber Connector VersionFC/APC(或用户指定 or specified by user)
带内平坦度(dB) Flatness Band±0.75
射频输入阻抗(Ω) RF Input Impedance75
射频输入反射损耗(dB) Return Loss Input RF Port≥16
射频输入电平(dBμV) RF Input Level75-85
载波复合三次差拍比(dB) CTB65
载波复合二次差拍比(dB) CSO61
载噪比 CNR 见下表 see the form below
供电电压(V) Supply VoltageAC110-250
外形尺寸(mm) Dimension483×385×44
重量kg Weight

载噪比性能参数 CNR Parameter(84路PAL-D,CTB=65dB,CSO=61dB)

型号 Type输出光功率 OutputOptical Power(mW) 光链路损耗(dB) Optical Loss
3456789 10 11 12 13 14 15 1617
OT-044-552.652.251.851.451.150.549.848.9
OT-066-7 54.554.153.553.052.051.050.04948.5
OT-088-9 54.153.753.252.651.951.150.249.248.0
OT-1010-11 54.554.053.052.552.051.050.049.549.0
OT-1212-13 56.055.054.053.052.051.050.049.048.4
OT-1414-15 56.055.054.053.052.051.050.049.548.5
OT-1616-17 55.554.553.552.552.051.050.049.048.0
OT-1818-19

临沂有线电视器材经营部
公司信息未核实
  • 所属城市:山东 临沂
  • [联系时请说明来自维库仪器仪表网]
  • 联系人: 刘辉
  • 电话:0539-2805782
  • 传真:0539-2805782
  • 手机:
  • QQ :
公司相关产品

航天有线电视放大器

信息内容:

产品型号:7530 传输带宽范围:45-750(MHz) 输出路数:2 增益:38(dB) 生产厂家:湖南航天 输入路数:1 dzsc/17/4315/17431533.jpg名称:单向干线放大器点击↑看大图 详 细 说 明特点介绍:? 适用于单向CATV系统干线放大和延长放大;? 采用进口集成电路,频带宽,增益高,噪声低,失真小,带内不平度小;? 手动增益和斜率控制;? 输出分支、分配可选;? AC30-60V集中供电或AC220V独立供电可选择;? 防雨、防尘、散热快、屏蔽性能好;? 高效率R型变压器供电;? 可选择两级斜率控制或温度补偿插件。SPECIFICATIONS:? Suitable for trunk amplification and extending amplification in single-way CATV system ;? Imported IC, wide working band, high gain, low noise, small distortion, good flatness within-the-band;? Manual gain control and slope control;? With the function of the choice of tap or splitter output;? Provide two power supply method,centralized(AC30-60V) or individual(AC220V);? Waterproof and dustproof design, fast heat dissipation and fine screening characteristic;? Efficient R-transformer power supply;? Two degrees...

详细内容>>

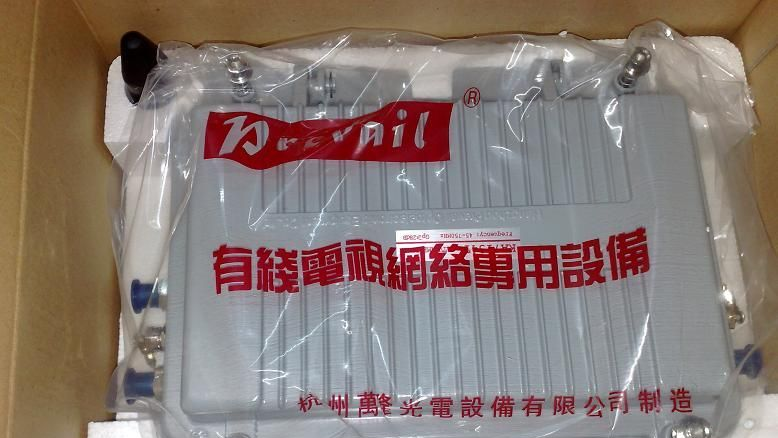

供应万隆7134有线电视信号放大器(图)
