供应500V,15A N-CH MOS管2SK3934
| 价 格： | 面议 | |
| 型号/规格： | 2SK3934/K3934 | |
| 品牌/商标： | TOS | |
| 封装形式： | TO-220F | |
| 环保类别： | 普通型 | |
| 安装方式： | 直插式 | |
| 包装方式： | 散装 | |
| 功率特征： | |
供应500V,15A N-CH MOS管2SK3934
| Technical/Catalog Information | 2SK3934 |
| Vendor | Toshiba |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Type | MOSFET N-Channel, Metal Oxide |
| Drain to Source Voltage (Vdss) | 500V |
| Current - Continuous Drain (Id) @ 25° C | 15A |
| Rds On (Max) @ Id, Vgs | 300 mOhm @ 7.5A, 10V |
| Input Capacitance (Ciss) @ Vds | 3100pF @ 25V |
| Power - Max | 50W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 62nC @ 10V |
| Package / Case | 2-10U1B |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | 2SK3934 K3934 |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：

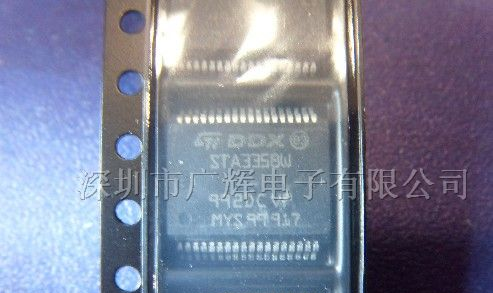

供应STA335BW数字功率放大器
信息内容：供应STA335BW数字功率放大器
供应交流-直流(AC-DC)离线控制器电源IC/17A06
信息内容：特性 Current-Mode with adjustable skip-cycle capability Built-in internal ramp compensation Auto-recovery internal output short-circuit protection Full latch-off if Adjustment pin is brought high Extremely low no-load standby power Internal temperature shutdown 500mA peak current capability Fixed frequency versions at 65kHz, 100kHz and 133kHz Direct optocoupler connection Internal Leading Edge Blanking SPICE models available for TRANsient and AC analysis Internal 1ms Soft start (A version only) Limited Duty Cycle to 50% (A version only) Pb-Free Packages are Available 应用 High power AC/DC converters for TVs, set-top boxes etc Offline adapters for notebooks Telecom DC-DC converters All power supplies 详见：http://www.onsemi.cn/PowerSolutions/product.do?id=NCP1217A
