供应BHD51系列防爆接线盒（ⅡB、ⅡC、e）
| 价 格： | 1.00 | |
| 型号/规格： | BHD51 | |
| 品牌/商标： | 柯铭电器 |
BHD51系列防爆接线盒（ⅡB、ⅡC、e）
适用范围Application
1区、2区危场所。
IIA、IIB、IIC类爆竹性气体环境.
*如要求IIC类或增安型请注明.
Can be used in Zone 1 and Zone 2one 2 dangerous places.
Can be used in IIA,IIB 、IICgroup explosive atmosphere.
*Please note if want IIC group safety-increased type
型号含义Model implication
产品特点 Features
表面喷塑.
The shellis of diecasted AI-alloywithplastic-sprayed sunface.
进出线口有多种方式及规格. 铸铝合金外壳,压铸成形
Inlet or outlet has many kinds of modes and specifications.
进出线口螺纹可特制.
Thread specification can be specially designed.
符合GB3836-2000,IEC60079标准要求.
Suitable for GB3836-2000,IEC60079 standard request.
技术参数 Technical parameters
ＡＨ 系列隔爆型接线盒代号，外形及名称一览表
AH seriesflame-proof junction box code,outline and descriptions as the following table.
代号
Code 外形
Outline 名称
Description 代号Code
外形Outline 名称
Description
A 一通平 1entry in horizon F 一通吊１entry in horizon
B 直二通平2 direct entries in horizon G 直二通吊２direct entries in horizon
C 三通平 3 entries in horizon H 三通吊 3 entries in horizon
D 四通平４entries in horizon I 四通吊 ４entries in horizon
E 直角二通平２perpendicular entries,in horizon J 直角二通吊2 perpendicular entries,in horizon
注：１.“o”表示平盖，“Ｏ”表示吊盖。
２.在正常情况下，吊盖与通头同口径，如特殊要求可特制。
３.通头一般为圆柱管螺纹Ｇ１／２"、Ｇ１"如特殊要求可特制。
标注举例：
１.CBJH-3/4B含义：AH隔爆型接线盒，管螺纹为Ｇ3/4"直二通平盖。
2.CBJH-1/2含义：AH隔爆型接线盒，管螺纹为G1/2"直角二角吊盖。
Note:1"O"horzontal cover,"O"hung cover.
２ .Generally the diameter of entry is equal to that of hung cover hole.special requirement can be available.
For Example:
1.CBJH-3/4B means:AH explosion-proof junctino box,pipe thread G3",G3",G1",also special requirement can be made.
２.CBJH-1/2Jmeans:AH explosion-proof juncton box,pipe thread G1/2",2perpendicular entries with hung cover.
主要技术参数 Main technical parameters
额定电压（V）Rated volage 额定电流（A）Rated current 防爆防标Ex-mark 管螺纹规格（G"）Pipethread specification 防护等级Protectiongrade
380 20 Exd II BT6
*Exd II CT6
*Exe II T5 1/2 、3/4 、1 IP54
*IP55
外形示意图 Main technical parameters
II B类，增安型接线盒外形示意
IIB Group,safety-increased junction box outline sketch map
II C 类接线盒外形示意
II C Group junction box outline sketch map
II B类，增安型接线盒外形尺寸 II C类，接线盒外形尺寸
Dimension of IIB group,safety-increased type junction box Dimension of IIC group junction box
电缆外径（Φmm）Ｃable’s outer diameter 管螺纹（Ｇ"）Ｐipe thread A B C D 规格Specification L H H1
8-10 1/2 166 108 104 68 G1/2" 175 85 110
8-14 3/4 168 108 105 68 G3/4" 175 85 110
12-17 1 170 108 105 68 G1" 175 85 110
- 所属城市：浙江 温州
- [联系时请说明来自维库仪器仪表网]
- 联系人： 曾慧
- 电话：0577-62785596
- 传真：0577-61780759
- 手机：13868763075
- QQ ：

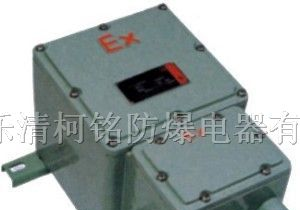

供应BAB系列防爆变压器（ⅡB）
信息内容：BAB系列防爆变压器（ⅡB） 适用范围Application 区、2区危场所.IIA、IIB、类爆竹性气体环境.Can be used in Zone 1 and Zone 2one 2 dangerous places.Can be used in IIA,IIB 、group explosive atmosphere.产品特点 Features 铸铝合金外壳,表面喷塑.电缆或钢管布线均可.符合GB3836-2000,IEC60079标准要求.The shell is of diecsated AI-alloy with plastic-sprayed surface.Steel tube wiring or cable wiring.Suitable for GB3836-2000,IEC60079 standard request. 型号含义Model implication 订货须知 Notice if ordering订货时请变压器的容量,初级电压,次级电压,以及出线口的规格及数量. Please note the capacity,primary ad secondary voltage of thetransformer and outlet specifications and number if having an order.主要技术参数 Main technical parameters 产品型号Type 初级容量（KVA)Primary capacity 初级电压（V）Primary voltage 次级电压（V）Secondary voltage 防爆标志Ex-mark 进线口螺纹（G"）Inlet’s thread 电缆外径（Φ,mm）Cable’s outer diameter 质量(kg)Mass 进线Inlet 出线Outlet CBB-0.5- 0.5 220/380 6.3、12、24 Exd I...

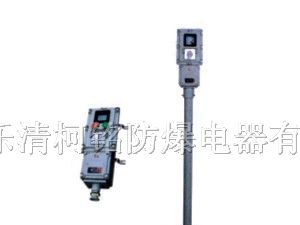

供应BZC51系列防爆操作柱（ⅡB）
