双高速 低压差 CMOS电压稳压器 LN6401

 MAIN PARAMETERS
         Vin=2.0-10.0V   Iout=300mA   Iss=25uA   Vdrop=200@100(mV@mA@V)   PSRR=70@1KHz(dB)

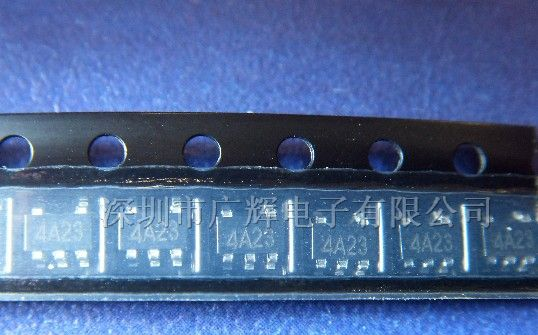

         Package:SOT-23-6L
         Pin to Pin Compatible:XC6401

dzsc/17/3080/17308069.gif DESCRIPTION
         The LN6401 series are highly accurate, Dual, low noise, CMOS LDO voltage regulators. Performance features of the series includes low output noise, high ripple rejection ratio, low dropout and very fast turn-on times.
         The LN6401 includes a reference voltage source, error amplifiers, driver transistors, current limiters and phase compensators internally. TheLN6401’s current limiter’s foldback circuit also operates as a short protect for the output current limiter. The output voltage for each regulator is set independently by laser trimming. Voltages are selectable in 50mV steps within a range of 1.3V to 5.0V.The EN function allows the output of each regulator to be turned off independently, resulting in greatly reduced power consumption. The LN6401 series is available in the SOT-23-6.


dzsc/17/3080/17308069.gif FEATURES
         Output Voltage Range: 1.3V to 6.0V (selectable in 50mV steps)
         Highly Accurate: ± 2%
         Dropout Voltage: 200mV @ 100mA (3.0V type)
         High Ripple Rejection: 70dB (1 kHz)
         Low Power Consumption : 25μA (TYP.)
         Maximum Output Current: 300mA（VIN≥VOUT+1v）
         Standby Current: Less than 0.1μA
         Internal protector: Current limiter and short protector
         Small packages: SOT-23-6 and other required


dzsc/17/3080/17308069.gif APPLICATIONS
         Mobile phones
         Cordless phones and radio communication equipment
         Cameras, Video cameras
         Portable games
         Portable AV equipment
         PDAs
