供应MP50005W贴片二极管
| 价 格： | 面议 | |
| 型号/规格： | MP50005W | |
| 品牌/商标： | 搏扬 | |
| 封装形式： | 贴片 | |
| 环保类别： | 普通型 | |
| 安装方式： | 贴片式 | |
| 包装方式： | 散装 | |
| 功率特性： | | |
| 频率特性： | | |
| 整流电流： | | |
| 反向击穿电流： | |
|
BRIDGE RECTIFIERS dzsc/17/2311/17231131.gif 2902 MP50W.pdf | ||||||||
| TYPE |
Maximum Recurrent |
Maximum Average Forward Rectified Current IO A |
MaximumPeak Forward |
Maximum |
Maximum Forward Voltage |
Maximum Forward Voltage |
||
| MP50005W | 50 | 50.0 | 500 | 10.0 | 25.0 | 1.1 | ||
| MP5001W | 100 | 50.0 | 500 | 10.0 | 25.0 | 1.1 | ||
| MP5002W | 200 | 50.0 | 500 | 10.0 | 25.0 | 1.1 | ||
| MP5004W | 400 | 50.0 | 500 | 10.0 | 25.0 | 1.1 | ||
| MP5006W | 600 | 50.0 | 500 | 10.0 | 25.0 | 1.1 | ||
| MP5008W | 800 | 50.0 | 500 | 10.0 | 25.0 | 1.1 | ||
| MP5010W | 1000 | 50.0 | 500 | 10.0 | 25.0 | 1.1 | ||
- 所属城市：广东 广州
- [联系时请说明来自维库仪器仪表网]
- 联系人： 周建忠 先生
- 电话：0020-81859010
- 传真：0020-81920559
- 手机：13802747878
- QQ ：

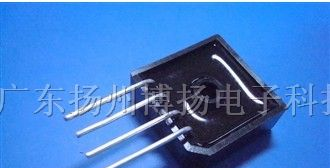

供应KBPC10005W贴片二极管
信息内容：BRIDGE RECTIFIERS dzsc/17/2311/17231132.gif 2002 KBPC10W.pdf TYPE Maximum RecurrentPeak Reverse VoltageVRRMV Maximum AverageForward RectifiedCurrentIOA MaximumPeak Forward Surge Current 8.3ms SingleHalf Sine-WaveIFSMA MaximumDC ReverseCurrent@VRRMIRµ A Maximum Forward Voltage@TA = 25℃IFA Maximum Forward Voltage@TA = 25℃VFV KBPC10005W 50 10.0 240 10.0 5.0 1.1 KBPC1001W 100 10.0 240 10.0 5.0 1.1 KBPC1002W 200 10.0 240 10.0 5.0 1.1 KBPC1004W 400 10.0 240 10.0 5.0 1.1 KBPC1006W 600 10.0 240 10.0 5.0 1.1 KBPC1008W 800 10.0 240 10.0 5.0 1.1 KBPC1010W 1000 10.0 240 10.0 5.0 1.1

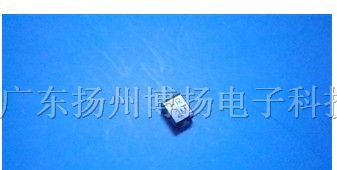

供应3.0 AMPERES/SS3X贴片二极管
信息内容：产品参数 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS dzsc/17/2311/17231153.gif 1013 SS3X.pdf TYPE Maximum RecurrentPeak Reverse VoltageVRRMV Maximum AverageForward RectifiedCurrentIOA MaximumPeak Forward Surge Current 8.3ms SingleHalf Sine-WaveIFSMA MaximumDC ReverseCurrent@VRRMIRµ A Maximum Forward Voltage@TA = 25℃IFA Maximum Forward Voltage@TA = 25℃VFV SS32 20 3.0 80 1.0 3.0 0.45 SS33 30 3.0 80 1.0 3.0 0.55 SS34 40 3.0 80 1.0 3.0 0.55 SS35 50 3.0 80 1.0 3.0 0.70 SS36 60 3.0 80 1.0 3.0 0.70 SS38 80 3.0 80 1.0 3.0 0.85 SS310 100 3.0 80 1.0 3.0 0.85
