供应6.0AMPERES/ KBJ6X贴片二极管
| 价 格： | 面议 | |
| 型号/规格： | 6.0AMPERES/ KBJ6X | |
| 品牌/商标： | 搏扬 | |
| 封装形式： | 贴片 | |
| 环保类别： | 普通型 | |
| 安装方式： | 贴片式 | |
| 包装方式： | 散装 | |
| 功率特性： | | |
| 频率特性： | | |
| 整流电流： | | |
| 反向击穿电流： | |
|
BRIDGE RECTIFIERS dzsc/17/2311/17231111.gif 1603 KBJ6X.pdf | ||||||||
| TYPE |
Maximum Recurrent |
Maximum Average Forward Rectified Current IO A |
MaximumPeak Forward |
Maximum |
Maximum Forward Voltage |
Maximum Forward Voltage |
||
| KBJ6005 | 50 | 6.0 | 175 | 5.0 | 3.0 | 1.1 | ||
| KBJ601 | 100 | 6.0 | 175 | 5.0 | 3.0 | 1.1 | ||
| KBJ602 | 200 | 6.0 | 175 | 5.0 | 3.0 | 1.1 | ||
| KBJ604 | 400 | 6.0 | 175 | 5.0 | 3.0 | 1.1 | ||
| KBJ606 | 600 | 6.0 | 175 | 5.0 | 3.0 | 1.1 | ||
| KBJ608 | 800 | 6.0 | 175 | 5.0 | 3.0 | 1.1 | ||
| KBJ610 | 1000 | 6.0 | 175 | 5.0 | 3.0 | 1.1 | ||
- 所属城市：广东 广州
- [联系时请说明来自维库仪器仪表网]
- 联系人： 周建忠 先生
- 电话：0020-81859010
- 传真：0020-81920559
- 手机：13802747878
- QQ ：
供应P600J贴片二极管
信息内容：SLICION RECTIFIERS dzsc/17/2311/17231112.gif 0105 P600X.pdf TYPE Maximum RecurrentPeak Reverse VoltageVRRMV Maximum AverageForward RectifiedCurrentIOA MaximumPeak Forward Surge Current 8.3ms SingleHalf Sine-WaveIFSMA MaximumDC ReverseCurrent@VRRMIRµ A Maximum Forward Voltage@TA = 25℃IFA Maximum Forward Voltage@TA = 25℃VFV P600A 50 6.0 60 10 6.0 0.95 P600B 100 6.0 60 10 6.0 0.95 P600D 200 6.0 60 10 6.0 0.95 P600G 400 6.0 60 10 6.0 0.95 P600J 600 6.0 60 10 6.0 0.95 P600K 800 6.0 60 10 6.0 0.95 P600M 1000 6.0 60 10 6.0 0.95

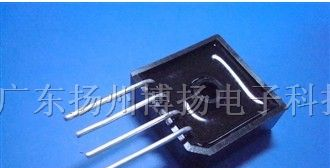

供应6.0AMPERES/ KBPC6X贴片二极管
信息内容：BRIDGE RECTIFIERS dzsc/17/2311/17231113.gif 1904 KBPC6X.pdf TYPE Maximum RecurrentPeak Reverse VoltageVRRMV Maximum AverageForward RectifiedCurrentIOA MaximumPeak Forward Surge Current 8.3ms SingleHalf Sine-WaveIFSMA MaximumDC ReverseCurrent@VRRMIRµ A Maximum Forward Voltage@TA = 25℃IFA Maximum Forward Voltage@TA = 25℃VFV KBPC6005 50 6.0 175 10.0 3.0 1.0 KBPC601 100 6.0 175 10.0 3.0 1.0 KBPC602 200 6.0 175 10.0 3.0 1.0 KBPC604 400 6.0 175 10.0 3.0 1.0 KBPC606 600 6.0 175 10.0 3.0 1.0 KBPC608 800 6.0 175 10.0 3.0 1.0 KBPC610 1000 6.0 175 10.0 3.0 1.0
