供应TRENDCHIP集成电路IC：TC3085-TQ64-EPG
| 价 格： | 面议 | |
| 型号/规格： | TC3085-TQ64-EPG | |
| 品牌/商标： | TRENDCHIP |
TRENDCHIP原装现货:TC3085-TQ64-EPG
TC3085 ADSL2/2+ analog front-end is a high performance CMOS device that provides a complete
solution for the front-end requirements of ADSL, ADSL2 and ADSL2+. This level of functionality was
previously available only with multiple devices. TC3085 is designed for Asymmetrical Digital Subscriber
Line Customer Premises Equipment (ADSL CPE). It support all ADSL standards (ADSL1/2/2+), including
Annex A, B, I, J & M.
TC3085 integrates the digital-to-analog converter (DAC), analog-to-digital converter (ADC), digital
controller oscillator (DCXO), line driver and filters, RX programmable gain/attenuation (PGA) and filters,
and digital interface. TC3085 features a highly integrated signal path with advanced on-chip-filtering. A
13-bit linear DAC precedes the fully integrated line driver, and low pass filter. The received path consists
of programmable low noise preamplifiers, filters, and a 14-bit linear ADC.
Features
Support all ADSL standards (ADSL1/2/2+), including Annex A, B, I, J & M.
Support Reach-Extended ADSL2.
14-Bit ADC/13-Bit DAC
Integrated 7V CMOS Line Driver
Integrated Adaptive Line Termination
Integrated 12-Bit DCXO
Tunable TX/RX Out-of-Band Continuous-Time Filters
3.3V/7V Analog Power Supplies 3.3V Digital Power Supply
Minimum External Components
Support Co-existence with ISDN
Support integrated Dying Gasp function
Support integrated Power on reset function
64-Pin TQFP Package
Operation temperature range 0 ~ 70 degree C
Applications
External ADSL Modems
Soft ADSL2 Modems
ADSL Termination for Network Interface Devices
我们优势销售TRENDCHIP+ICPLUS+ELPIDA+ISSI，MARVELL,BROADCOM，ATHEROS的网通方案，部分型号如下：
未尽型号，以及索取详细PDF，设计资料等，欢迎来电！
http://www.gongwin.com
0755-8252 9775，138 2373 7353，
ryan#gongwin.com
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王先生
- 电话：0755-82529775/83131717/82782277
- 传真：0755-83138727
- 手机：13823737353
- QQ ：
供应Samsung集成电路IC:DTVS205CH201A Tuner
信息内容：DTVS205CH201A:Samsung Front End Module - Tuner ATSC/ NTSC Hybrid half NIM tuner, 54MHZ~863MHZ, Horizontal type, 1 saw, 1amp 我们销售NXP,SAMSUNG,LG的TV TUNER,部分型号如下：DTVS205CH201AFQ1286F/H-5FQ1236P/H-5TDVF-H052F-FFQ1216ME/P H-3 未尽型号，以及索取详细PDF，设计资料等，欢迎来电！ http://www.gongwin.com 0755-8252 9775，138 2373 7353， ryan#gongwin.com。

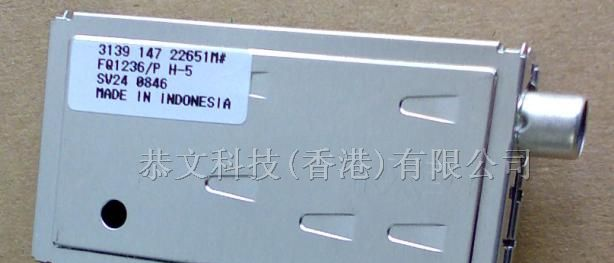

供应NXP集成电路IC:FQ1236/P H-5
