供应3W全彩大功率LED
| 价 格： | 面议 | |
| 型号/规格： | MSHP-03RGB03TBMT | |
| 品牌/商标： | 万润 | |
| 发光颜色： | 全彩 |
| Part Number |
Power | Emitted Color |
Voltage(V) | Current (mA) |
Luminous flux (lm) |
Viewing Angle | ||
| MIN | MAX | 2θ 1/2(°) | ||||||
| MSHP-03RGB03TBMT | 3W | Red | 1.8 | 2.6 | 350 | 30-45 | 140 | |
| Green | 3.0 | 3.5 | 350 | 50-75 | ||||
| Blue | 3.0 | 3.6 | 350 | 10-20 | ||||
| Remarks:The above P/N is the club-footed high-power LED without aluminium base,If the P/N with suffix"-N" means the none-club-footed high-power LED without aluminium base,the P/N with suffix"-S" means the club-footed high-power LED | ||||||||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： lily女士
- 电话：0755-29886863
- 传真：0755-29886865
- 手机：13502807566
- QQ ：
供应绿光SMD 1206贴片LED
信息内容：Part Number Colour WavelengthλD(nm) Lens Type VF(v)@20mA Iv(mcd)@20mA ViewingAngle Min Typ Min Typ 2θ 1/2(°) MS-PL3216CURC Red 630 Water clear 1.8 2.1 130 225 40 MS-PL3216CEC Orange 605 Water clear 1.8 2.1 170 295 40 MS-PL3216SYBC Yellow 590 Water clear 1.8 2.1 385 650 40 MS-PL3216SGBC Kelly 570 Water clear 1.8 2.1 130 225 40 MS-PL3216ZGAC Green 525 Water clear 2.8 3.3 650 1100 40 MS-PL3216SBKC Blue 470 Water clear 2.8 3.3 225 385 40

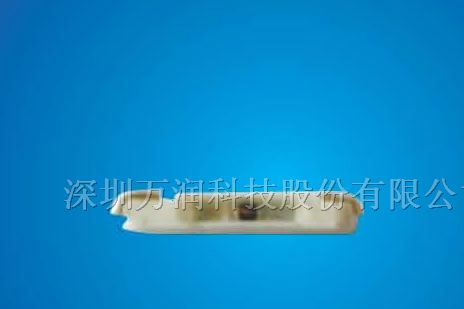

供应贴片LED黄光SMD 020
信息内容：Part Number Colour WavelengthλD(nm) Lens Type VF(v)@20mA Iv(mcd)@20mA ViewingAngle Min Typ Min Typ 2θ 1/2(°) MS-A3806URAC Red 625 Water clear 1.8 2.1 80 130 120 MS-A3806SEBC Orange 605 Water clear 1.8 2.1 250 300 120 MS-A3806SYBC Yellow 590 Water clear 1.8 2.1 200 250 120 MS-A3806SGAC Kelly 570 Water clear 1.8 2.1 62 100 120 MS-A3806ZGAC Green 525 Water clear 2.8 3.3 650 1100 120 MS-A3806VGC Green 515 Water clear 2.8 3.3 650 845 120 MS-A3806QBBC Blue 470 Water clear 2.8 3.3 300 400 120 MS-A3806MWAF-A01 White 0.26/0.26 Yellow Fluorescent 2.8 3.3 1100 1300 120
