供应5W大功率LED 白光
| 价 格： | 面议 | |
| 型号/规格： | MSHP-05PW04E4LCML | |
| 品牌/商标： | 万润 | |
| 发光颜色： | 白光 |
| Part Number |
Power | Emitted Color |
Voltage(V) | Current (mA) |
Luminous flux (lm) |
Viewing Angle | ||
| MIN | MAX | 2θ 1/2(°) | ||||||
| MSHP-05PW04E4LCML | 5W | White | 6.0 | 7.0 | 700 | 200-260 | 120 | |
| MSHP-05PW04M4LCML | 5W | White | 6.0 | 7.2 | 700 | 250-320 | 120 | |
| MSHP-05WW04E4LEML | 5W | Warm White | 6.0 | 7.0 | 700 | 150-200 | 120 | |
| MSHP-05WW04M4LEML | 5W | Warm White | 6.0 | 7.2 | 700 | 210-260 | 120 | |
| Remarks:The above P/N is the club-footed high-power LED without aluminium base,If the P/N with suffix"-N" means the none-club-footed high-power LED without aluminium base,the P/N with suffix"-S" means the club-footed high-power LED | ||||||||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： lily女士
- 电话：0755-29886863
- 传真：0755-29886865
- 手机：13502807566
- QQ ：
供应5W 红光大功率LED
信息内容：PartNumber Power EmittedColor Voltage(V) Current(mA) Luminous flux(lm) ViewingAngle MIN MAX 2θ 1/2(°) MSHP-05R04E3HAMT-N 5W Red 3.8 5.2 700 80-120 140 MSHP-05G04E4HAMT-N 5W Green 6.0 7.0 700 180-220 140 MSHP-05B04E4HAMT-N 5W Blue 6.0 7.2 700 30-60 140 MSHP-05Y04E3HAMT-N 5W Yellow 3.8 5.2 700 80-120 140 MSHP-05A04E3HAMT-N 5W Amber 3.8 5.2 700 80-120 140

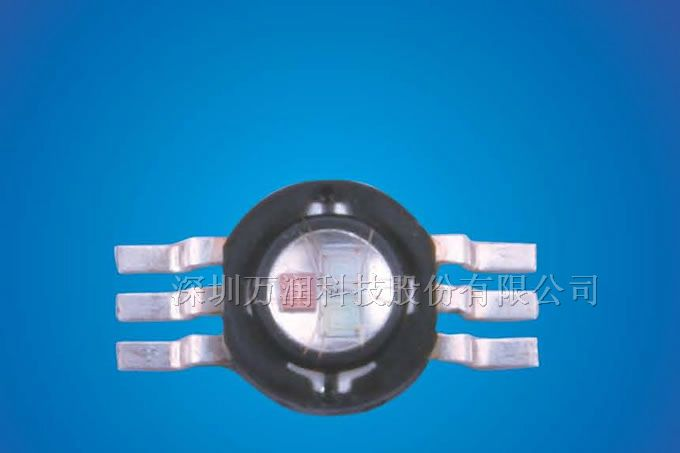

供应3W RGB大功率LED
信息内容：PartNumber Power EmittedColor Voltage(V) Current(mA) Luminous flux(lm) ViewingAngle MIN MAX 2θ 1/2(°) MSHP-03RGB03LFML 3W Red 1.8 2.6 350 30-45 120 Green 3.0 3.5 350 50-75 Blue 3.0 3.6 350 10-20 Remarks:The above P/N is the club-footed high-power LED without aluminium base,If the P/N with suffix"-N" means the none-club-footed high-power LED without aluminium base,the P/N with suffix"-S" means the club-footed high-power LED
