供应LED软灯条
| 价 格： | 面议 | |
| 型号/规格： | MS-F1210RASN003-12 | |
| 品牌/商标： | 万润 |
1.Use high-brightness surface mount LEDs as lighting source on
flexible PCB and with self-adhesive backing
2.Each LED has 120°viewing angle for even light
3. Length of each module can range from 3 LEDs (5cm) to 300LEDs (500cm)
4.Available in various colors
5.Resisting level: IP20
6.DC12V INPUT
| Part Number | LED Quantity(pcs/m) | Emitted Color | Operating voltage | Current | Power | Viewing Angle | Wavelength (nm) Color Temp [K] |
Luminous flux Φv (lm) |
| ( mA ) | ( w ) | (Per LED ) Typ. | Typ. | Typ. | ||||
| MS-F1210RASN003-12 | 60 | Red | 12 | 400 | 4.8 | 120° | 625nm | 85 |
| MS-F1210GASN003-12 | 60 | Green | 12 | 400 | 4.8 | 120° | 525nm | 127 |
| MS-F1210BASN003-12 | 60 | Blue | 12 | 400 | 4.8 | 120° | 470nm | 36 |
| MS-F1210YASN003-12 | 60 | Yellow | 12 | 400 | 4.8 | 120° | 590nm | 80 |
| MS-F1210WASN003-12 | 60 | Cold white | 12 | 400 | 4.8 | 120° | 9000K | 206 |
| MS-F1210WWASN003-12 | 60 | Warm white | 12 | 400 | 4.8 | 120° | 2700K | 179 |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： lily女士
- 电话：0755-29886863
- 传真：0755-29886865
- 手机：13502807566
- QQ ：

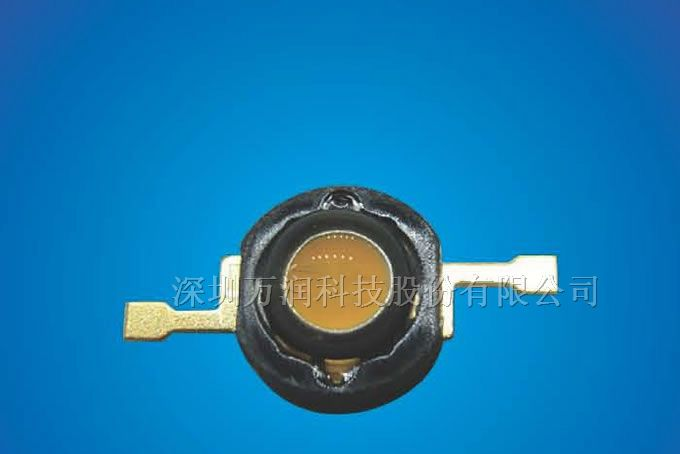

供应1W High Power LED 大功率LED
信息内容：PartNumber Power EmittedColor Voltage(V) Current(mA) Luminous flux(lm) ViewingAngle MIN MAX 2θ 1/2(°) MSHP-01PW01E4LIML-N 1W White 3.0 3.5 350 60-80 120 MSHP-01PW01M4LHML-N 1W White 3.0 3.6 350 80-95 120 MSHP-01PW01S3LHML-N 1W White 2.8 3.3 350 95-110 120 MSHP-01WW01E4LHML-N 1W Warm White 3.0 3.6 350 50-65 120 MSHP-01WW01M4LHML-N 1W Warm White 3.0 3.6 350 70-85 120 MSHP-01WW01S3LHML-N 1W Warm White 2.8 3.3 350 80-95 120 MSHP-01R01E3LGML-N 1W Red 1.8 2.6 350 30-45 120 MSHP-01G01E4LGML-N 1W Green 3.0 3.5 350 50-75 120 MSHP-01B01E4LGML-N 1W Blue 3.0 3.6 350 10-20 120 MSHP-01Y01E3LGML-N 1W Yellow 1.8 2.6 350 30-45 120 MSHP-01A01E3LGML-N 1W Amber 1.8 2.6 350 30-45 120
供应1W大功率LED
信息内容：PartNumber Power EmittedColor Voltage(V) Current(mA) Luminous flux(lm) ViewingAngle MIN MAX 2θ 1/2(°) MSHP-01PW01E4LAMV 1W White 3.0 3.5 350 60-80 90 MSHP-01PW01M4LAMV 1W White 3.0 3.6 350 80-95 90 MSHP-01PW01S3LAMV 1W White 2.8 3.3 350 95-110 90 MSHP-01WW01E4LDMV 1W Warm White 3.0 3.6 350 50-65 90 MSHP-01WW01M4LDMV 1W Warm White 3.0 3.6 350 70-85 90 MSHP-01WW01S3LDMV 1W Warm White 2.8 3.3 350 80-95 90 MSHP-01R01E3LBMV 1W Red 1.8 2.6 350 30-45 90 MSHP-01G01E4LBMV 1W Green 3.0 3.5 350 50-75 90 MSHP-01B01E4LBMV 1W Blue 3.0 3.6 350 10-20 90 MSHP-01Y01E3LBMV 1W Yellow 1.8 2.6 350 30-45 90 MSHP-01A01E3LBMV 1W Amber 1.8 2.6 350 30-45 90 Remarks:The above P/N is the club-footed high-power LED without aluminium base,If the P/N with suffix"-N" means the none-club-footed high-power LED without aluminium base,the P/N with su...
