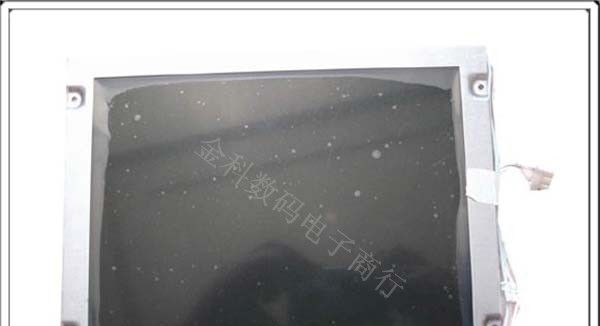

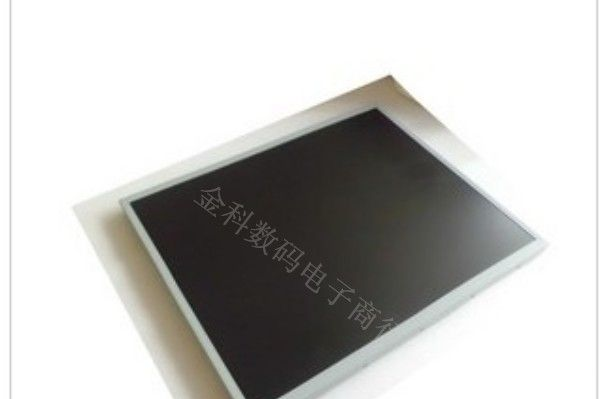

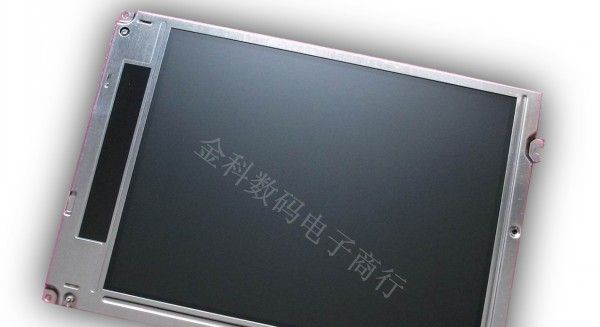

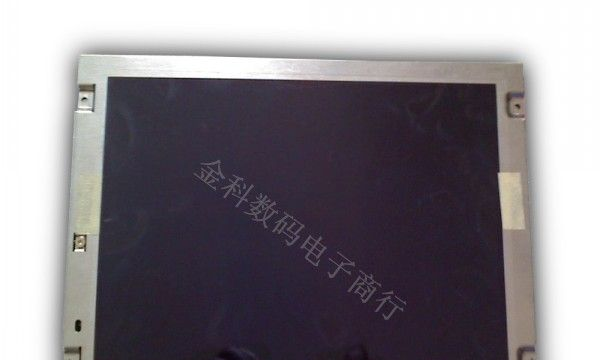

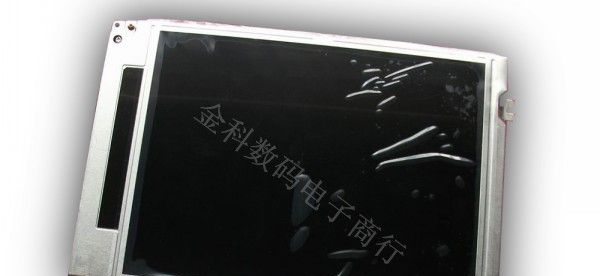

供应夏普液晶屏LQ104S1LG61
| 价 格： | 面议 | |
| 型号/规格： | LQ104S1LG61 | |
| 品牌/商标： | SHARP |
| Attribute Name | Attribute Data |
| Active Area | 211.2 x 158.4 mm |
| Backlight System | 2 × CCFT |
| Brightness | 420 nits |
| Contrast Ratio | 600:1 |
| Description | The LQ104S1LG61 LCD Module features a wide operating temperature range, high color rendition, and an anti-glare and 3H hard coating. |
| Diagonal Size | 10.4 inch (26.0 cm) |
| Display Mode | Normally white |
| Family | LQ104S1LG61 |
| Interface | LVDS: 262,144 colors |
| Operating Temperature Range | -30°C to 80°C |
| Outline Dimensions | 246.5 x 179.4 x 13.7 mm |
| Pixel Format | 800 x 600 |
| Replacement Part(s) | LQ104S1LG6x Series |
| Response Time | 35 ms |
| RoHS | Yes |
| Status | Discontinued |
| Storage Temperature Range | -30°C to 80°C |
| Type | SVGA |
| Viewing Angle - 12 o clock | 50 ° |
| Viewing Angle - 6 o clock | 60 ° |
| Viewing Angle - side to side | 140 ° |
| Attribute Name | Attribute Data |
| Active Area | 211.2 x 158.4 mm |
| Backlight System | 2 × CCFT |
| Brightness | 420 nits |
| Contrast Ratio | 600:1 |
| Description | The LQ104S1LG61 LCD Module features a wide operating temperature range, high color rendition, and an anti-glare and 3H hard coating. |
| Diagonal Size | 10.4 inch (26.0 cm) |
| Display Mode | Normally white |
| Family | LQ104S1LG61 |
| Interface | LVDS: 262,144 colors |
| Operating Temperature Range | -30°C to 80°C |
| Outline Dimensions | 246.5 x 179.4 x 13.7 mm |
| Pixel Format | 800 x 600 |
| Replacement Part(s) | LQ104S1LG6x Series |
| Response Time | 35 ms |
| RoHS | Yes |
| Status | Discontinued |
| Storage Temperature Range | -30°C to 80°C |
| Type | SVGA |
| Viewing Angle - 12 o clock | 50 ° |
| Viewing Angle - 6 o clock | 60 ° |
| Viewing Angle - side to side | 140 ° |
Active Area 211.2 x 158.4 mm
Backlight System 2 × CCFT
Brightness 420 nits
Contrast Ratio 600:1
Description The LQ104S1LG61 LCD Module features a wide operating temperature range, high color rendition, and an anti-glare and 3H hard coating.
Diagonal Size 10.4 inch (26.0 cm)
Display Mode Normally white
Family LQ104S1LG61
Interface LVDS: 262,144 colors
Operating Temperature Range -30°C to 80°C
Outline Dimensions 246.5 x 179.4 x 13.7 mm
Pixel Format 800 x 600
Replacement Part(s) LQ104S1LG6x Series
Response Time 35 ms
RoHS Yes
Status Discontinued
Storage Temperature Range -30°C to 80°C
Type SVGA
Viewing Angle - 12 o clock 50 °
Viewing Angle - 6 o clock 60 °
Viewing Angle - side to side 140 °
