供应MIC单片机PIC18F4520-I/P

价格：		面议
型号/规格：		PIC18F4520-I/P
品牌/商标：		Microchip

详细介绍
企业详情

Parameter Name	Value
Program Memory Type	Flash
Program Memory (KB)	32
CPU Speed (MIPS)	10
RAM Bytes	1,536
Data EEPROM (bytes)	256
Digital Communication Peripherals	1-A/E/USART, 1-MSSP(SPI/I2C)
Capture/Compare/PWM Peripherals	1 CCP, 1 ECCP
Timers	1 x 8-bit, 3 x 16-bit
ADC	13 ch, 10-bit
Comparators	2
Temperature Range (C)	-40 to 125
Operating Voltage Range (V)	2 to 5.5
Pin Count	40

CPU

 Up to 10 MIPS performance
 C compiler optimized RISC architecture
 8 x 8 Single Cycle Hardware Multiply

System

 Internal oscillator support - 31 kHz to 8 MHz, up to 32 MHz with 4X PLL
 Fail-Safe Clock Monitor – allows safe shutdown if clock fails
 Watchdog Timer with separate RC oscillator
 Wide operating Voltage range; 2.0V to 5.5V

nanoWatt Power Managed Modes

 Run, Idle and Sleep modes
 Idle mode currents down to 5.8uA typical
 Sleep mode currents down to 0.1uA typical

Analog Features

 10-bit ADC, 13 channels, 100K samples per second
 Programmable Low Voltage Detection Module
 Programmable Brown-out Reset module
 Two Analog comparators with input multiplexing

Peripherals

 Master Synchronous Serial Port supports SPI ™ and I2C™ Master and Slave Mode
 EUSART module including LIN bus support
 Four Timer Modules
 Up to 5 PWM outputs
 Up to 2 Capture / Compare

深圳市福田区广辉电经营部

公司信息未核实

所属城市：广东深圳
[联系时请说明来自维库仪器仪表网]
联系人： 陈树辉
电话：0755-82534577/13076512089
传真：0755-82534577
手机：13686868407
QQ ：

公司相关产品

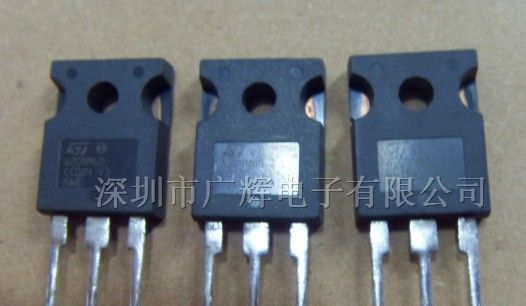

供应600V,20A,0.12Ω,N-CH MOS管STW20NM60

信息内容：

供应600V,20A,0.12Ω,N-CH MOS管STW20NM60 ■ High dv/dt and avalanche capabilities■ 100% avalanche tested■ Low input capacitance and gate charge■ Low gate input resistanceApplications■ Switching applicationsDescriptionThe MDmesh™ is a new revolutionary PowerMOSFET technology that associates the multipledrain process with the company’s PowerMESH™horizontal layout. The resulting product has anoutstanding low on-resistance, impressively highdv/dt and excellent avalanche characteristics. Theadoption of the company’s proprietary striptechnique yields overall dynamic performancethat is significantly better than that of similarcompetition’s products.

详细内容>>

供应DMV1500M双二极管双阻尼二极管

信息内容：

供应DMV1500M双二极管双阻尼二极管1500,6A FEATURES AND BENEFITS n Full kit in one packagen High breakdown voltage capabilityn Very fast recovery dioden Specified turn on switching characteristicsn Low static and peak forward voltage drop for lowdissipationn Insulated version:Insulated voltage = 2500 VRMSCapacitance = 7 pFn Planar technology allowing high quality andbest electrical characteristicsn Outstanding performance of well proven DTVas damper and new faster Turbo 2 600Vtechnology as modulation High voltage semiconductor especially designedfor horizontal deflection stage in standard and highresolution video display with E/W correction.The insulated TO-220AB package includes boththe DAMPER diode and the MODULATION diode.Assembled on automated line, it offers excellentinsulating and dissipating characteristics, thanksto the internal ceramic insulation layer.

详细内容>>
