供应主机板连接器/D-SUB CONN R/A SERIES
| 价 格： | 面议 | |
| 型号/规格： | series NO;320 | |
| 品牌/商标： | 台产 |

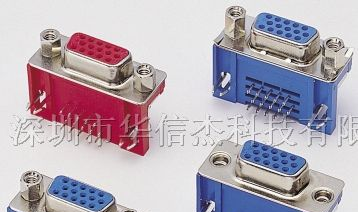

产品描述:D-SUB CONN R/A SERIES
| 产品规格︰ | MATERIAL: Shell: Steel Insulator: PBT, with GF. UL 94V-0 Contact: Brass. Boardlock: Brass Threaded Inserts: Brass FINISH: Shell: Nickel plated. Contact: Gold plated on contact area & Tin/Lead plated on solding end over Nickel under-plating. Boardlocks: Tin/Lead plated on solderingend end over Nickel under-plating. Threaded Inserts: Nickel Plated. SPECIFICATION: Current Rating: 2A Max. Dielectric withstanding Voltage: 1000V AC RMS for 1 minute. Contact Resistance: 20 MΩ Max Insulation Resistance: 1000 MΩ Min. Temperature: -55℃ TO + 105℃ |
| 主要市场︰ | M/B, Monitor, I/O Card |
| 认可标准︰ | UL |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 丘先生/李小姐
- 电话：0755-83261012/83261013
- 传真：0755-83261023
- 手机：
- QQ ：
供应主机板连接器/D-SUB R/A H-D SERIES
信息内容：产品描述:D-SUB R/A H-D SERIES 产品规格︰ MATERIAL:Shell: SteelInsulator: PBT with GF. UL 94V-0Contact: Brass.Boardlock: BrassThreaded Inserts: BrassFINISH:Shell: Nickel plated.Contact: Gold plated on contact area & Tin/Lead plated on solding end over Nickel under-plating.Boardlocks: Tin/Lead plated on soldering end over Nickel under-plating.Threaded Inserts: Nickel Plated.SPECIFICATION:Current Rating: 2A Max.Dielectric withstanding Voltage: 1000V AC RMS for 1 minute.Contact Resistance: 20 MΩ MaxInsulation Resistance: 1000 MΩ Min. Temperature: -55℃ TO + 105℃ 主要市场︰ M/B, I/O Card 认可标准︰ UL
供应主机板连接器/D-SUB R/A 3.08 5.08系列
信息内容：产品描述:D-SUB R/A;3.08 5.08系列 Series No.: 323 -- H/D 3.08mmSeries No.: 326 -- H/D 5.08mm 产品规格︰ MATERIAL:Shell: SteelInsulator: PBT with GF. UL 94V-0Contact: Phosphor Bronze.Boardlock: BrassThreaded Inserts: BrassFINISH:Shell: Nickel plated.Contact: Gold plated on contact area & Tin/Lead plated on solding end over Nickel under-plating.Boardlocks: Tin/Lead plated on soldering end over Nickel under-plating.Threaded Inserts: Nickel Plated.SPECIFICATION:Current Rating: 2A Max.Dielectric withstanding Voltage: 1000V AC RMS for 1 minute.Contact Resistance: 20 MΩ MaxInsulation Resistance: 5000 MΩ Min. Temperature: -55℃ TO + 105℃ 主要市场︰ M/B, I/O Card 认可标准︰ UL
