供应笔记型电脑连接器/SLIM F TYPE SERIES
| 价 格： | 面议 | |
| 型号/规格： | series NO;302,303 | |
| 品牌/商标： | 台产 |
产品描述:SLIM F TYPE SERIES
| ||
|
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 丘先生/李小姐
- 电话：0755-83261012/83261013
- 传真：0755-83261023
- 手机：
- QQ ：
供应笔记型电脑连接器/SLIM D-SUB STYPE SERIES
信息内容：产品描述:SLIM D-SUB STYPE SERIES Series No.: 308 (DIP)Series No.: 309 (SMT) 产品规格︰ MATERIAL:Shell: Steel.Insulator: PCT with GF. UL94V-0Contact: Phosphor Bronze.Boardlocks: Brass.Threaded Inserts: Brass.FINISH:Shell: Nickel plated.Contact: Gold plated on contact area &Tin/lead plated on soldering endover Nickel under-plating.Boardlocks: Tin/lead plated on soldering end over Nickel under-plating.Threaded Inserts: Nickel plated.SPECIFICATION:Current Rating: 2.5A Max.Voltage Rating: 250V AC Max.Delectric Strength: 500V AC RMS for 1 minute.Contact Resistance: 20 mΩ MAX.Insulator Resistance: 1000MΩ min. at 500V DC.Temperature: -55 ℃ to + 105 ℃ 主要市场︰ VGA Card、I/O Card、M/B、N/B 认可标准︰ UL

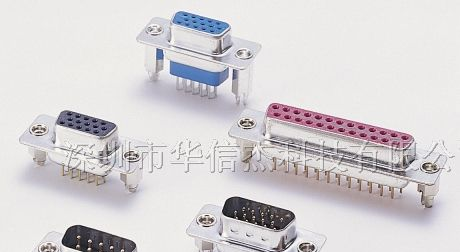

供应主机板连接器/D-SUB PCB SERIES
信息内容：产品描述:D-SUB PCB SERIES MATERIAL:Housing: PBT, with GF. UL 94V-0Contact: Phos. Bronze. or Brass.Shell: SteelRivet: BrassFINISH:Contact: Gold plated over Nickel under-plated.Solder: Sn/Pb Plated over Nickel underplated.Shell: Nickel Plated.Rivet: Nickel Plated. 产品规格︰ Electrical Characteristics:Current Rating: 5 AMPS(Signal Application Only)Dielectric withstanding Voltage: 1000V ACInsulation Resistance: 1000 MΩ Min. Contact Resistance: 20 MΩ MaxOperating Temperature: -55℃ TO + 105℃ 主要市场︰ Monitor 认可标准︰ UL
