MPX5050GP：飞思卡尔压力传感器
| 价 格： | 58.00 | |
| 型号/规格： | MPX5050GP | |
| 品牌/商标： | FREESCALE |
大量现货
Integrated Silicon Pressure Sensor
On-Chip Signal Conditioned,
Temperature Compensated and
Calibrated
The MPXx5050 series piezoresistive transducer is a state-of-the-art
monolithic silicon pressure sensor designed for a wide range of applications,
but particularly those employing a microcontroller or microprocessor with A/D
inputs. This patented, single element transducer combines advanced
micromachining techniques, thin-film metallization, and bipolar processing to
provide an accurate, high level analog output signal that is proportional to the
applied pressure.
Features
• 2.5% Maximum Error over 0° to 85°C
• Ideally suited for Microprocessor or Microcontroller-Based Systems
• Temperature Compensated Over -40° to +125°C
• Patented Silicon Shear Stress Strain Gauge
• Durable Epoxy Unibody Element
• Easy-to-Use Chip Carrier Option
- 所属城市：北京 北京市
- [联系时请说明来自维库仪器仪表网]
- 联系人： 乔小姐/肖先生/韩先生
- 电话：010-13911569774
- 传真：010-13651127427
- 手机：13911569774/13651127427
- QQ ：
MPX12D: 飞思卡尔压力传感器
信息内容：大量现货供应,价格优惠 The MPX12 series device is a silicon piezoresistive pressure sensor providing a very accurate and linear voltage output directly proportional to the applied pressure. This standard, low cost, uncompensated sensor permits manufacturers to design and add their own external temperature compensating and signal conditioning networks. Compensation techniques are simplified because of the predictability of Freescale’s single element strain gauge design. Features Low Cost Patented Silicon Shear Stress Strain Gauge Design Ratiometric to Supply Voltage Easy to Use Chip Carrier Package Options Differential and Gauge Options Durable Epoxy Package
MPXM2010GS: 飞思卡尔压力传感器

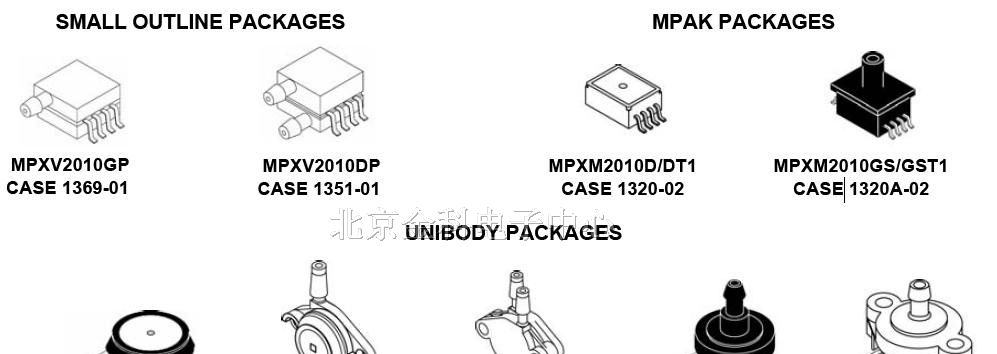

信息内容：大量库存供应 The MPX2010/MPXV2010G/MPXM2010 series silicon piezoresistive pressure sensors provide a very accurate and linear voltage output directly proportional to the applied pressure. The sensor is laser trimmed for precise span, offset calibration and temperature compensation. Also includes a strain gauge and thin film resistor network integrated on each chip. Features Temperature Compensated Over 0° to +85°C Ratiometric to Supply Voltage Single monolithic silicon die (MPX2010/MPXV2010) Differential and Gauge Options (MPX2010/MPXV2010) Single monolithic silicon diaphragm (MPXM2010) Available in Easy-to-Use Tape & Reel (MPXM2010) Gauge Ported & Non Ported Options (MPXM2010)
