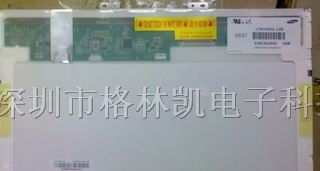

供应15.4寸笔记本液晶屏
| 价 格： | 面议 | |
| 型号/规格： | LTN154X3-L0D | |
| 品牌/商标： | SAMSUNG |
| General Specification | |
| Part number | LTN154X3-L0D |
| Brand | SAMSUNG |
| Screen Size | 15.4"(16 : 10) |
| Resolution | 1280*800 |
| interface connector | 30pin(LVDS) |
| Surface Treatment | glare/anti-glare |
| Backlight | 1CCFL |
| Contrast Ratio(Typical) | 300 |
| Brightness(cd/㎡) | 220 cd/m2(Typ.) |
| Viewing Angle(Up/Down/Left/Right) | 40˚/40˚/15˚/30˚ |
| Pixel Pitch(mm) | 0.2588(H) x 0.2588(V) (TYP.) mm |
| Outline Dimension : | 344.0(H) *222.0(V)*6.2(D, max) mm |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 张小姐
- 电话：0755-61392351
- 传真：0755-61392518
- 手机：15999669531
- QQ ：

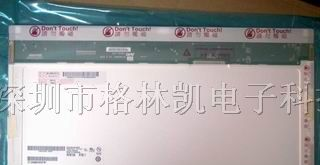

供应15.6寸笔记本液晶屏
信息内容：General Specification Part number B156XW01-V.0 Brand AUO Screen Size 15.6"W Resolution 1366*768(WUXGA) interface connector 30pin(LVDS) Surface Treatment glare/gloss Backlight 1 CCFL Contrast Ratio(Typical) 400 min Brightness(cd/㎡) 220 cd/m2(Typ.) Viewing Angle(Up/Down/Left/Right) 45˚/45˚/15˚/35˚ Pixel Pitch(mm) 0.255X0.255 mm Outline Dimension : 359.3(H) *209.5(V)*6.4(D, max) mm
供应14.1寸笔记本液晶屏
信息内容：General Specification Part number LTN141AT02 Brand SAMSUNG Screen Size 14.1" (16:10) Resolution 1280*800 WXGA interface connector 30pin Surface Treatment matte Backlight CCFL Contrast Ratio(Typical) 300 Brightness(cd/㎡) 190 cd/m2(Typ.) Viewing Angle(Up/Down/Left/Right) 45˚/45˚/15˚/35˚ Pixel Pitch(mm) 0.2370(H) x 0.2370(V) mm Outline Dimension : 319.5(H, typ)*205.5(V, typ)*5.5(D,max) mm
