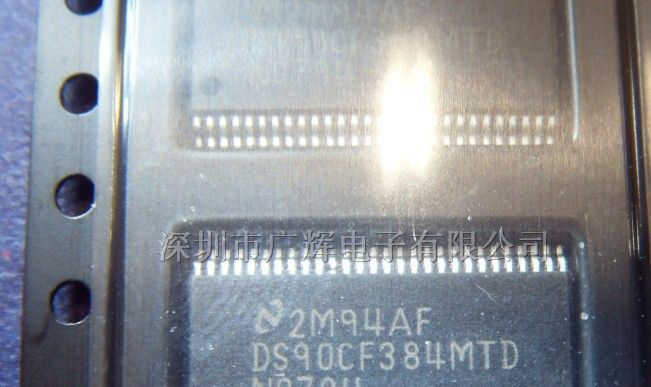

DS90C383/DS90CF384+3.3V Programmable LVDS Transmitter 24-Bit Flat PanelDisplay (FPD) Link—65 MHz, +3.3V LVDS Receiver24-Bit Flat Panel Display (FPD) Link—65 MHz
Featuresn 20 to 65 MHz shift clock supportn Programmable transmitter (DS90C383) strobe select(Rising or Falling edge strobe)n Single 3.3V supplyn Chipset (Tx + Rx) power consumption < 250 mW (typ)n Power-down mode (< 0.5 mW total)n Single pixel per clock XGA (1024x768) readyn Supports VGA, SVGA, XGA and higher addressability.n Up to 227 Megabytes/sec bandwidthn Up to 1.8 Gbps throughputn Narrow bus reduces cable size and costn 290 mV swing LVDS devices for low EMIn PLL requires no external componentsn Low profile 56-lead TSSOP package.n Also available in a 64 ball, 0.8mm fine pitch ball gridarray (FBGA) packagen Falling edge data strobe Receivern Compatible with TIA/EIA-644 LVDS standardn ESD rating >7 kVn Operating Temperature: −40°C to +85°C
