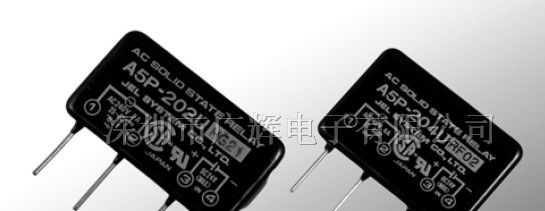

A5P AC SOLID STATE RELAY SERIES |
|
|
|
|
Features 特点 |
2 to 4 Amperes
2~4安培 |
All solid state AC relays for AC motor,solenoid, lamp and heater control
适用于AC发动机,螺线管,照明灯和加热器 |
| Photo isolation 相片隔离机 |
Built in Zero Voltage Circuit & snubber
过零电压导通和制止装置 |
Small size,vertical type
体积极小，垂直形式 |
PWB mounting
PWB结构 | |
dzsc/15/4585/15458558.gif |
| | |
| ■Dimensions(mm) 外形尺寸 |
■ Equivalent Circuit 等效电路 |
| dzsc/15/4585/15458558.gif |
dzsc/15/4585/15458558.gif |
|
MODEL\SIZE |
L(mm) |
H(mm) |
|
A5P-202 |
5.08 |
25 |
|
A5P-203 |
5.08 |
25 |
|
A5P-204 |
5.08 |
30 | |
|
| ■ Ratings 额定参数 |
Items
类别 |
Symbols
符号 |
A5P-202 |
A5P-203 |
A5P-204 |
Units
单位 |
|
Output
输出参数 |
Output Load Voltage 输出负载电压 |
VOTYP |
200~240 |
VACrms |
| Output Load Current 输出负载电流 |
IOTYP |
2 |
3 |
4 |
AACrms |
Peak Repetitive Off State Voltage
非反复峰值电压（阻断电压） |
VDRM |
600 |
V |
|
Input
输入参数 |
Maximum Input Voltage 输入电压 |
VIMAX |
24 |
VDC |
| Input Impedance 输入阻抗 |
ZIN |
1.5 |
kΩ |
|
General
一般参数 |
Dielectric Strength 介质耐压 |
VISO |
4,000(INPUT-OUTPUT) |
VACrms |
| Isolation Resistance 绝缘电阻 |
RISO |
108 (MIN) DC500V
(INPUT-OUTPUT) |
Ω |
| Operating Temperature Range 工作温度范围 |
TOPR |
-20~+80 |
℃ |
| Storage Temperature Range 储存温度范围 |
TSTG |
-30~+100 |
℃ | |
| ■Electrical Characteristics 电气特性 |
Items
类别 |
Symbols
符号 |
A5P-202 |
A5P-203 |
A5P-204 |
Units
单位 |
Output
输出参数 |
Load Voltage Range 负载电压范围 |
VO |
50~264 |
VACrms |
| Off State Leakage Current 关断漏电流 |
ILEK |
5.0(MAX)VO=VOTYP |
mAACrms |
| On State Voltage Drop 接通电压降 |
VSAT |
1.5(MAX)(TOPR=25 ℃) |
VACrms |
| Minimum Load Current 最小负载电流 |
IOMIN |
20 |
mAACrms |
Input
输入参数 |
Input Voltage Range 输入电压范围 |
VI |
3~24 |
VDC |
| Pick-up Voltage 吸合电压 |
VP |
3.0(MAX) |
VDC |
| Drop-out Voltage 释放电压 |
VD |
1.0(MIN) |
VDC |
General
一般参数 |
Responce Time 应答时间 |
TRES |
1/2 CYCLE+1msec(MAX) |
|
| Capacitance 光隔离 |
CIO |
15(MAX)(INPUT-OUTPUT) |
PF |
| Zero Voltage Circuit 零电压导通 |
|
Built In | |
