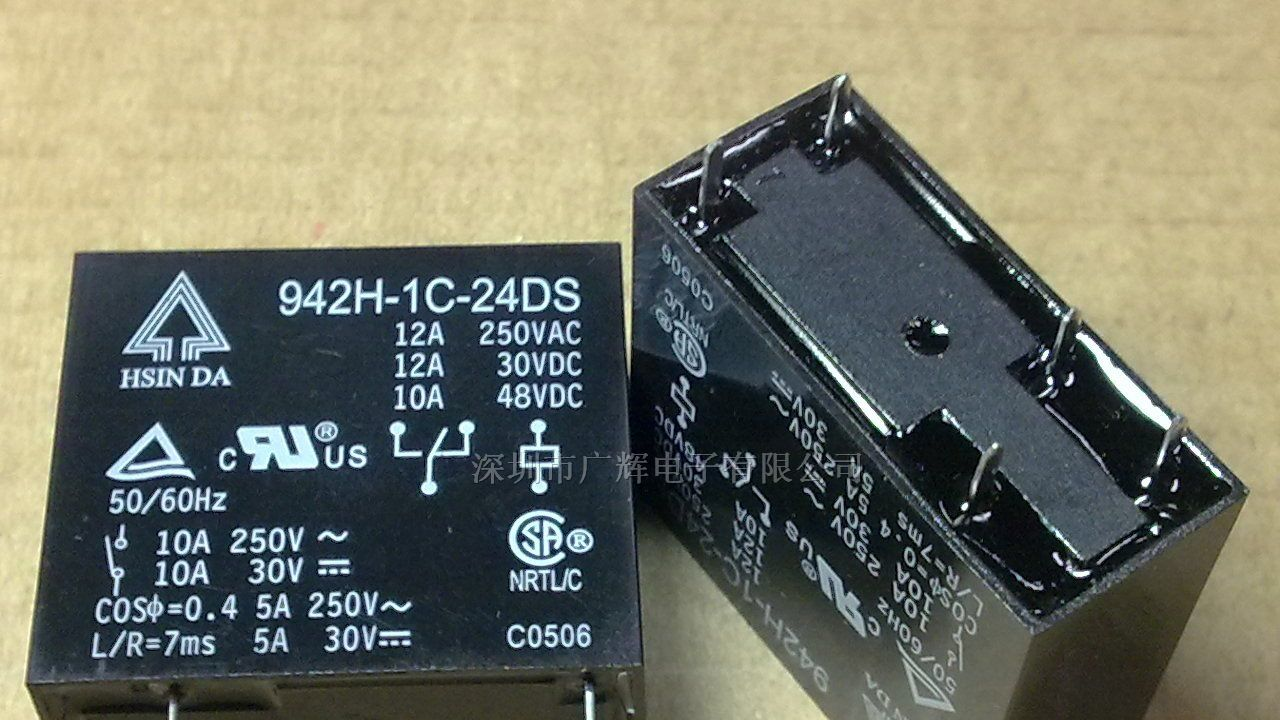

供应欣大大功率继电器942/29.5*12.8*25.6
| 价 格： | 面议 | |
| 型号/规格： | 942H-1C-5DS/942H-1C-9DS/942H-1C-12DS/942H-1C-24DS | |
| 品牌/商标： | HSINDA |
|
SeriesNo. 942 Series Relay | |
|
UL, CSA , TUV & CQC safety approval. | |
| ORDERING INFORMATION | ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
|
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：
供应12A大功率继电器942H-1C-12DS/942H-1C-24DS
信息内容：FEATURES● UL, TUV & CQC safety approval.● Standard type & High sensitivity type available.● UL Class F (155℃) coil insulation type available.● TV Rated (TV-3, TV-5 or TV-8) available.● Heavy current up to 20Amps.● Insulation distance: 8mm.●Dielectric strength: 5,000 VAC.● High sensitivity in small package.● Nominal power 540mW～720mW.● Operating power 300mW～410mW
供应干簧式继电器S1A050099
信息内容：S Type Type Number contact FORM Contact Resistance(mohm Max) Insulation Resistance (ohm min) Power Consumtion (VA max) Maximum Switching Voltage Maximum Switching Current Minimum Breakdown Voltage Nominal Voltage Must Operate(VDC) Coil Resistance e+/-10% Must Release(VDC) Circuit UL S1A050000 1A SPST 100 100G 10 200 VDC 0.5A 1000 VDC 5 3.75 500 1.0 dzsc/15/4584/15458481.JPG ◎ S1A120000 1A SPST 100 100G 10 200 VDC 0.5A 1000 VDC 12 9 1000 1.2 dzsc/15/4584/15458481.JPG ◎ S1A240000 1A SPST 100 100G 10 200 VDC 0.5A 1000 VDC 24 18 2000 2.4 dzsc/15/4584/15458481.JPG ◎ S1A050099 1A SPST 100 100G 10 200 VDC 0.5A 1000 VDC 5 3.75 1000 1.0 dzsc/15/4584/15458481.JPG ◎ S1A120099 1A SPST 100 100G 10 200 VDC 0.5A 1000 VDC 12 9 3000 1.2 dzsc/15/4584/15458481.JPG ◎ S1A120098 1A SPST 100 100G 10 200 VDC 0.5A 1000 VDC 12 9 2000 1.2 dzsc...
