供应 霍尔传感器 线性型 开关SS49E

价 格: 面议
型号/规格:SS49E
品牌/商标:ALLEGRO

dzsc/13/4516/13451616.jpg


SS49E Series Economical Linear Position Sensors; radial lead IC package

Actual product appearance may vary.


Features
  • Miniature construction
  • Power consumption of 6 mA at 5 Vdc for energy efficiency
  • Low-voltage operation down to 3 Vdc
  • Single current sourcing output
  • Linear output for circuit design flexibility
  • Low noise output virtually eliminates the need for filtering
  • Thin film resistors for a stable and accurate output
  • Temperature range of -40 °C to 100 °C [-40 °F to 212 °F]
  • Responds to either positive or negative gauss
Potential Applications
  • Current sensing
  • Motor control
  • Position sensing
  • Magnetic code reading
  • Rotary encoder
  • Ferrous metal detector
  • Vibration sensing
  • Liquid level sensing
  • Weight sensing

深圳市泰通达电子有限公司
公司信息未核实
  • 所属城市:广东 深圳
  • [联系时请说明来自维库仪器仪表网]
  • 联系人: 林先生/李小姐
  • 电话:0755-33062282/33062283
  • 传真:0755-33062281
  • 手机:13728992566
  • QQ :QQ:790630449QQ:474066857
公司相关产品

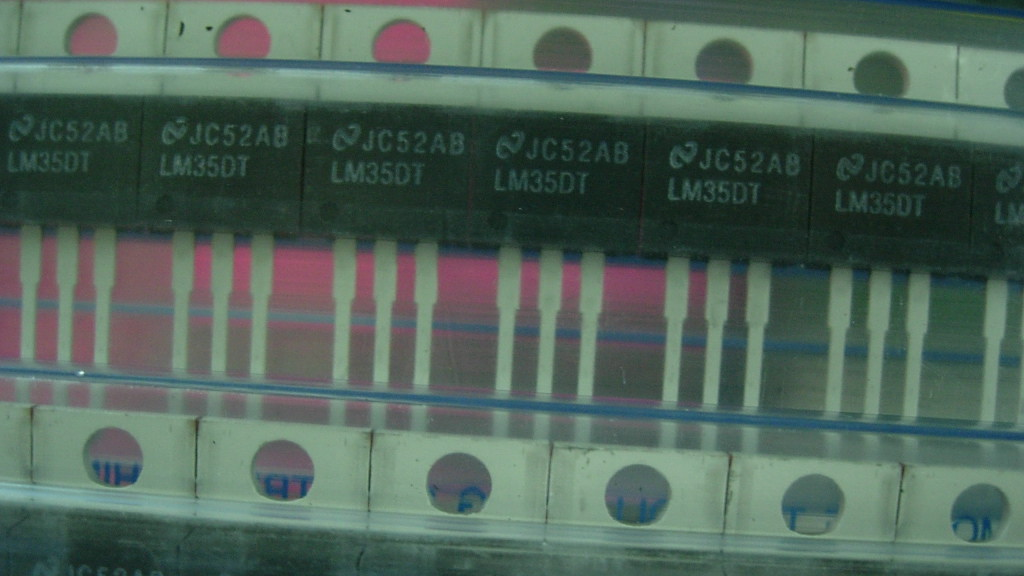

供应 温度传感器 lm35dt

信息内容:

LM35DT属于高性能摄氏温度传感器,一般应用于音响等领域Featuresn Calibrated directly in ° Celsius (Centigrade)n Linear + 10.0 mV/°C scale factorn 0.5°C accuracy guaranteeable (at +25°C)n Rated for full −55° to +150°C rangen Suitable for remote applicationsn Low cost due to wafer-level trimmingn Operates from 4 to 30 voltsn Less than 60 μA current drainn Low self-heating, 0.08°C in still airn Nonlinearity only ±1⁄4°C typicaln Low impedance output, 0.1 W for 1 mA loadAbsolute Maximum Ratings (Note 10)If Military/Aerospace specified devices are required,please contact the National Semiconductor Sales Office/Distributors for availability and specifications.Supply Voltage +35V to −0.2VOutput Voltage +6V to −1.0VOutput Current 10 mAStorage Temp.;TO-46 Package, −60°C to +180°CTO-92 Package, −60°C to +150°CSO-8 Package, −65°C to +150°CTO-220 Package, −65°C to +150°CLead Temp.:TO-46 Package,(Soldering, 10 seconds) 300°CTO-92 an...

详细内容>>

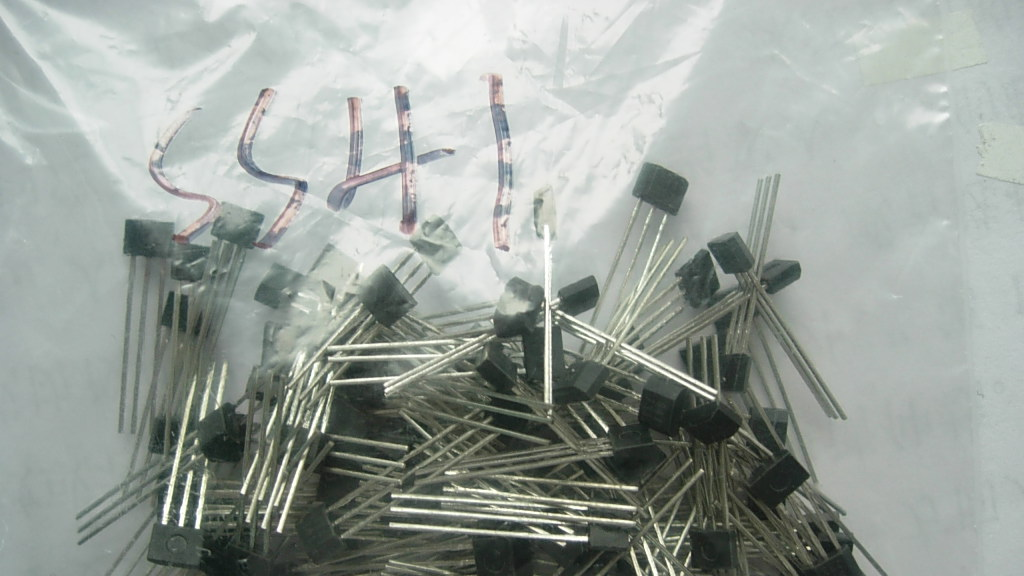

供应 HONEYWELL SS41 霍尔传感器

信息内容:

特点: ● 3.8-30VDC供电 ●数字电流沉输出 ● 3针一列 PCB引脚 ●方块霍尔设计消除了机械压力效应 ●磁特性温度补偿 ●可定制特殊的动作 /释放点 ●双极,单极,锁存型 ●很高的输出电流能力——电流 50mA ●动点 /释放点对称于零点高斯(双极锁存) ●工作温度范围 -40~150℃ ●封装材料:Plaskon 3300H ●表面封装型号:SS400-S(切短或整形的引脚) SS400内含整个温度范围的热平衡集成电路,负的温度补偿特性能与低成本磁钢负温度系数为匹配带宽间隙调整提供了 SS400 在 3.8~30VDC电源电压范围内特别稳定的工作特性。 SS400能连续输出20mA电流,电流为 50mA. 注:当锁存型突然掉电后,其输出在上电后可能改变状态,在足够强的磁场中,传感器的输出由所在磁场决定

详细内容>>
