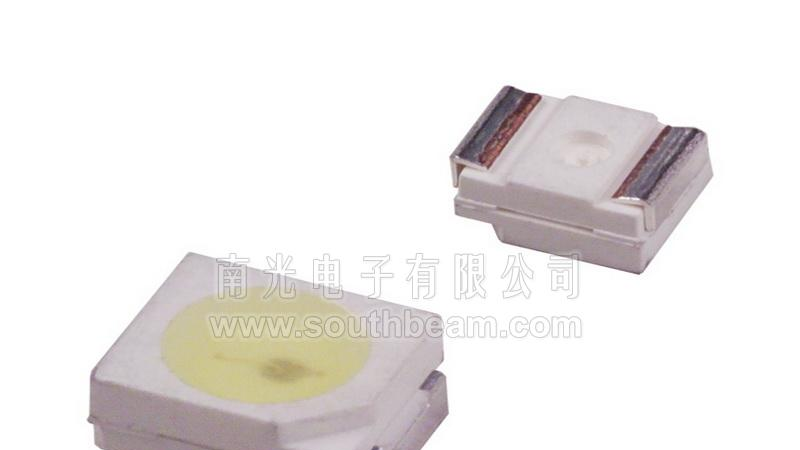

LED0603发白色贴片发光二极管
| 价 格： | 面议 | |
| 型号/规格： | LWQ183 | |
| 品牌/商标： | OSRAM | |
| 封装形式： | 树脂封装 | |
| 环保类别： | 无铅环保型 | |
| 安装方式： | 贴片 | |
| 功率特性： | | |
| 频率特性： | | |
| 发光颜色： | 白 | |
| 外形尺寸： | mm | |
| 包装方式： | 卷带编带包装 |
LWQ183 Package: SMT package 0603, colorless diffused resin Feature of the device: smallest package 1.6 x 0.8 x 0.8 mm Color coordinates: x = 0.31, y = 0.28 acc. to CIE 1931 (white) color temperature Typ.: 7300 K Color reproduction index: 80 Viewing angle at 50 % IV: horizontal 150°, vertical 155° Typ. efficiency: 7.0 lm/W white Grouping parameter: luminous intensity color coordinates forward voltage Soldering Technique: IR reflow soldering ESD-withstand voltage: up to 2 kV acc. to JESD22-A114-B 本公司提供大量国内外LED各大品牌,规格书,相片,技术资料,请登陆:www.southbeam.com
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈创光
- 电话：755-83986189
- 传真：755-83012828
- 手机：13823606811
- QQ ：

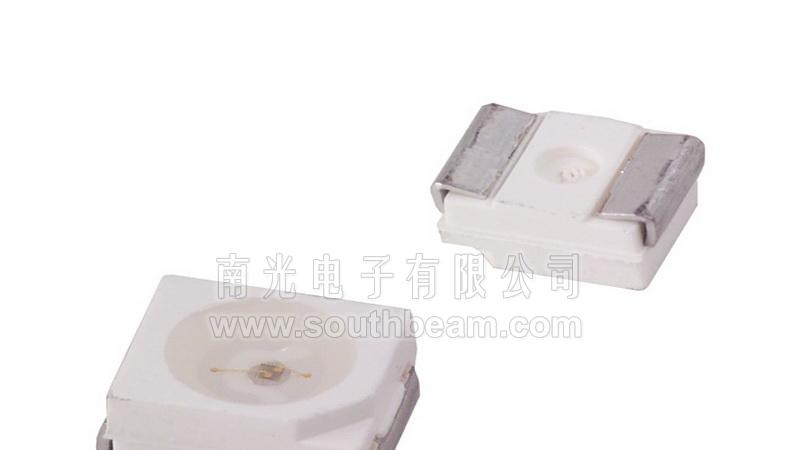

LED1210发白色贴片发光二极管
信息内容：LWT673-Q2R2 Hyper TOPLED?, white, colored diffused - Lead (Pb) Free - RoHS compliant Package: white P-LCC-2 package colored diffused resin Feature of the device: extremely wide viewing angle ideal for backlighting and coupling in light guides Color coordinates: x = 0.33, y = 0.33 acc. to CIE 1931 (white) color temperature Typ.: 6500 K Color reproduction index: 80 Viewing angle at 50 % IV: 120°, (Lambertian Emitter) Typ. efficiency: 6.0 lm/W white Grouping parameter: luminous intensity color coordinates Soldering Technique: TTW soldering, IR reflow soldering ESD-withstand voltage: up to 2 kV acc. to JESD22-A114-D 本公司提供大量国内外LED各大品牌,规格书,相片,技术资料,请登陆:www.southbeam.com
LED1210发橙色贴片发光二极管欧西朗
信息内容：LOT670-J1K1 品牌 : OSRAM 描述 : LOT670-J1K1 TOPLED?, orange, colorless clear - Lead (Pb) Free - RoHS compliant Package: white P-LCC-2 package colorless clear resin Feature of the device: extremely wide viewing angle ideal for backlighting and coupling in light guides Dominant Wavelength: 606 nm orange Viewing angle at 50 % IV: 120°, (Lambertian Emitter) Typ. efficiency: 1.5 lm/W orange Grouping parameter: luminous intensity wavelength Soldering Technique: TTW soldering, IR reflow soldering ESD-withstand voltage: up to 2 kV acc. to JESD22-A114-D 本公司提供大量国内外LED各大品牌,规格书,相片,技术资料,请登陆:www.southbeam.com
