温度探头RT10 017-507766
- 价 格：
- 691.00
- 型 号：
- RT10 017-507766
产品介绍

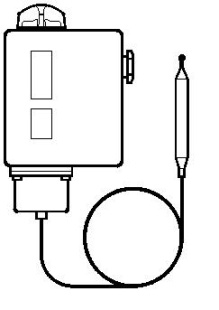

温度探头RT10 017-507766
| 品牌 | DANFOSS丹佛斯 | 型号 | RT10 017-507766 |
| 种类 | 温度 | 制作工艺 | 集成 |
| 输出信号 | 数字型 | 防护等级 | IP66 |
017-507766
Cable connection: Pg 13.5. Cable entry for cables 6 - 14 mm dia.Enclosure: IP 66 to IEC 529, except for versions with ext. reset which are to IP 54.Ambient temperature:–50 - +70°C for thermostat...Characteristic | Value |
| Type | RT10 |
| Weight | 0.960 Kg |
| Ambient temperature [°C] | -50 - 70 °C |
| Ambient temperature [°F] | -58 - 158 °F |
| Capillary tube length [in] | 78 3/4 in |
| Capillary tube length [mm] | 2.000 mm |
| Charge type | State Vapour |
| Contact function | SPDT |
| Contact rating | AC1=10 A, 400 V |
| Contact rating | AC15=3 A, 400 V |
| Contact rating | AC3=4 A, 400 V |
| Contact rating | DC13=12 W, 230 V |
| Contact rating | LR=28 A, 400 V |
| Differential at max. range setting [K] | 1,0 - 3,0 K |
| Differential at min. range setting [K] | 1,7 - 7,0 K |
| Enclosure rating | IP66 |
| Max. sensor temperature [°C] | 150 °C |
| Max. sensor temperature [°F] | 302,0 °F |
| Pack format | Multi pack |
| Quantity per pack format | 15 pc |
| Sensor size (diam. x L) [in] | 3/8 x 3 1/8 in |
| Sensor size (diameter x length) [mm] | 9.5 X 80 mm |
| Sensor type | Remote Sensor w.capillary tube |
| Temperature range [°C] | -60 - -25 °C |
| Temperature range [°F] | -76 - -11 °F |
