temperature sensor传感器

temperature sensor

It is a temperature sensing element that is used for room thermostat, and also can be widely used for other industries which need controlling constant temperature and connecting signal device actuated by temperature changed.
Technical specifications
1.Diaphragm : φ38mm or φ51mm , easy for installation, sensible and reliable
2.Adjusting temperature range  : 5-30℃
3.Temperature differential : 1.5℃
4.Ambient temperature:  Max.60℃
5.It can also be manufactured according to customers’sample or specific requirement

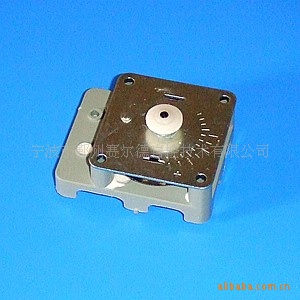

JX Series Temperature Adjusting & Controlling Elements
It comprises of 3 parts (adjusting part, temperature sensing part, snap-action switch ) and  is used for room thermostat, it also can be used in other industries which need controlling constant temperature. When temperature increases or decreases ,temperature detecting/sensing element can expand or shrink axially ,and this can push or pull the spring of snap-action switch , so it can automatically control and maintain the ambient temperature at a set-point.
The screw adjusting part is used to set required temperature. It can adjust the temperature between 5～30℃ for commercial air conditioners. For the other purposes, it can adjust the temperature between -15 and 40℃.
Technical specification
1.Adjusting temp.  : 5～30℃
2.Temp.tolerance : 1.5℃
3.Ambient temperature : Max.+60℃
4.Rated power supply: 220VAC±10% 50/60Hz, also applicable to 110V/24V
5.Load current : ＜3A resistive load ; ＜16A resistive load
6.Service life :Over 100,000 times
