Your Multi-Purpose   Signal Calibrator

Now Measure Pressure!

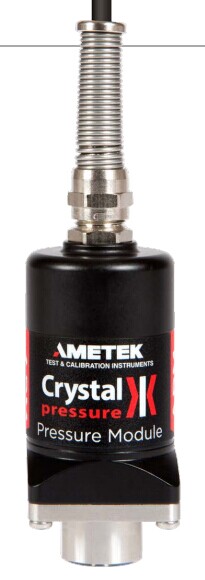

THE CRYSTAL APM CPF SERIES pressure module, with integrated CPF
female connection, offers the functionality and flexibility to perform
pressure calibrations with a multifunction signal calibrator. In addition,
when connected to a hand-held pressure calibrator, the APM can
expand its pressure range.
The APM is engineered to deliver the same high level of accuracy
whether in the lab or in the field. Combined with calibrators and pump
systems, the Crystal APM is a powerful calibration tool.

Key Features
> Accuracies to 0.025% of Reading.
Performance to meet almost any calibration and measurement task.
>  Seven Ranges Available.
Full coverage from vacuum to 15 000 psi /1000 bar.
> Rugged Construction.
Machined aluminum housing. Engineered for rough field use–
almost unbreakable.
>  Self-Contained, Intelligent Module.
Calibration data is stored in the module, so any module can be combined with any compatible JOFRA indicator. No need to “calibrate” the
module to an indicator.
Compatible with your existing JOFRA Calibrator
When combined with these JOFRA calibrators, the APM is a powerful calibration tool.
ASC300/ASC301/ASC321/ASC-400/ASC-400

Lab Accuracy in the Field

Active Temperature Compensation
Count on the same accuracy at any temperature, between -20 and 50° C.

Calibrate with Confidence Anywhere
Take measurements with up to 0.025% of reading accuracy.
Crystal Engineering calibration facilities are A2LA accredited, (# 2601.01)
which is internationally recognized by ILAC

Pressure Calibration with a Signal Calibrator
The Crystal APM converts a JOFRA ASC400 multifunction signal calibrator
to a full-featured pressure calibrator. Seamlessly integrated with AMETEK
pump systems, an APM combined with an ASC- 400 provides the benefits
of a host of features like leak-test, pressure-switch calibration, scaling,
% error calculation, and more!

Specifications

Accuracy
30, 100 and 300 psi
3, 10 and 30 bar
300 kPa, 1 and 3 MPa
0 to 30% of Range......±(0.0075% of Full Scale)
30 to 110% of Range....±(0.025% of Reading)
Vacuum.................For 100 psi / 10 bar / 1 MPa and lower:
±(0.06% of Full Scale*)
For 300 psi / 30 bar / 3 MPa:
±(0.06% of Full Scale*) ±1 LSD
* Full Scale = -14.5 psi / -1.0 bar /-100.0 kPa.
1000 and 3000 psi
100 and 300 bar
10 and 30 MPa
0 to 30% of Range......±(0.015% of Full Scale)
30 to 110% of Range....±(0.05% of Reading)
10 000 and 15 000 psi
700 and 1000 bar
70 and 100 MPa
0 to 30% of Range......±(0.03% of Full Scale)
30 to 110% of Range....±(0.1% of Reading)
Includes all effects of linearity, hysteresis, repeatability, temperature,
and stability for one year.
All models indicate vacuum, but vacuum specification applies only where
specified.
Not recommended for continuous use at high vacuum. Refer to XP2i-DP
data sheet for gauges that are intended for continuous high vacuum use.
Sensor
Wetted Materials........(wrench tight) 316 stainless steel
(finger tight) 316 stainless steel
and Viton® (internal o-ring)
Diaphragm Seal Fluid...Silicone Oil
Connection.............Crystal CPF Female
All welded, with a permanently filled diaphragm seal.
Metal to metal cone seal; O-ring can be removed if necessary.
1/4" male NPT adapter is included unless BSP, M20 or 15KPSI is specified.
1/4" medium pressure tube system is compatible with HIP LM4 and LF4
Series, Autoclave Engr SF250CX Male and Female Series.
Output
Pressure Resolution.....up to 5 digits
Display Update.........up to 10 per second
Pressure resolution is the maximum resolution available.
The resolution of your JOFRA device may be different.
Communication
Connector..............5-pin LEMO
Serial...................9600 baud, 8 data, no parity, 1 stop
Protocol................ASCII command language
Pressure Overload
Overload Alarm.........“+OL” in display at 110% F.S.
Operating Temperature
Temperature Range.....-20 to 50° C (-4 to 122° F)
< 95% RH, non-condensing. No change in accuracy over operating
temperature range. Gauge must be zeroed to achieve rated specification.
Applies to all modules.
Storage Temperature
Temperature Range.....-40 to 75° C (-40 to 167° F)
Enclosure
Dimensions.............1.4 x 1.4 x 3.0 in
(35.5 x 35.5 x 76.2 mm)
Weight. . . . . . . . . . . . . . . . . .0.51 lbs (231.0 g)

Accuracies, Ranges, and Resolutions
