Internal and external measurements on workpieces < 100 mm

Linear 100is a universal, user-friendly length measuring instrument for rapid, precise internal and external measurements up to 100 mm, directly in the manufacturing environment. The unit's simple design makes it possible to carry out measurements in no time at all and adapt quickly to new measurement tasks.

TheLINEAR 100is very flexible when it comes to external measurements, with a direct measuring range of up to 50 mm (2 in) and an application range of up to 100 mm (4 in).
For internal measurements, the application range is 15 mm to 100 mm (0.59 in to 4 in), with the additional option of 6 mm to 100 mm (0.24 in to 4 in). It is possible to switch from internal to external measurements at any time without having to recalibrate.
The instrument can be used to measure lengths and diameters. This allows multifaceted measuring tasks to be solved, for example on the dimension over two balls on outer gears.

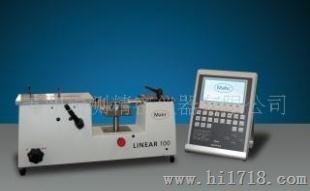

LINEAR 100measuring station consisting of:

Linear 100universal measuring instrument including height adjustable 70 x 70 mm object table with measuring and evaluation unit (MarCheck) and connection cable. Display software switches between English and German with RS 232 interface
- Measuring anvils for internal measurements from 15 mm to 100 mm and external
  measurements from 0 mm to 100 mm
- Measuring anvils for external measurements, planar diameter of 6.5 mm
- Cardboard packaging

Key features at a glance:

• Damped measuring spindle with 2 pre-selectable measuring forces
• Measuring force remains virtually constant over the entire measuring range
• Direct measuring range of 50 mm
• Integrated measuring system based on the Abbe principle
• Infinitely adjustable measuring tables for precise measuring position adjustment
• Combined internal/external measurement possible without recalibration
• Easily exchangeable anvils which can be tailored to suit the specific measurement task
• Solid cast body to avoid stresses and twisting errors from the outset
• MarCheck measuring and evaluation unit (with optional stand)
• The "MarCheck" with 3 channels, with USB connection for printer or stick, with USB connection to PC RS 232 interface, making it easy to transfer measured values to PCs
• Optoface software (optional) allows measured values to be transferred to all Windows programs (e.g. Microsoft Excel)
• Various accessories are availalbe on request
