英国TTi TGR6000 合成射频号发生器
- 价 格：
- 电议
- 型 号：
- TGR6000
- 品牌/商标：
- 英国TTi
- 企业类型：
- 贸易商
- 新旧程度：
- 全新
- 原产地：
- 英国
英国TTi TGR6000 合成射频号发生器
英国TTi TGR6000 合成射频号发生器

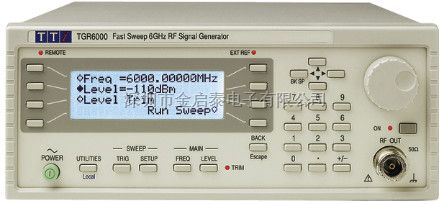

Aim-TTi TGR6000 6GHz RF Signal Generator
The TGR6000 is a low-cost 6GHz signal generator intended for CW (carrier wave) applications where modulation is not required. Low phase noise is matched by low leakage, low residual FM and spurii. The internal timebase has a 1ppm stability, and an external frequency reference can be used. Sophisticated sweep functions enable the frequency and/or amplitude to be swept over the full range of each in a single sweep.
|
More Information: Larger Image Data Sheet |
| Frequency | |
| Frequency Range | 10MHz to 6000MHz |
| Setting Resolution | 10Hz by direct keyboard entry, or in user-set increments of 10Hz to 999?999MHz by rotary control or increment–decrement keys |
| Phase Noise | 500MHz Carrier: <-110dBc/Hz @ 20kHz offset; <-120dBc/Hz @ 100kHz |
| 3GHz Carrier: <-95dBc/Hz @ 20kHz offset; <-110dBc/Hz @ 100kHz offset | |
| 6GHz Carrier: <-89dBc/Hz @ 20kHz offset; <-104dBc/Hz @ 100kHz offset | |
| Residual FM | Equivalent peak deviation for 300Hz to 3.4kHz B/W: 12Hz at 500MHz carrier |
| Settling Time | <8ms to settle within 100Hz or 0.1ppm of final frequency, if greater |
| Reference Frequency | Internal or External (via rear panel BNC) |
| Internal Accuracy | +/- 1 ppm over 15°C to 30°C; +/- 2 ppm over 5°C to 40°C |
| Internal Stability | < +/-1ppm/year ageing |
| Internal Ref. Out | 10MHz from 50 Ohms, amplitude 2V pk-pk into 50 Ohms |
| External Ref In | 10MHz into 50 Ohms, amplitude 2V pk-pk to 5V pk-pk |
| Output Level | |
| Level Range | –110dBm to +7dBm (0.1μV to 500mV into 50 Ohms) |
| Setting Resolution | 0.1dB (or 0.01μV to 1mV) by direct keyboard entry, or in user-set increments of 0.1dB to 100dB (or 0.01μV to 100mV) |
| Accuracy | Better than ± 2dBm |
| Harmonics | <-25dBc at +7dBm. <-30dBc@levels <=0dBm 30 to 6000MHz, <-25dBc@levels <=0dBm 10 to 30MHz |
