9408型 电极传感器

品牌	ABB	型号	9408,9408-80
类型	便携式溶氧仪	测量范围	见参数表
精确度	见参数表	分辨率	见参数表
尺寸	见参数表（mm）

Dissolved Oxygen System Cartridge 9408-80

The Dissolved Oxygen System Cartridge 9408-80 is a compact and robust flow-through system and is used to measure high levels of dissolved oxygen in process and waste waters. They complement the highly successful 9408 floating ball, dip and submersible systems and employ the well-proven 8012 oxygen sensor. A key feature is the bayonet snap-fit connection which makes removal for calibration very easy and convenient. The typical life of the 8012 oxygen sensor is 12 months, although many users benefit from a much longer operational period.The sensor is extremely rugged and can be used in the most demanding environments.

• Used up to 20 ppm or 200 % saturation
• Bayonet-fit connection makes removal simple
• Choice of process connections in BSP or NPT
• Replaceable oxygen sensor simplifies maintenance
• Water-wash option - keeps the sensor in optimum condition

Dissolved Oxygen System 9408

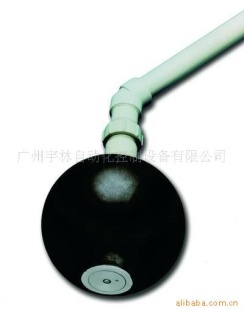

The 9408 Floating Ball Dissolved Oxygen System comprises a flat-ended sensor mounted into a relatively large diameter spherical flotation collar. This form of construction presents to the sample a surface on which it is difficult for rags and other large solids to lodge. For more demanding applications, on-line cleaning is available using the water wash option.

• Reduced sensor fouling design
• Low maintenance, long-life sensor
• Complete systems and kit versions available
• On-line water wash option
